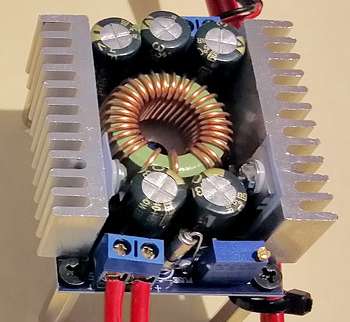

DC-DC 12A Stepdown Voltage Converter

Product may differ slightly from picture.

Provide high-current power to your single-board computer or other electronics project using this high-quality DC-DC stepdown voltage converter.

Great option for powering ODROID-XU4 and other high-performance boards from a suitable battery source!

KEY FEATURES

• Input voltage: 4.5~30V (do not exceed 30V)
• Output voltage:0.8~30V continuously adjustable (default output 5V)
• Output current: 0~12A
• Operating temperature: -40'C~+85'C
• Operating frequency: 300KHz
• Conversion efficiency: Up to 95% (efficiency and input and output voltage, current, pressure related)
• Short-circuit protection: Yes (limit current 14A)
• Over-temperature protection: Yes
• Input Reverse Polarity Protection: No
• Installation: four M3 screws
• Connection: Solderless terminals
• Module dimensions: 60 x 51 x 22mm
• Weight: 2.68oz. (76g)

Warranty is valid for two weeks, starting upon date of receipt.
