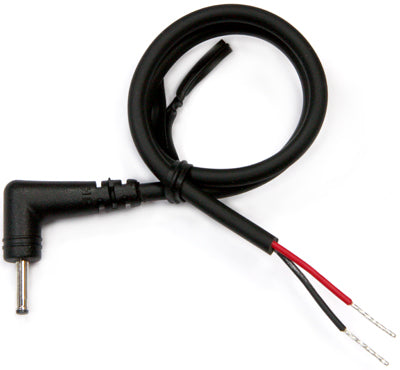

DC Plug and Cable Assembly 2.5mm L-Type [0038A]



  • Inner(+) diameter 0.8mm and outer(-) diameter 2.5mm
  • 270mm long (approx.)
  • Max current rating: 2.5A @ 5VDC
  • 90-degree L-Type connector


  • Center is positive (RED wire) and outer shield is negative (BLACK wire)
  • Compatible with C1 / C1+ / U3 / U2 / X2 / VU / W Docking Board
  • If used with the C1+ in a Raspberry Pi case, a hole will need to be made in the case to access the 2.5mm power connector. However, the USB OTG port is available and accessible for power on the C1+ in a Raspberry Pi case.
