USB Audio Adapter
Sold out
Original price
$4.95
-
Original price
$4.95
Original price
$4.95
$4.95
-
$4.95
Current price
$4.95
Availability:
Out of stock!
Reach out to us for more information

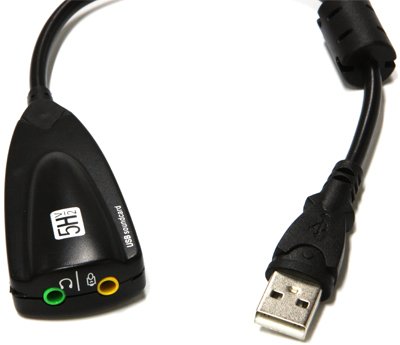

This USB Audio Adapter should work with any system, but requires configuration through ALSA or other sound drivers.

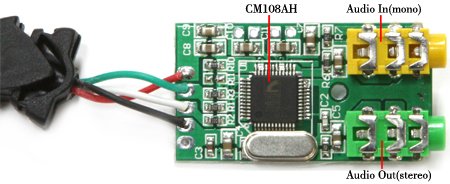

The CM108AH is a highly integrated single chip USB audio solution. All essential analog modules are embedded in the CM108AH, including dual DAC and headphone amplifier, ADC, microphone booster, PLL, regulator and USB tranceiver.
KEY FEATURES
- USB 2.0 full-speed (12Mbps) specification
- USB audio device class specification 1.0
- USB bus-powered mode
- USB-Type A connector
- Stereo output jack (3.5mm)
- Mono microphone input jack (3.5mm)
- 60 x 30 x 15mm approximate dimensions
- 130mm cable length
- 33g weight
NOTES
- Configuring ALSA on Ubuntu to use the USB Audio Adapter can be found on ODROID Magazine June 2015 issue, page 37. (Should be similar for Debian, Raspbian, Bananian, etc.)
- Systems with only a microUSB port available will need a USB OTG adapter cable to use this item.
COMPATIBILITY
- ODROID-C1, XU4 and other SBCs and legacy systems. May require configuration in the host OS.
LINKS
- ameriDroid Learn (Disassembly) - https://ameridroid.com/blogs/ameriblogs/video-usb-audio-adapter-disassembly
- ameriDroid Learn (Pin Mapping) - https://ameridroid.com/blogs/ameriblogs/video-usb-audio-adapter-mapping
Warranty is valid for two weeks, starting upon date of receipt.
SKU E0069
