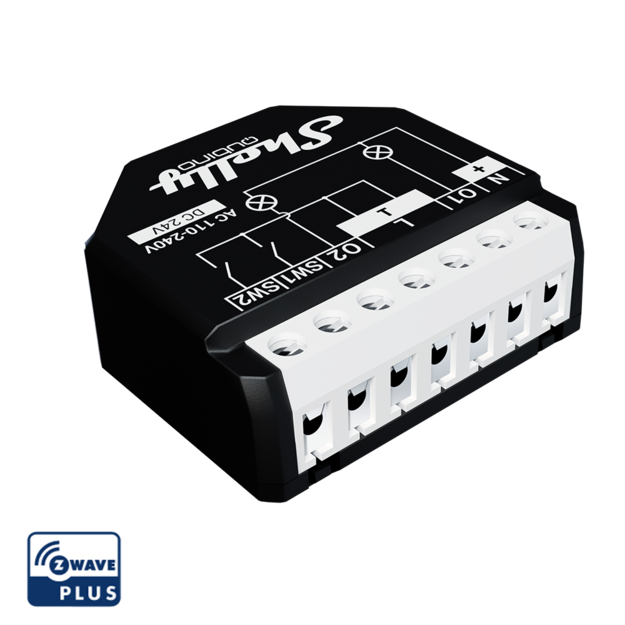

Shelly Qubino Wave 2PM

Save $1.00 Save $1.00
Original price $29.95
Original price $29.95 - Original price $29.95
Original price $29.95
Current price $28.95
$28.95 - $28.95
Current price $28.95
Availability:
Low stock

Z-Wave™ smart switch, 2 channels 16 A total current (18 A peak), with power metering

Remotely control two independent electrical appliances (e.g. lights) and monitor their power consumption separately and in total.

KEY FEATURES

  • 2 channels (2x 10 A, 16 A total)
  • Power metering on each channel and in total
  • Extremely low power consumption: 0.3 W.
  • Z-Wave frequency band: 908.4 MHz
  • Latest technology: Z-Wave 800 Series
  • Automatic set-up with SmartStart
  • Security 2 Authenticated for the highest level of security
  • Supports over-the-air firmware updates

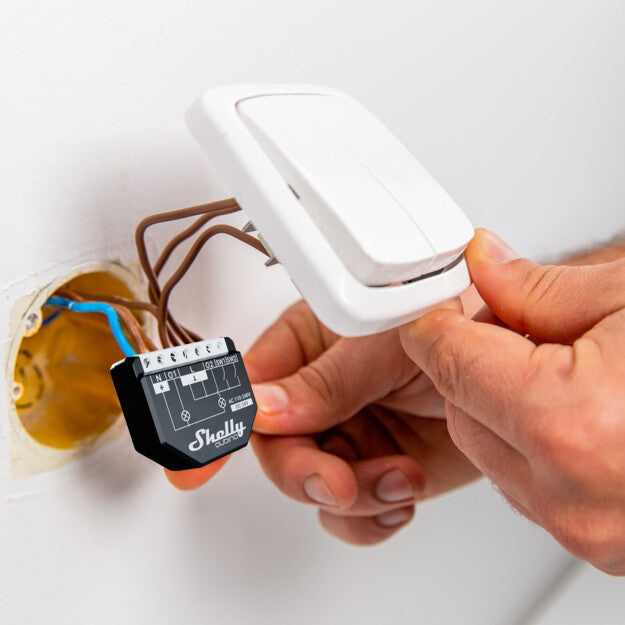

  • Simple installation in most standard electrical boxes and switches
  • Works with Z-Wave certified gateways and over 4,000 Z-Wave devices

SPECIFICATIONS

Power supply 110-240 V AC / 24 V DC +/-10%
Power consumption < 0.3 W
Power measurement (W) Yes
Max switching voltage AC 240 V
Max switching current AC 10 A per channel, 16 A total, 18 A total peak
Max switching voltage DC 30 V
Max switching current DC 10 A
Overheating protection Yes
Overload protection Yes
Distance Up to 40 m indoors (131 ft.) (depends on local condition)
Z-Wave™ repeater: Yes
CPU Z-Wave™ S800
Z-Wave™ frequency band: 908.4 MHz US/Americas
Maximum radio frequency power transmitted in frequency band(s) < 25 mW
Size (H x W x D) 37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in
Mounting Wall console
Screw terminals max. torque 0.4 Nm / 3.5 lbin
Conductor cross section 0.5 to 1.5 mm² / 20 to 16 AWG
Conductor stripped length 5 to 6 mm / 0.20 to 0.24 in
Shell material Plastic
Color Black
Ambient temperature -20°C to 40°C / -5°F to 105°F
Humidity 30% to 70% RH
Max. altitude 2000 m / 6562 ft.

NOTES

  • Standard warranty (included in purchase price): 24-month warranty through manufacturer due to device malfunctions when it is used in user manual described conditions.
  • While this is technically user-installable in many locales, we recommend consulting a licensed electrician to install automation components - in addition to being licensed to work with electrical devices, they are also familiar with local building codes.
  • Manufacturer's note: Each Shelly device emits heat under load. Do not combine two or more Shelly devices stacked on top of each other in a confined space. There must be a minimum distance of 1 cm between them to allow for airflow.

LINKS
