C4/C2/C1+/C0 HiFi Shield 2 with S/PDIF

Out of Stock, can be pre-ordered

Out of stock
$44.95

Disclaimer for Price Display Issues:

We strive to ensure that all prices displayed on our website are accurate. However, in rare cases, you may encounter an incorrect price for a product variant due to technical issues. If you notice a discrepancy in the price displayed when selecting a variant, please try the following steps:

  • Clear your browser cache and reload the page.
  • Use a different browser.
  • Add the variant to the cart.

The correct price will always be displayed in your cart before you complete your purchase. We apologize for any inconvenience this may cause and appreciate your understanding.

Compatible with the ODROID-C0/C1+/C2/C4. Not compatible with the original ODROID-C1.

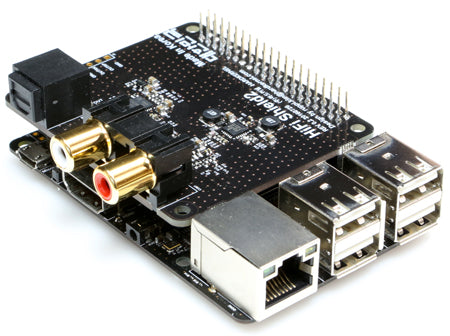

The HiFi Shield 2 provides stereo RCA connectors and an S/PDIF optical connector to connect to external amplifiers and other audio equipment. Via TI's high-end PCM5242 DAC chip (aka Burr-Brown) (formerly PCM5102), it supports 16, 24 and 32 bit audio formats with minimal THD+N ratio (0.002%) and ideal dynamics (114dB+) (formerly 100db+), plus amazing sampling rates of 384kHz.

The dedicated S/PDIF interface supports up to 192kHz/24bit resolution via optical (Toslink) output.

Using the new I2S expansion added to the ODROID-C series (not available on the original ODROID-C1, however), we save a USB port and allow the user to select their audio playback system of choice, such as Volumio, RuneAudio for HiFi audio playback.

  • The DAC chip uses a high-end PCM5242 chip from Burr-Brown company (now part of TI) which utilizes the I2S interface. It supports 16, 24 and 32 bit audio formats with minimal THD+N ratio (0.002%) and ideal dynamics (114dB+), plus amazing sampling rates of 384kHz.
  • Volume controls via I2C interface is a great feature to maintain great audio quality with adjustable audio output volume.
  • The output ports include gold-plated stereo RCA terminals and an S/PDIF connector.
  • The dedicated S/PDIF interface supports up to 192kHz/24bit resolution via optical (Toslink) output.
  • An ultra-low noise dropout regulator is populated for the power supply, significantly reducing power supply noise and greatly increasing the signal to noise ratio.
  • The I2S interface allows for direct decoding of the digital input to analog output using master clock synchronization.
  • The PCB surface is comprised of gold-plating on top of 2 oz. of copper, ensuring signal continuity and reducing signal reflection and refraction.
  • Balanced (differential signal) audio output soldering pads are available.
KEY FEATURES
  • Stereo RCA jacks (gold-plated)
  • S/PDIF (Toslink) connector
  • PCM5242 DAC chip supports 16, 24 and 32 bit audio formats
  • Minimal THD+N ratio (0.002%)
  • Ideal dynamics (114dB+)
  • Sampling rates of 384kHz
INCLUDES
  • HiFi Shield 2 Board (ODROID single-board computer is not included)
NOTES
  • Android not supported. Hardkernel states they have no plans to support the Android OS to enable the I2S driver for Android kernel and HAL.
LINKS

DEVELOPMENT TESTING

The HiFi Shield 2 is a high-resolution Digital to Analog Converter(DAC) for the ODROID-C4, C2, C1+ and C0. This is a special sound card that is optimized for the best fidelity audio playback quality. It delivers a nicely balanced sound, solid, deep, wide and nicely layered.

We've analysed the the audio quality of the HiFi Shield 2 DAC output with the famous industry standard equipment, Audio Precision. The Audio Precision is a high performance audio analyser optimized for the digital audio product.

The analog output of the HiFi Shield 2 is connected to the equipment and measurement data shows on the host PC.

Test conditions

RuneAudio image run on the ODROID-C1+ with HiFi-Shield 2. 192KHz audio test files were used.

Audio Precision Input : Analog unbalanced 2ch, 600ohm

Hardware volume/mixer settings

Analogue : -6.00 dB (amixer -c 1 sset Analogue 0)

Digital : -3.00 dB (amixer -c 1 sset Digital 201)

Deemphasis Filter : On (amixer -c 1 sset Deemphasis on)

Software volume settings

RuneAudio UI volume : software volume 100 (maximum full scale)
