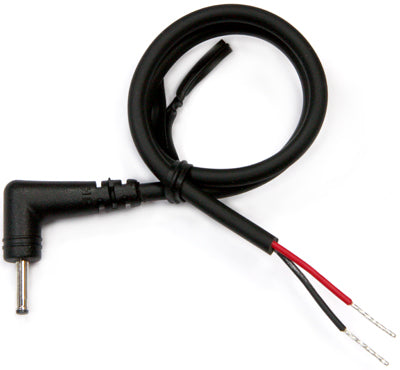

DC Plug and Cable Assembly 2.5mm L-Type

KEY FEATURES

• Inner(+) diameter 0.8mm and outer(-) diameter 2.5mm
• 270mm long (approx.)
• Max current rating: 2.5A @ 5VDC
• 90-degree L-Type connector

NOTES

• Center is positive (RED wire) and outer shield is negative (BLACK wire)
• Compatible with C2 / C1 / C1+ / U3 / U2 / X2 / VU / W Docking Board
• If used with the C2 or C1+ in a Raspberry Pi case, a hole will need to be made in the case to access the 2.5mm power connector. However, the USB OTG port is available and accessible for power on the C2 or C1+ in a Raspberry Pi case.

Warranty is valid for two weeks, starting upon date of receipt.
