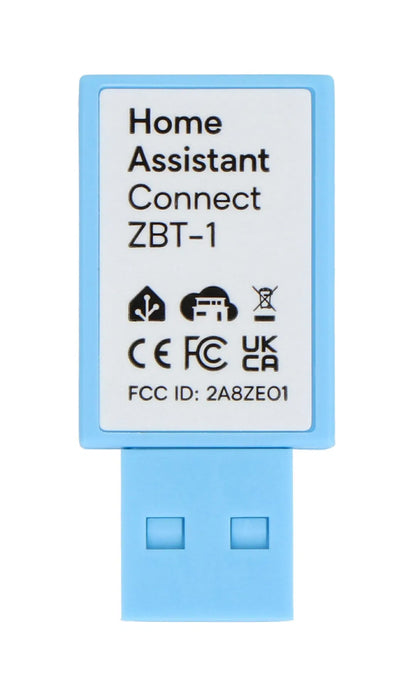

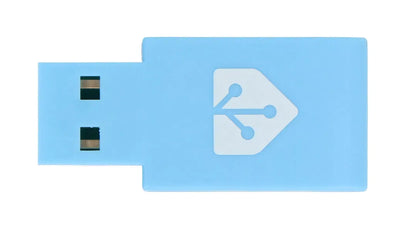

Home Assistant Connect ZBT-1 / SkyConnect

Original price $34.95 - Original price $34.95
Original price
$34.95
$34.95 - $34.95
Current price $34.95
Product: Home Assistant Connect ZBT-1 / SkyConnect
Price: $34.95
Availability:
In-Stock

Notice: The current batch of Connect ZBT-1 devices is not affected by the previous voltage regulator issue. All units are fully functional and verified to be issue-free!

The Home Assistant Connect ZBT-1 (formerly known as SkyConnect) is designed to be a perfect match for Home Assistant Users. The device provides an easy connection with Zigbee and will support Matter specifications in the future with a firmware update from Home Assistant*. The product supports Over-The-Wire (OTW) Firmware Update via the USB interface, which allows easy and quick firmware updates for both protocols.

The device is an EFR32 Series 2 (Silicon Labs EZSP v8) adapter that will transmit at a power of +20 dBm. The drive supports full-speed USB 2.0 when plugged into the included USB extender.

Home Assistant Connect ZBT-1 can also be used to turn your Home Assistant installation into a Thread border router. Currently, enabling Thread involves manual steps. The integration of the Home Assistant Thread border router with Matter is work-in-progress. To learn more about Thread border routers, refer to the List of Thread border routers. To learn how to use Connect ZBT-1 to turn your Home Assistant into a Thread Border router, refer to Turning Home Assistant into a Thread border router. To Enable Thread Support you can also follow the instructions here (This setup facilitates the connection of Matter-over-Thread devices to your network).

The USB Stick will be Plug and Play, tightly integrated with the Zigbee Home Automation integration allowing for a beginner-friendly experience.

* The ZBT-1 will not run Matter immediately on launch, but when using Home Assistant, the firmware will be updated to enable Matter when it is finished being developed. This is due to the Matter protocol not being finalized and released until November (not all of the protocol specifications are currently available). Home Assistant is already working on the Matter implementation, but more information will come after November.

FEATURES

  • 2.4GHz Multi-Protocol USB
  • Transceiver
  • Zigbee 3.0; Thread (Matter) via firmware update
  • USB v2.0 full-speed
  • TX power up to +20dBm
  • Silabs EFR32MG21 Wireless SoC
  • Over-The-Wire (OTW) update support
  • Runs 2 Protocols Simultaneously
  • Dual-Protocol operation (Zigbee, Matter)
  • Made for Home Assistant, adaptable for any case
  • Futureproof Wireless Transceiver
  • Low-risk bundle device for Gateway

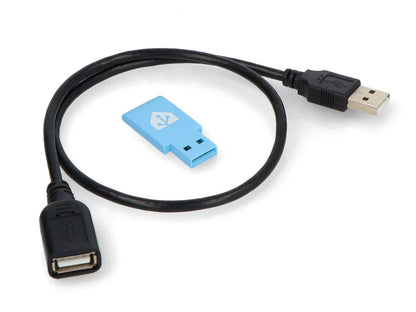

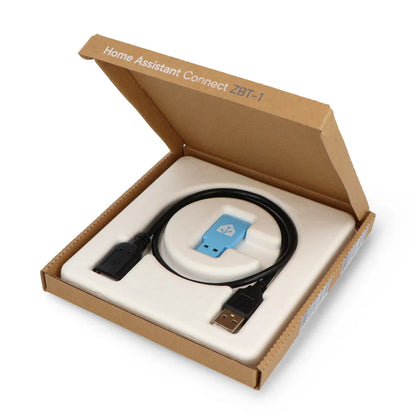

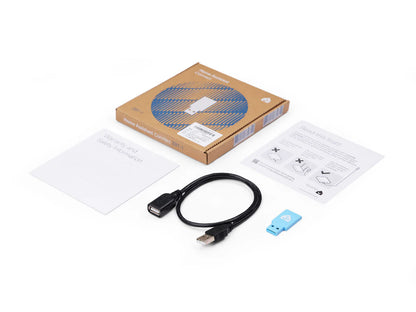

INCLUDES

  • Connect ZBT-1 USB Device
  • USB Extension Cable (50cm/19.6in.)

SPECIFICATIONS

  • Support for Zigbee 3.0; Thread
  • Over-the-wire (OTW) firmware updates
  • USB v2.0 full-speed
  • Supply : 5V DC / up to 150mA
  • USB: v2.0 full speed (12Mbps)
  • Bridge: USB to UART, Silabs CP2102N
  • Transceiver: Silabs EFR32MG21
  • Frequency: 2.4GHz
  • Antenna: PCB
  • TX Power : up to +20dBm
  • RX sensitivity : -104dBm (250kbps)
  • Protocols: Zigbee 3.0; Thread
  • Stack: EmberZNet Serial Protocol (EZSP)
  • Dimensions (LxWxH) : approx. 38.5 x 18 x 4,5mm
  • Weight: 4g

LINKS



SKU E0645
