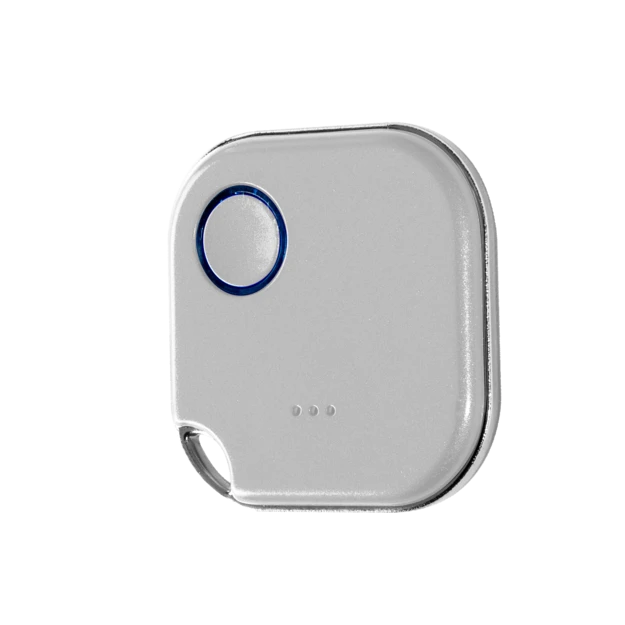

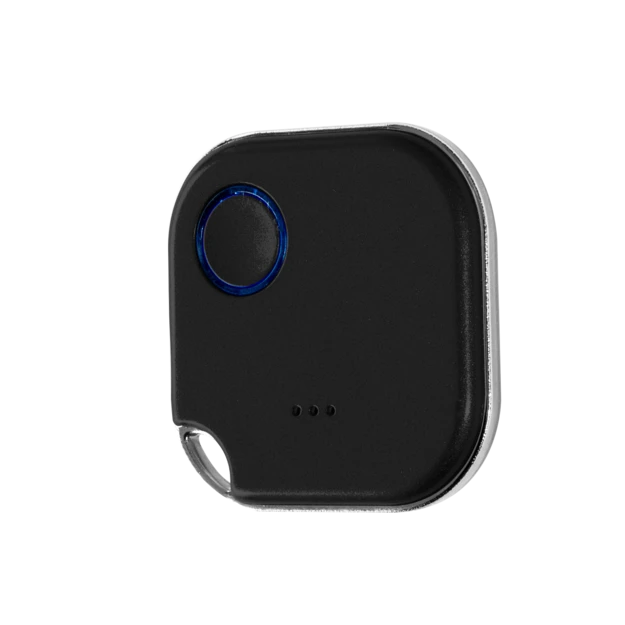

Shelly BLU Button 1
Bluetooth-operated action and scenes activation button
Remotely control and activate/deactivate different scenes and other Shelly devices without your mobile phone. Execute up to 4 pre-set actions or scenes with simple click combinations.
KEY FEATURES
- Scripting functionality for endless actions based on location
- Full compatibility with Home Assistant and any other device which is supported by BTHome protocol
- Uses BLE technology
- Able to turn on/off appliances, dim, and activate scenes
- Encryption
- Has sound and light alert; "Hush" mode for no sounds
- "Find me" function activated by beacon mode
- Range of 10m indoors and 30m outdoors
- Works with Plus and Pro devices
With support for the Advanced Encryption Standard, we have ensured that all communications are encrypted and secure. This encryption ensures that even if someone attempts to intercept your device's communication, they will not be able to access your data or compromise your security. Moreover, with our device's built-in protection against replay attacks, you can be assured that any attempts to manipulate the signal will be prevented.
NOTES
- Standard warranty (included in purchase price): 24-month manufacturer warranty due to device malfunctions when it is used in user manual described conditions.
PHYSICAL | |
---|---|
Size (HxWxD): | 36x36x6 mm ±0.5 mm / 1.44х1.44х0.25 in ±0.02 in |
Weight with the battery: | 9 g ±1 g / 0.30 ±0.05 oz |
Shell material: | Plastic |
Color: | White, black, red, blue |
ENVIRONMENTAL | |
Ambient temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
Humidity: | 30 % to 70 % RH |
Max. altitude: | 2000 m / 6562 ft |
ELECTRICAL | |
Power supply: | 1x 3 V CR2032 battery (included) |
Battery life: | Battery life: up to 2 years |
RADIO | |
RF band: | 2400 - 2483.5 MHz |
Max. RF power: | <4 dBm |
Bluetooth Protocol: | 4.2 |
Bluetooth Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
FIRMWARE CAPABILITIES | |
Encryption: | AES encryption (CCM mode) |
Beacon mode: | Yes |
Multi-click support: | Up to 4 possible actions |
