Shelly Pro 3
Save $23.00
Original price
$92.95
Original price
$92.95
-
Original price
$92.95
Original price
$92.95
Current price
$69.95
$69.95
-
$69.95
Current price
$69.95
Availability:
Low stock

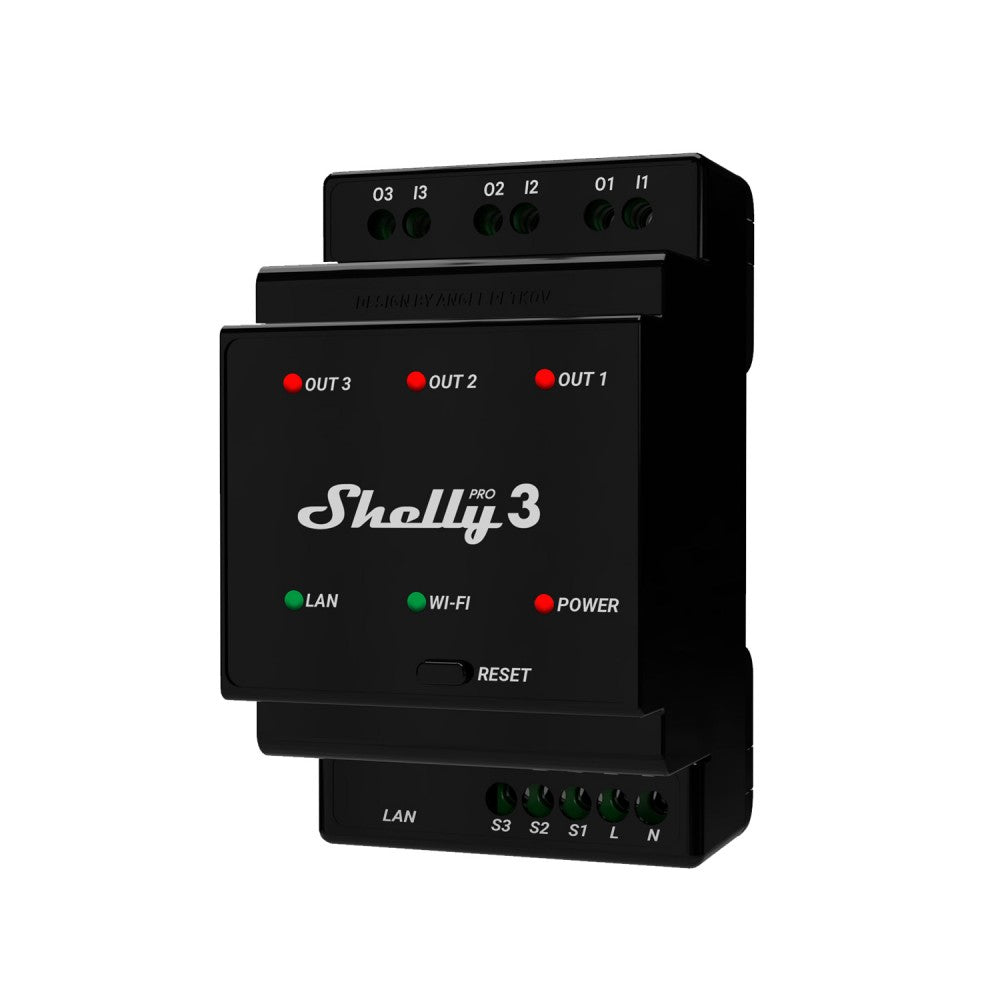

3 channels DIN rail relay switch with Wi-Fi, LAN and Bluetooth connection
Professional 3 channels relay with Wi-Fi, LAN, and Bluetooth connection, suitable for home and facility automation with remote control. DIN rail mountable inside a breaker box. Enhanced safety features and compatible with most used home automation platforms.
KEY FEATURES
- LAN, Wi-Fi, and Bluetooth connection
- 3 output, 16A each. Total device maximum of 48A
- Dry contact
- DIN rail mountable
- 3 phases control
NOTES
-
Standard warranty (included in purchase price): 5 Years warranty through manufacturer due to device malfunctions when it is used in user manual described conditions.
-
While this is technically user-installable in many locales, we recommend consulting a licensed electrician to install automation components - in addition to being licensed to work with electrical devices, they are also familiar with local building codes.
- Manufacturer's note: Each Shelly device emits heat under load. Do not combine two or more Shelly devices stacked on top of each other in a confined space. There must be a minimum distance of 1 cm between them to allow for airflow.
| Power | |
| Power supply AC | 110-240V, 50/60Hz |
|
Maximum Load |
up to 16A per channel with up to 48A for the whole device |
| Channels |
3 Channel |
| Special functions | |
| Roller Shutter Mode |
No |
| Device Temperature Protection |
Yes |
| Overload Protection | No |
| Power Measurement | No |
| Features | |
| HTTP/HTTPS webhooks | Yes |
| Custom scripts(mJs) | Yes |
| Channels |
3 Channel |
| Operational temperature | -20°C to + 40 °C |
| Device power consumption | < 3 W |
| Intelligent On/Off | Yes |
| Local and remote control | Yes |
| Sunrise/Sunset | Yes |
| Weekly Schedule | Yes |
| UL Listed option | No |
| Connectivity | |
| Wireless | Yes |
| Wi-Fi Protocol | 802.11 b/g/n |
| Wi-Fi Radio frequency | 2412 – 2472 МHz; (Max. 2495 MHz) |
| Wi-Fi Range | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth | Yes |
| Ethernet | Yes |
| Dimensions | |
| Size | 96x53x59 mm / 3.78×2.01×2.32 inch |
LINKS
- Official Support - https://shelly.cloud/support/
- Support Group - https://www.facebook.com/groups/ShellyIoTCommunitySupport
- API and Communication Documentation - https://shelly-api-docs.shelly.cloud/gen2/
SKU G0259
