ODROID-Vu8M

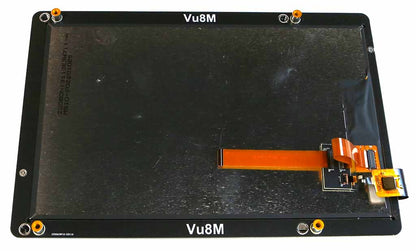

The four-lane MIPI-DSI port can be directly connected to a LCD panel. A 8inch 800×1280 wide viewing angle LCD and capacitive multi-touch screen is pre-assembled.

If you assemble the ODROID-M1 single board computer on the rear side of the Vu8M kit, you can easily implement a Human-Machine-Interface (HMI) device. The U bracket PCB is included to dock ODRMOD-M1 to Vu8M.

SPECIFICATIONS

• 8-inch TFT-LCD
• 800(H) x 3(RGB) x 1280(V) pixels hardware resolution
• Mechanical Dimensions : 198(W) x 133.0(H)
• Viewable screen size : 172.224 x 107.64 mm (active area)
• 5 finger capacitive touch input
• Power consumption : 2.4W ± 10% (100% duty cycle)

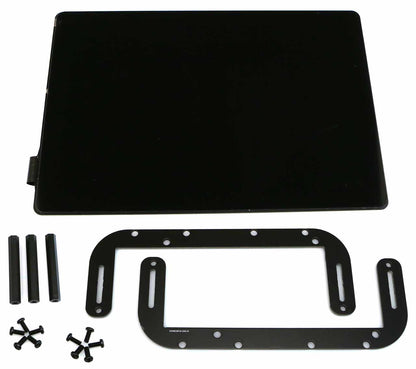

INCLUDED

A)  Assembled 8inch TFT LCD + multi touch screen
B)  3 x M3*40(black) support  (spare included)
C)  11 x PM3.0 x 7(black) bolt (spare included)
D)  2 x 60 mm FPCB cable
E)  MIPI DSI converter board for M1
F)  LCD bracket board for M1
G)  2 x U form bracket board for M1

LINKS

• https://wiki.odroid.com/accessory/display/vu_series/vu8m#assembly_guide
