Oz64

Out of Stock, can be pre-ordered

$19.95

Disclaimer for Price Display Issues:

We strive to ensure that all prices displayed on our website are accurate. However, in rare cases, you may encounter an incorrect price for a product variant due to technical issues. If you notice a discrepancy in the price displayed when selecting a variant, please try the following steps:

  • Clear your browser cache and reload the page.
  • Use a different browser.
  • Add the variant to the cart.

The correct price will always be displayed in your cart before you complete your purchase. We apologize for any inconvenience this may cause and appreciate your understanding.

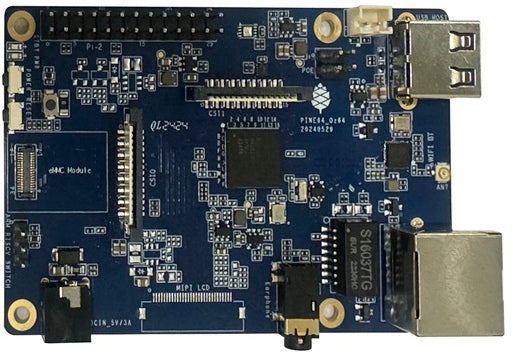

The Oz64 is a cost-effective single-board computer (SBC) based on the Sophgo SG2000 SoC, featuring dual T-Head C906 64-bit RISC-V cores, an ARM Cortex-A53 64-bit RISC CPU core, and an 8051 8-bit core. It is supported by 512 MB of embedded DRAM memory and includes Wi-Fi and Bluetooth radio interfaces.

The Oz64 SBC adopts a model-B form factor and offers a variety of connectivity options, including a microSD card slot, an eMMC plugin connector, a USB 2.0 Type-A host port, and numerous peripheral interfaces for makers to easily integrate sensors and other devices.

FEATURES

Network

  • 2.4 GHz 1T1R Wi-Fi 6

  • Bluetooth 5.2

  • 10/100 Mbit/s Ethernet with optional PoE capability

Storage

  • On-board eMMC module socket
  • MicroSD, supports SDHC and SDXC

Expansion Ports

  • USB 2.0 Host port
  • 26 GPIO pins, including SPI, I2C and UART functionality

  • 2x Dual-lane MiPi CSI port

  • Optional dual-lane MiPi DSI port

Expansion Ports

  • Input Power: +5V @2A with 3.5mm/1.35mm Type H Barrel type DC connector (@1.5A will work if there is no heavy load on the USB 2.0 port)
