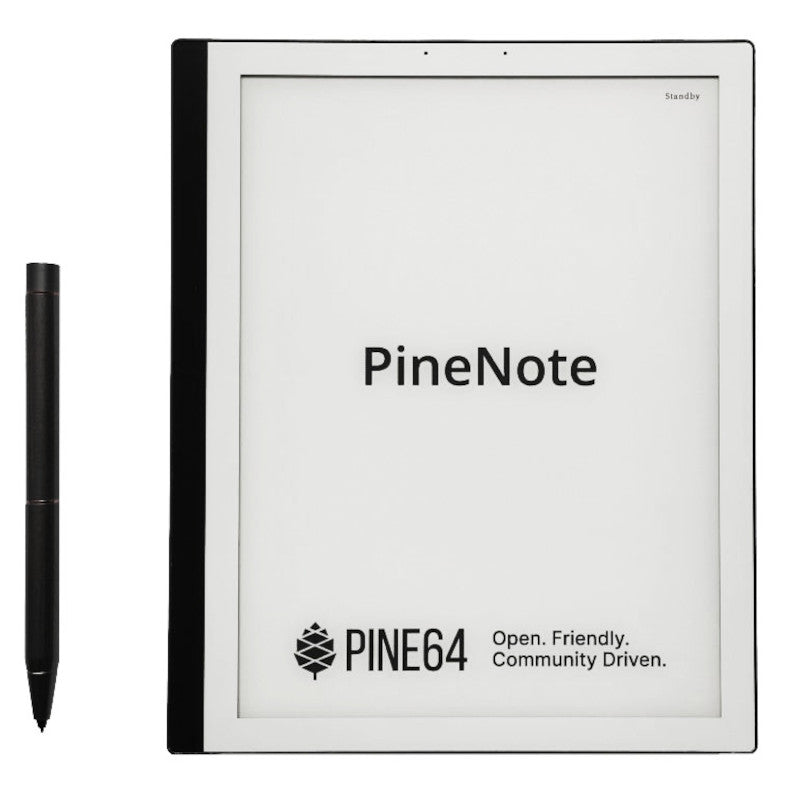

PineNote Developer Edition

PineNote Developer Edition

Sold out
$499.95 - $499.95
$499.95
$499.95 - $499.95
$499.95
Availability:
Out of stock, Add to cart to Pre-order!

SPECIFICATIONS

BODY
  • Dimensions: 191.1 x 232.5 x 7.4mm
  • Weight: 438g
  • Build: Polymer & PMMA
  • Colour: White & Black
DISPLAY
  • Grayscale 16 e-paper display
  • Front Light: 36 levels of blue and amber light
  • Capacitive multi-touch panel
  • EMR pen digitizer
  • Resolution: 1404×1872, DPI: 227
PLATFORM
  • CPU: Rockchip RK3566 (1.8GHz 64-bit quad-core Cortex A55)
  • GPU: Mali G52 2EE
MEMORY
  • Internal Flash Memory: 128GB eMMC
  • System Memory: 4GB LPDDR4
EMR pen
  • Configurable Buttons: ON/OFF, back, forward
SOUND
  • Loudspeaker: stereo
  • Microphones 4x
COMMUNICATION
  • WLAN: Wi-Fi 802.11ac, hotspot capable
  • Bluetooth: 5.0
FEATURES
  • USB: USB2.0 Type C (USB host)
  • Sensors: gyro for portrait/ vertical orientation
BATTERY
  • Li-Po 4000 mAh battery
  • Charging: USB type-C, 15W – 5V 3A Quick Charge, follows USB PD specification
PACKAGE CONTENTS
  • PineNote
  • USB-A to USB-C charging cable
  • Quick Start User Manual
  • EMR Pen
  • Protective cover

NOTES

  • The PineNote is an experimental device. PineNote software is still in it’s infancy and therefore it is ONLY suitable for experienced developers. At present time, there is no default OS for the PineNote.
  • The PineNote Developer Edition is aimed at Linux developers with an extensive knowledge of embedded systems and/or experience with mobile Linux.

Warranty is valid for 30 days, starting upon date of receipt.

SKU I0722
