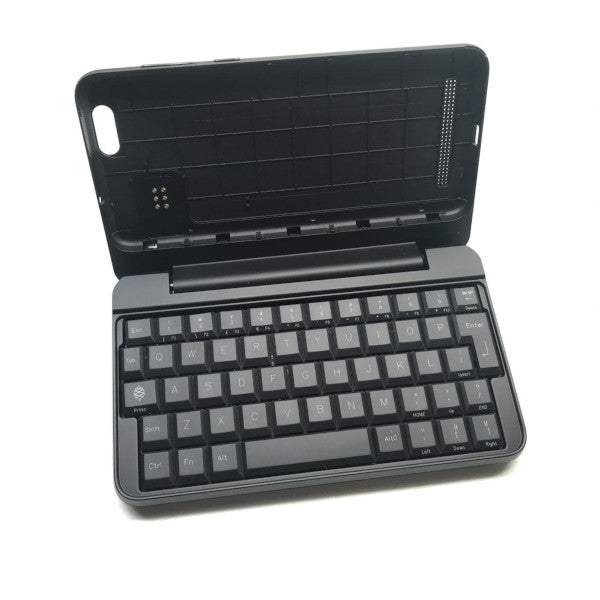

PinePhone(Pro) Keyboard

Out of Stock, can be pre-ordered

Out of stock
$89.95

KEY FEATURES

  • Compatible with PinePhone and PinePhone Pro
  • Laptop-style keys
  • 6000mAh internal battery prolongs phone charge
  • Allows use of all phone ports, camera, flashlight/torch, etc.
  • Ability to charge keyboard battery while using the USB-C on the phone for peripherals (see notes below for important information)

NOTES

  • DO NOT PLUG CHARGING CABLE INTO PHONE AND KEYBOARD CASE AT THE SAME TIME - Doing so could cause physical damage to the phone and/or keyboard case.
  • Pogo pads on the keyboard case may need to be shimmed if keyboard doesn't work or charging is slow or not working.
  • The keyboard case makes the phone significantly wider and over twice as thick and heavy making it pocketable in only the largest of pockets.
  • Many operating system images support the keyboard case as of this note being written in Aug 2023, such as postmarketOS, Manjaro Linux, DanctNIX (Arch Linux) and Mobian.
  • Due to the larger clamshell form factor, Bluetooth or wired headset will likely be required to handle calls.
  • Pressing the button once by the USB-C port on the keyboard turns the charging function on, and double-clicking it turns the charging function off.
  • From Mobian command line, the following command can be used to monitor the status of the KB battery and the Phone battery at the same time:
    watch -n 1 -d "grep -E 'CAPACITY|STATUS' /sys/class/power_supply/*/uevent"
  • Troubleshooting

SPECIFICATIONS

Body
  • Black chassis
  • Matte dark gray key caps
  • Dimensions (closed): 161 x 95 x 21.5mm
  • Weight (without PinePhone /Pro): ~191 grams
  • Number of keys: 54
  • Number of key rows: 5
Features
  • ISO QWERTY layout (key caps can be rearranged)
  • Pogo pin connector
  • 6000mAh internal battery with manual ON/OFF toggle
  • USB-C for charging, capable of powering the case and PinePhone (Pro)
  • Open and programmable firmware
  • Unpopulated internal USB header for hacking in additional functionality
Key internal components
  • IP5209 charging controller
  • EM85F684A USB controller
I/O
  • USB-C power-in (no data) – 3A@5V
  • Pogo pin connector
  • Internal USB 2.0 unpopulated header
Other
  • Compatible with PinePhone and PinePhone Pro
