SmartPower 3

SmartPower 3

$57.95 USD
$57.95 USD
Shipping calculated at checkout.
US Flag Thank you for supporting a US-based small business!

Out of Stock!

Description ▼

The easy way to make a Green platform. The ODROID SmartPower 3 is an easily deployable power supply that collects voltage, current and power of the system load to enable you to optimize energy consumption. LCD shows voltage, current and watts simultaneously while you can also see the graphical energy transient on your PC via USB interface.

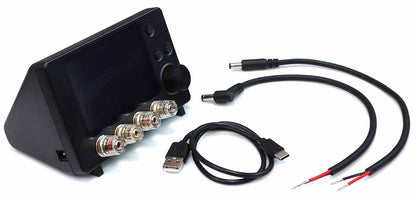

INCLUDES

  • ODROID Smart Power3
  • USB-C data cable
  • DC plug cable(5.5mm/2.1mm) x 2(L type/S type) for ODROID-XU4/ODROID-N2/ODROID-C4

REQUIRES

SPECIFICATIONS

Output Channels Two output channels (Max 50W + 50W)
Output Voltage DC 3.0 V ~ Input voltage -1 V
Output Current DC 3A (Max) per channel
Measurement Voltage, Current, Watt : Maximum sampling rate : 200Hz (5msec interval)
Tolerant 3% typical
MCU ESP32-WROOM-32E
LCD 480×320 3.5“ TFT LCD IPS grade wide viewing angle A
LED RED(Power), BLUE(Alive) C, D
Button ON/OFF/Menu/Cancel, Output Channel On/Off B, E, F
Encoder Button Select/Setup G
Encoder Dial Adjust Voltage and Ampere
USB-C port Data communication with PC (5ms ~ 1s sampling rate), F/W Upgrade H
Output Terminal 4mm diameter banana jack x 2 J, I
Input Voltage DC 9V ~ 21V K
