Ultrasonic Ranging Module

The Ultrasonic Ranging Module provides stable readings and accurately measures distance. This module can be used for a number of projects such as fluid level in a tank, distance to obstacles, and other sensing tasks.

KEY FEATURES

• Working voltage : 5V(DC)
• Static current: Less than 2mA.
• Output signal: Electric frequency signal, high level 5V, low level 0V.
• Sensor angle: Not more than 15 degrees.
• Detection distance: 2cm~450cm.
• High precision: Up to 3mm
• Mode of connection: VCC / trig(T) / echo(R) / GND

NOTES

• Initiate IO trigger by supplying at least 10us high signal
• The module automatically sends eight 40khz square waves and detects the returning pulse signal if available

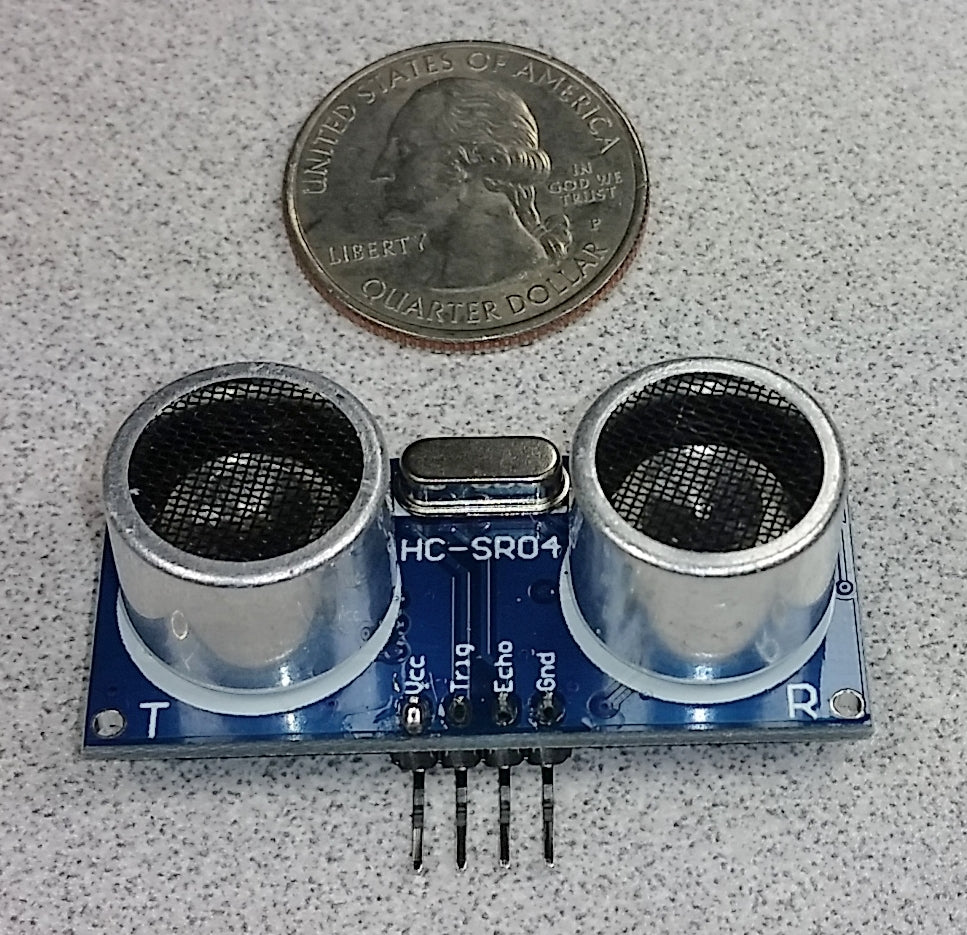

• Unlike in the photos, a 25 cent coin is not included
