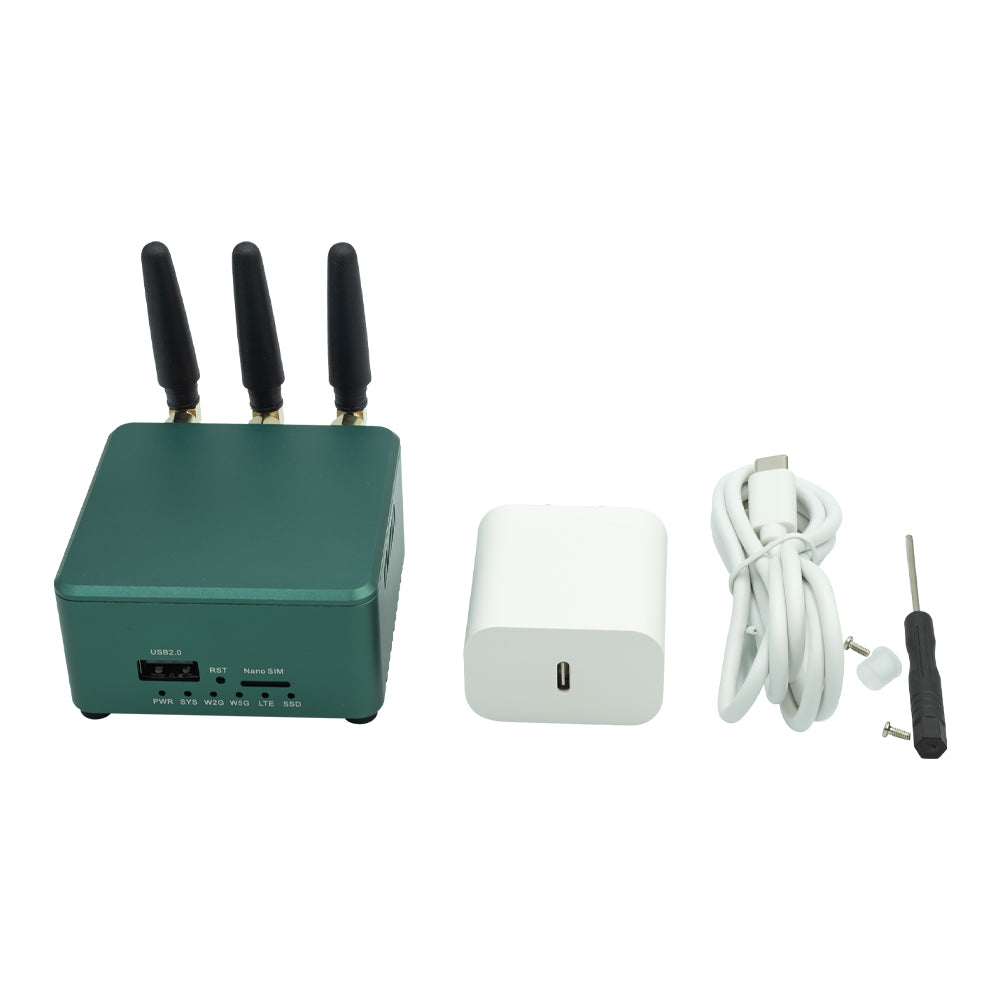

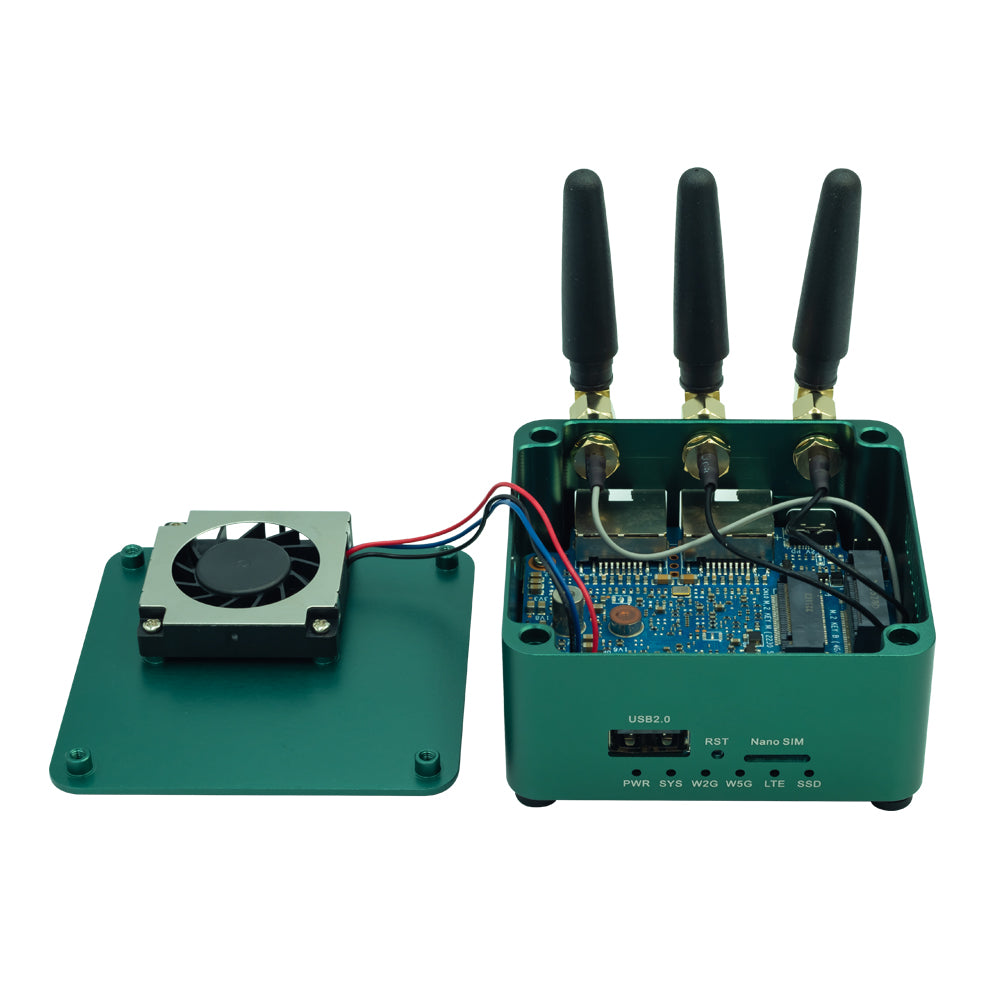

Banana Pi BPI-R3 Mini w/Case, Antennas and Power Supply

Original price $129.95 - Original price $129.95
Original price
$129.95
$129.95 - $129.95
Current price $129.95
Product: Banana Pi BPI-R3 Mini w/Case, Antennas and Power Supply
Price: $129.95
Availability:
Low stock

Banana Pi BPI-R3 Mini Router board with MediaTek MT7986A (Filogic 830) quad core ARM A53 chip design, 2G DDR RAM, 8G eMMC flash onboard, it is a very high performance open source router development board, support Wi-Fi6 2.4G/5G with MT7976C, support 2x 2.5GbE ethernet port.

The MT7986A(Filogic 830) integrates four Arm Cortex-A53 cores up to 2GHz with up to 18,000 DMIPs of processing power and 6Gbps of dual 4x4 Wi-Fi6 connectivity. It has two 2.5g Ethernet interfaces and serial peripheral interfaces (SPI). Filogic 830‘s built-in hardware acceleration engine enables fast and reliable Wi-Fi offloading and wireless network connection. In addition, the chip supports Mediatek FastPath™ technology, which is suitable for games, AR/VR and other low-latency applications.

Wi-fi 6 has many advantages over its predecessors, including lower latency, larger bandwidth capacity and faster transmission rates. Wireless network devices supporting the 6GHz band mainly use 160MHz wide channel and 6GHz uncongested bandwidth to provide multigigabit transmission and low-latency wi-fi connection, providing reliable wireless network for streaming media, games, AR/VR and other applications.

FEATURES

  • MediaTek MT7986A(Filogic 830) Quad core ARM Cortex A53
  • Wifi 6 2.4G/5G(MT7976C)
  • 2G DDR RAM
  • 8G eMMC flash
  • 128MB Nand flash
  • 2x 2.5GbE network port
  • 1x M.2 Key B USB interface
  • 1x M.2 KEY M PCIe interface
  • 1x USB2.0 interface

APPLICATIONS

  • Internet service Router
  • Wireless Router
  • Wireless Repeater
  • Home security Gateway
  • Home Automation
  • Nas device
  • Soft router
  • Network and communication applications

SPECIFICATIONS

CPU MediaTek MT7986A(Filogic 830) Quad-core ARM Cortex-A53
SDRAM 2 GB DDR4
On board Storage 128MB SPI NandFlash,8GB eMMC
On board Network 2x 2.5GbE Ethernet
Wifi Wifi6 2x2 2.4G + 3x3 5G(MT7976C)
M.2 Key B 1x M.2 Key B interface
M.2 Key M 1x M.2 KEY-M PCIe inerface
USB 1x USB 2.0
Buttons Reset button, boot switch
5x Leds Power ,System, Wifi 2G ,Wifi 5G ,4G Lte ,SSD
DC Power 20W/12V,USB TypeC PD
Sizes 65x65mm
Weight 100g

NOTES

SKU G0752
