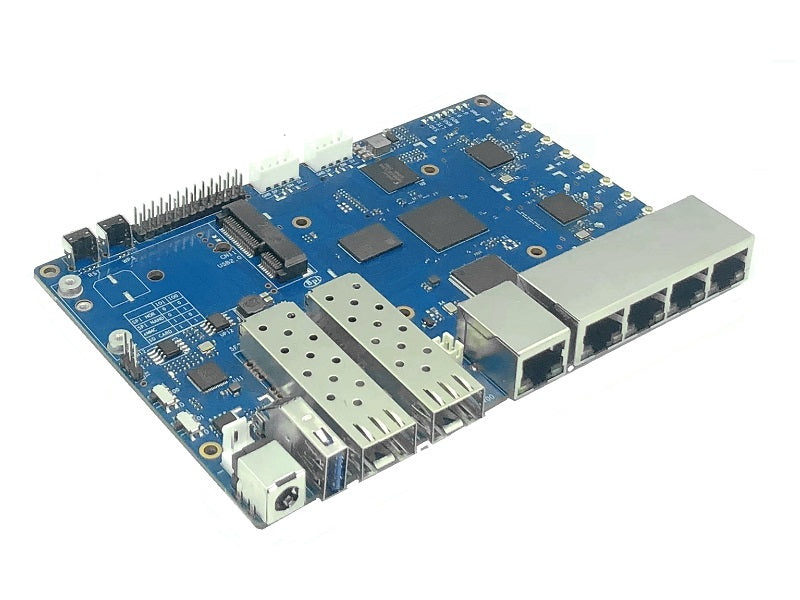

Banana Pi BPI-R3 Open-Source Router

In Stock


Disclaimer for Price Display Issues:

We strive to ensure that all prices displayed on our website are accurate. However, in rare cases, you may encounter an incorrect price for a product variant due to technical issues. If you notice a discrepancy in the price displayed when selecting a variant, please try the following steps:

  • Clear your browser cache and reload the page.
  • Use a different browser.
  • Add the variant to the cart.

The correct price will always be displayed in your cart before you complete your purchase. We apologize for any inconvenience this may cause and appreciate your understanding.

The Banana Pi BPI-R3 is a compact single-board computer designed for a variety of applications, including IoT, network security, and home automation. It is powered by a quad-core ARM Cortex-A53 processor and features built-in Wi-Fi, Bluetooth, and Gigabit Ethernet connectivity.


  • Compact design with a small form factor
  • High-speed connectivity with Gigabit Ethernet and Wi-Fi 802.11ac
  • Built-in Bluetooth 5.0 for wireless communication
  • Powerful quad-core processor for fast and efficient computing
  • Flexible storage options with eMMC flash and microSD expansion
  • Supports a variety of operating systems for different applications


  • Processor: MediaTek MT7622, quad-core ARM Cortex-A53, up to 1.35GHz
  • GPU: Mali 450 MP4, OpenGL ES 2.0/1.1, OpenVG 1.1, EGL
  • Memory: 2GB DDR4 SDRAM
  • Storage: 8GB eMMC flash, microSD slot for expansion
  • Connectivity: Gigabit Ethernet, dual-band Wi-Fi 802.11a/b/g/n/ac, Bluetooth 5.0
  • Audio: 3.5mm audio jack, HDMI audio output
  • Video: HDMI 2.0a with HDCP 1.4/2.2 support, 4K@60Hz video playback
  • USB: 2x USB 3.0, 1x USB 2.0 OTG
  • Expansion: 40-pin GPIO header, 2x SATA III ports, PCIe 2.0 slot
  • Operating system: Android, Ubuntu, OpenWrt, Debian, Raspbian
