10.1" FHD Display for ROCK

High brightness and resolution combined with gravity sensor and the new 10 point capacitive touch make RADXA´s 10 inch display the best choice for your Rock boards.

Technical specifications:

• 10.1 inch TFT-LCD IPS display
• Resolution: 1200x1920 pixel FHD
• Brightness: 300cd/m2
• View Angle: Full Viewing Angel
• Touch Panel: 10-point capacitive touch (powered by GT9271)
• Interface: MIPI DSI interface
• Built-in Gravity Sensor for rotation (SC7A20)
• One cable for touch and data

• Operation temperature: -20-60°C
• Storage temperature: -25 ~ 70°C
• Max power consumption < 5W
• Full font touch panel and LCD

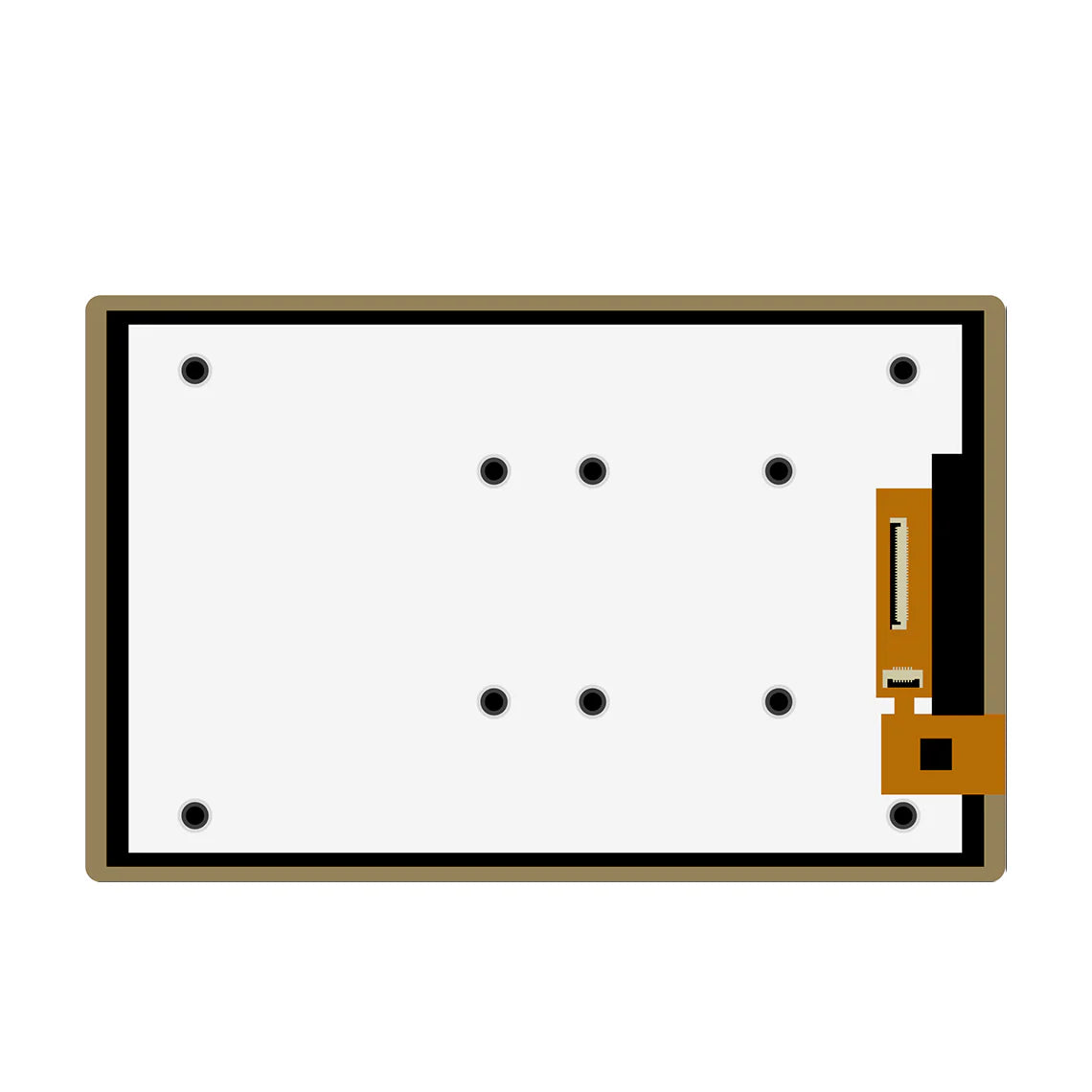

• Mounting options on the back for supported Rock boards
• Mounting option for Display in enclosure
• External dimensions: 155x246.16x5.95mm
• 39 to 40 pin FPC connector cable included
• 15 to 40 pin FPC connector cable included

OS support: Linux and Android

*) Hardware support:

ROCK 3B

ROCK 4C+

ROCK 5A / 5B /5 ITX

CM3 IO Board, CM3I IO Board, CM5 IO Board
