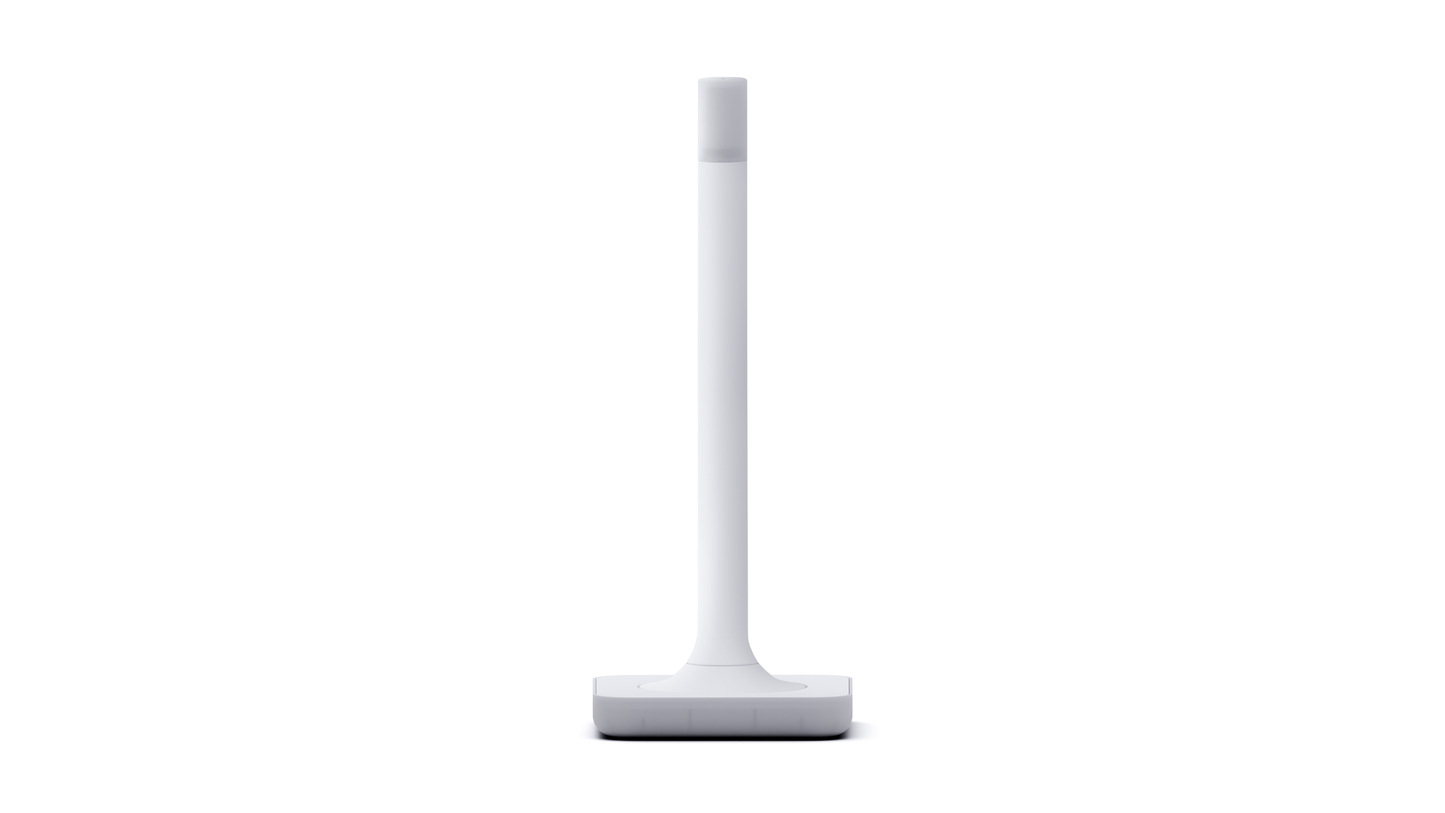

Home Assistant Connect ZWA-2

Home Assistant Connect ZWA-2

Special shipping offer! Enjoy just $5 flat-rate shipping on your ZWA-2 order within the US or $28 shipping to Canada with tariffs and taxes included. US Based Support via Chat, Email or Phone.

Enhance your setup! Check out our Z-Wave line for compatible automation devices.

$68.95 USD
$68.95 USD
Sale Sold out
Shipping calculated at checkout.
Condition

In stock

Description ▼

The ultimate way to connect Z-Wave devices to Home Assistant.

if you select Condition Other: The box of this item was slightly damaged during transit to us, leaving a noticable mark, the inside components have no damage but only the outside layer of the box.

The most performant Z-Wave adapter available, it is the ultimate way to connect any Z-Wave device to Home Assistant. The antenna and base are precisely tuned to Z-Wave’s ideal wavelength, working in harmony to provide a reliable connection and maximize range. With support for Z-Wave Long Range*, it provides a more dependable, responsive connection to far-away devices and improved battery life. Designed by the team driving forward Home Assistant and Z-Wave JS, it offers plug-and-play setup and effortless migrations.

*Currently, Z-Wave Long Range only supports the North American and European regions, with limited device availability in Europe.

Note: Connect ZWA-2 was designed to operate with Home Assistant and the Z-Wave JS add-on. If you use Connect ZWA-2 without Home Assistant, please visit: https://go.nabucasa.com/zwa-2-without-home-assistant

  • 📐 PRECISELY ENGINEERED – The antenna and base are precisely tuned to Z-Wave’s ideal wavelength, working in harmony to provide a reliable connection and maximize range.
  • ✅ LATEST Z-WAVE CHIPSET – Certified and includes the latest 800-series chipset, it supports all Z-Wave devices.
  • 🌊 ALL THE BENEFITS OF Z-WAVE – While Zigbee, WiFi, and Bluetooth all share the same airspace, Z-Wave has its own frequency that better cuts through thick walls and with less interference in busy areas.
  • 📶 LONG RANGE COMPATIBLE – This newest iteration of the standard delivers more reliable, responsive connections to very far-away devices, and improved battery life.*
  • 🏠 BUILT FOR HOME ASSISTANT – Designed by the team driving forward Home Assistant and Z-Wave JS.
  • 🔄 EFFORTLESS MIGRATION – Moving from most other adapters to ZWA-2 can be done in a couple of clicks.
  • ✨ PLUG AND PLAY – Z-Wave setup has never been easier, thanks to our intuitive start-up wizard and one-click firmware updates.
  • 📬 MORE RANGE MORE OPTIONS – Set up a mailbox sensor in your apartment building or smartify a motorized gate at the end of your driveway.
  • 🧬 2ND GENERATION PLATFORM – Built on our second-generation Home Assistant Connect platform (hence the 2), it is designed to be performant and open.

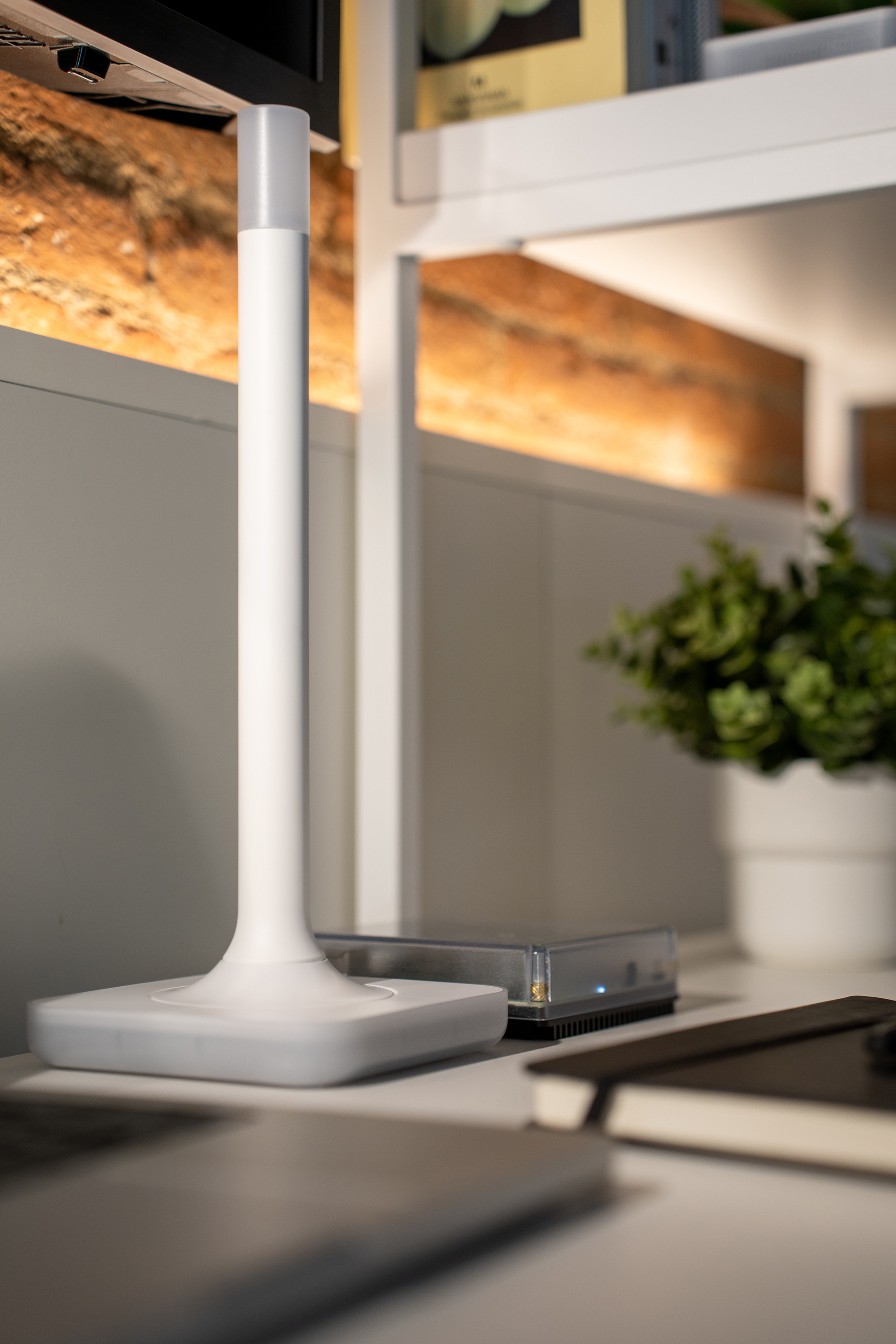

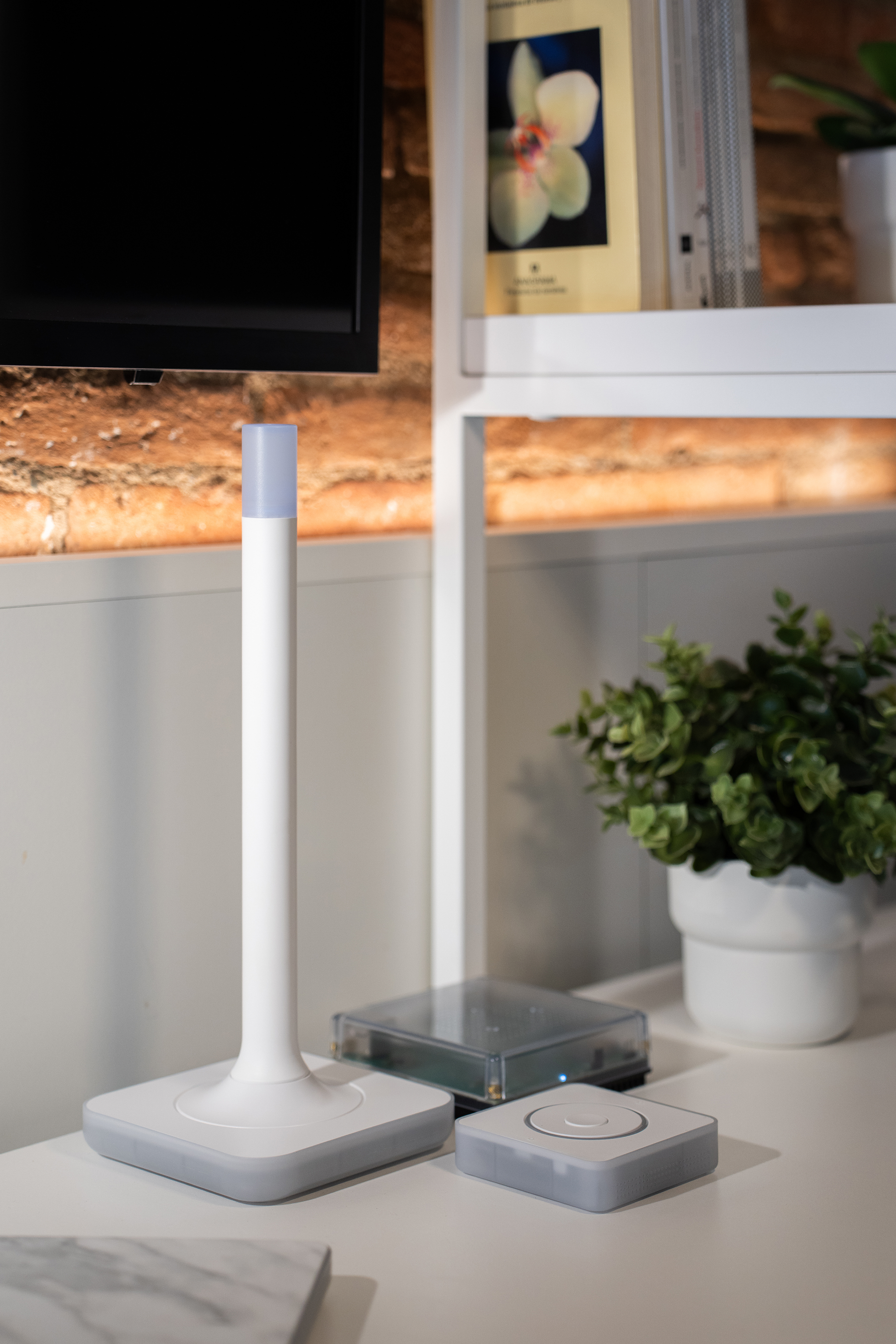

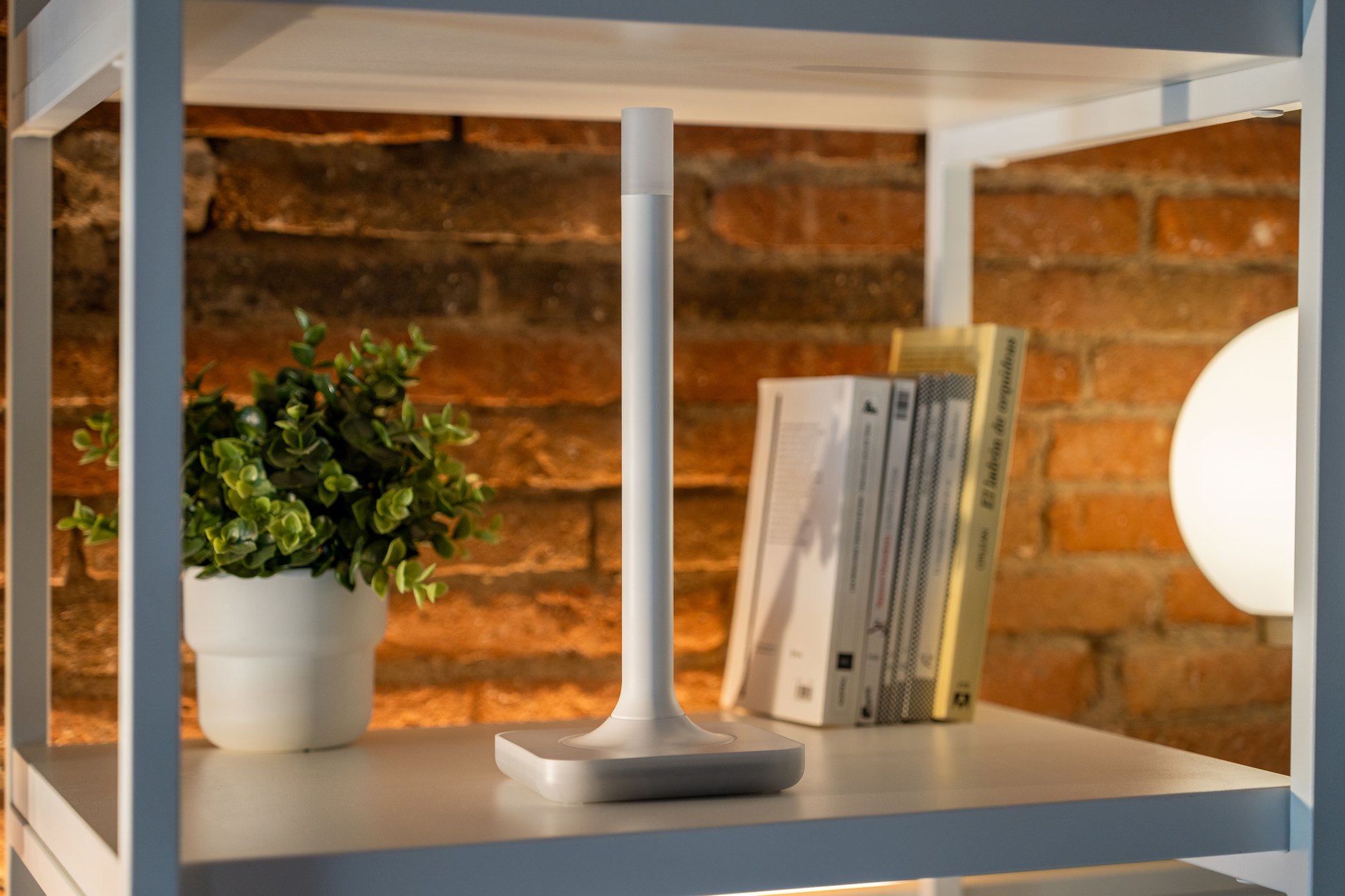

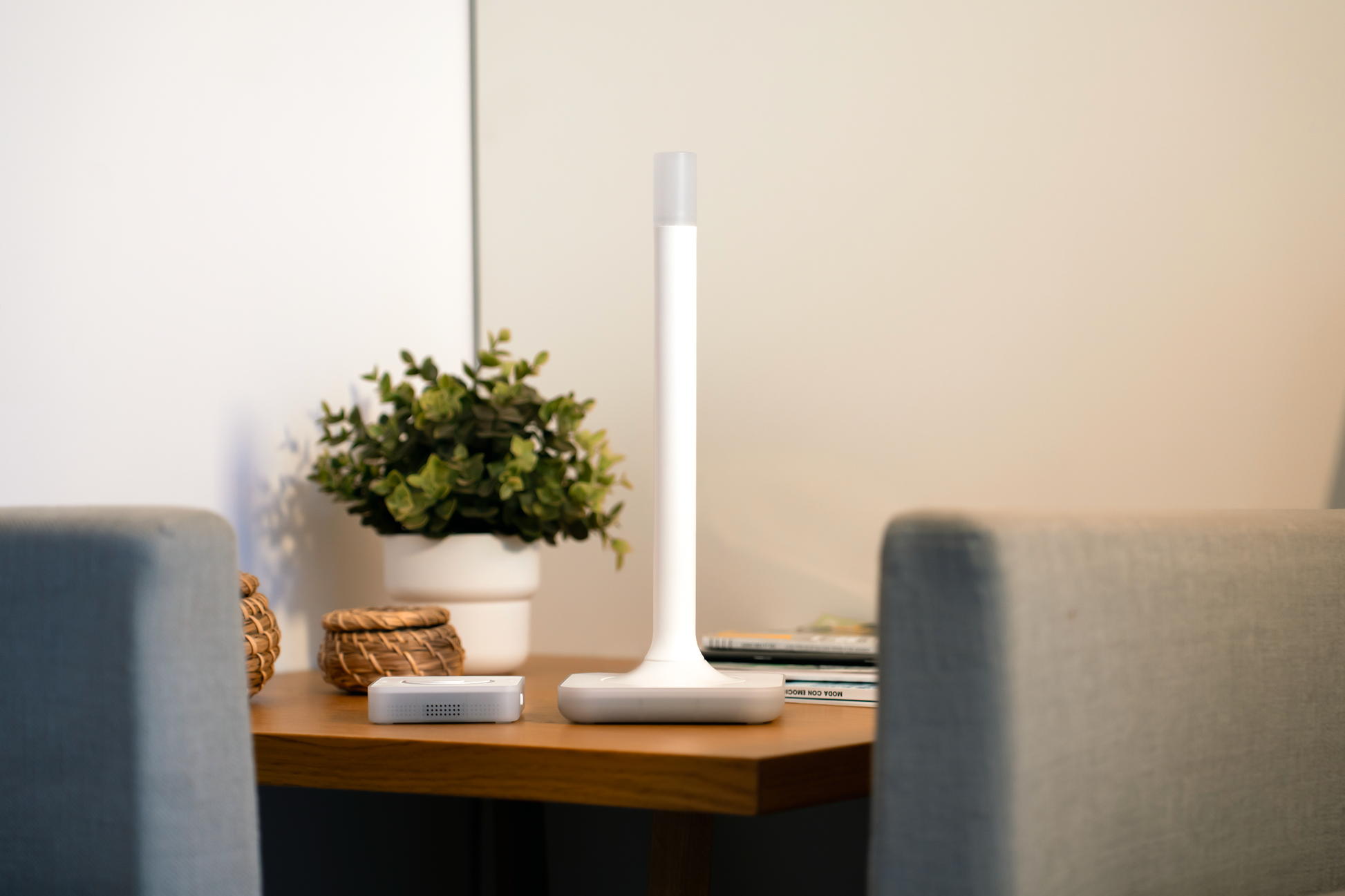

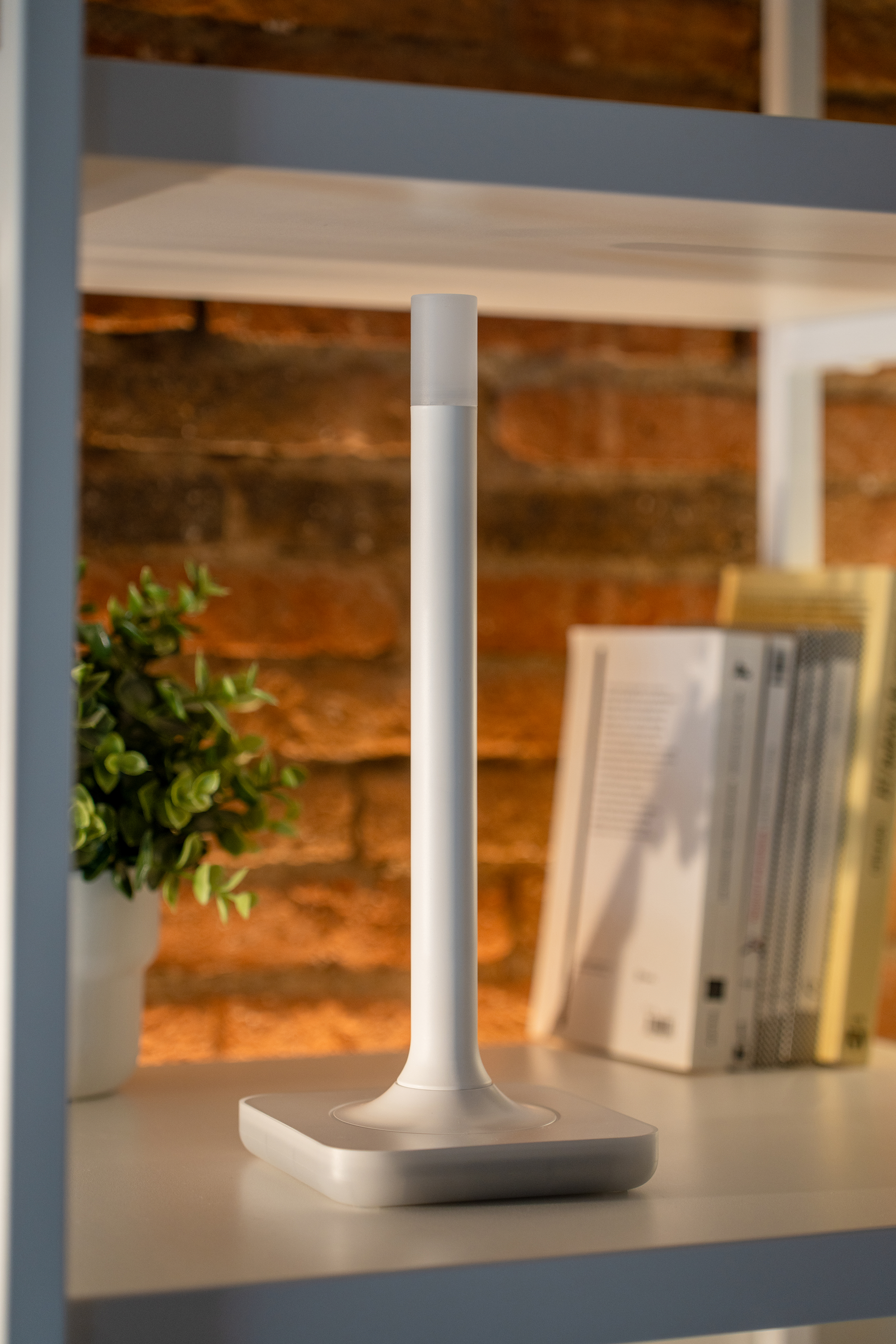

  • 🕯️ DESIGNED FOR THE HOME – From its injection molded case, to sleek lines, it's designed to blend into home decor. It not only resembles a candle, but it also lights up like one.

*At launch, Z-Wave Long Range had limited device support outside North America, but this will expand soon.

KEY FEATURES

  • In the box: Antenna, Base, USB-Cable (USB 2.0/3.0), Quickstart guide.
  • Supporting devices: Z-Wave 800 and older (including Z-Wave Plus and Plus V2), Z-Wave Long Range (only in EU and US).
  • Supported features: Security 2 (S2), SmartStart, Over-the-Air (OTA) Firmware Updates, Over-the-Wire (OTW) firmware updates.
  • Supported regions: All Z-Wave regions, including US, EU, and AU. Long Range support currently includes only the US and EU regions.

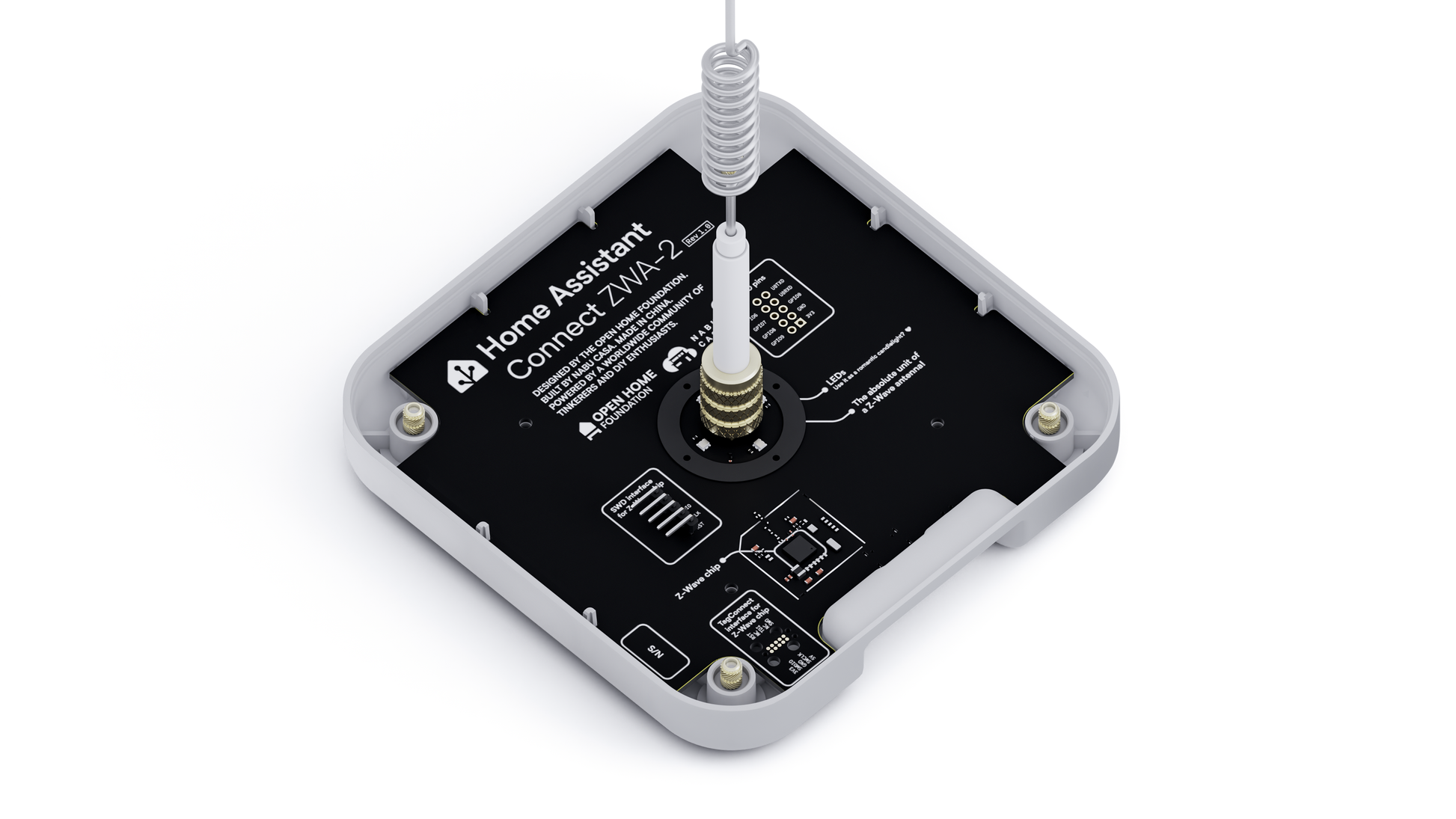

  • Chips inside: Silicon Labs ZG23 (Z-Wave 800 series chip) and ESP32-S3 (USB-serial bridge).

SPECIFICATIONS



Product Information
Model No. NC-ZWA-9734
Conformity CE, FCC, RCM
FCC-ID 2A8ZE05
Origin Made in China
Product Details
SoCs Silicon Labs ZG23
ESP32-S3 (USB-serial bridge)

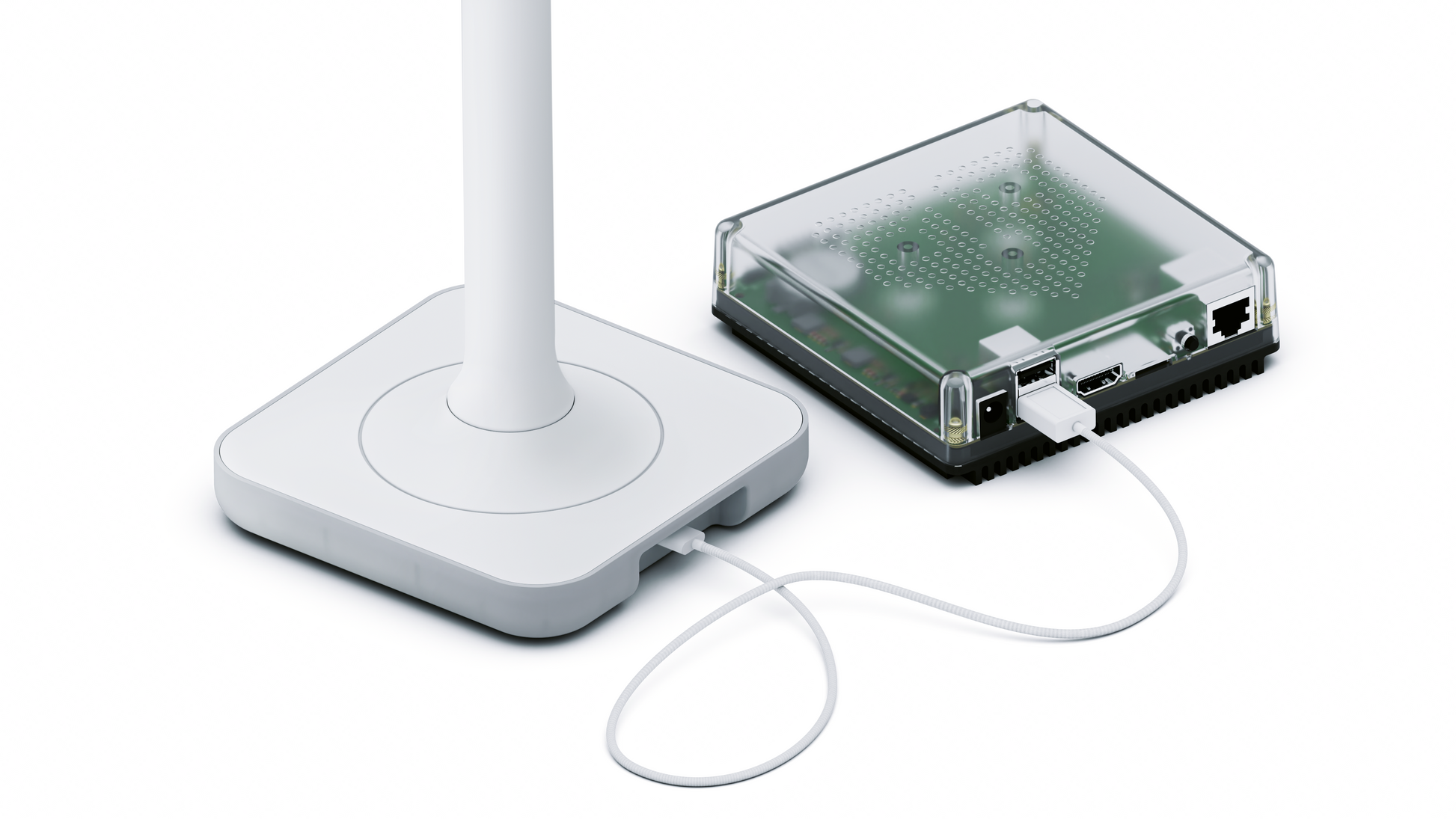

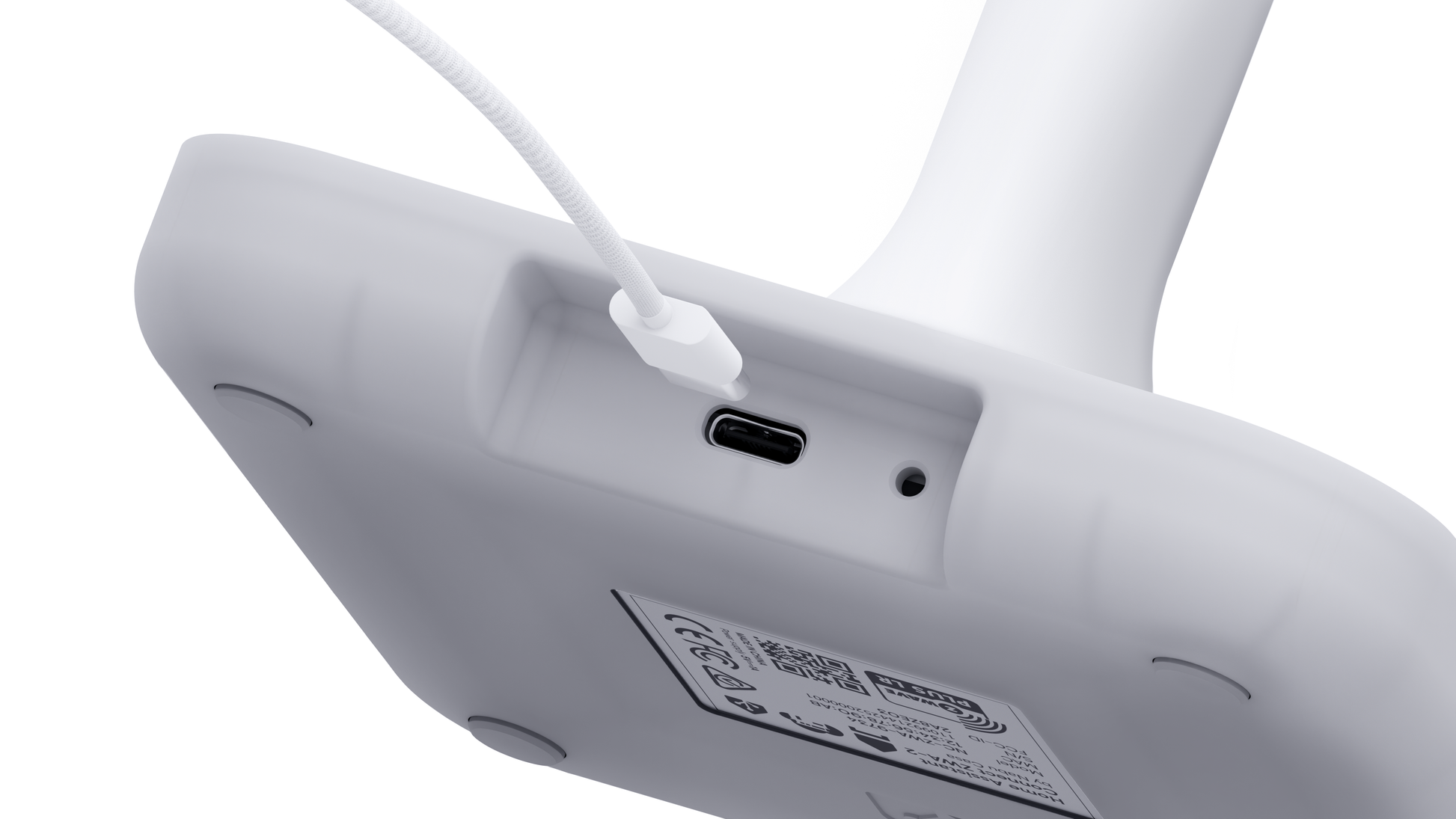

Power and Data USB-C, 5 V DC, 1 A
Supported Protocols Z-Wave, Z-Wave Long Range
Z-Wave Series 800
Antenna Characteristics
Frequency Range 860-930 MHz
The frequency used by end devices depends on the region, e.g:
US: 908.42/916 MHz (mesh) 912/920 MHz (LR)
EU: 868.4/869.85 MHz (mesh), 864.0/866.0 MHz (LR)
AU: 919.8/921.4 MHz
Peak Gain 3.38 dBi
Radiation Pattern Omnidirectional
Device Characteristics
Dimensions & Weight 125x125x315 mm, 350 g
With box: 345x222x45 mm, 600 g
Material Enclosure: Polycarbonate plastic
Colors: White and semi-transparent
Environmental Conditions for Operation
Usage Indoor use only
Temperature 0 °C to 65 °C
32 °F to 149 °F
Humidity Non-condensing
Additional Notes Keep in dry, not excessively dusty environment, as this can cause damage to the unit.
Do not leave the unit in direct sunlight or near any heat source, as this can cause overheating.
