100W Renogy RNG-100D-SS Monocrystalline

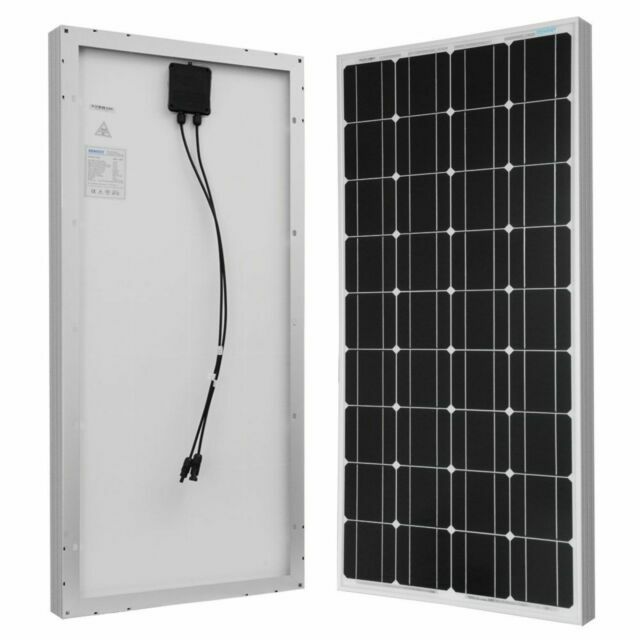

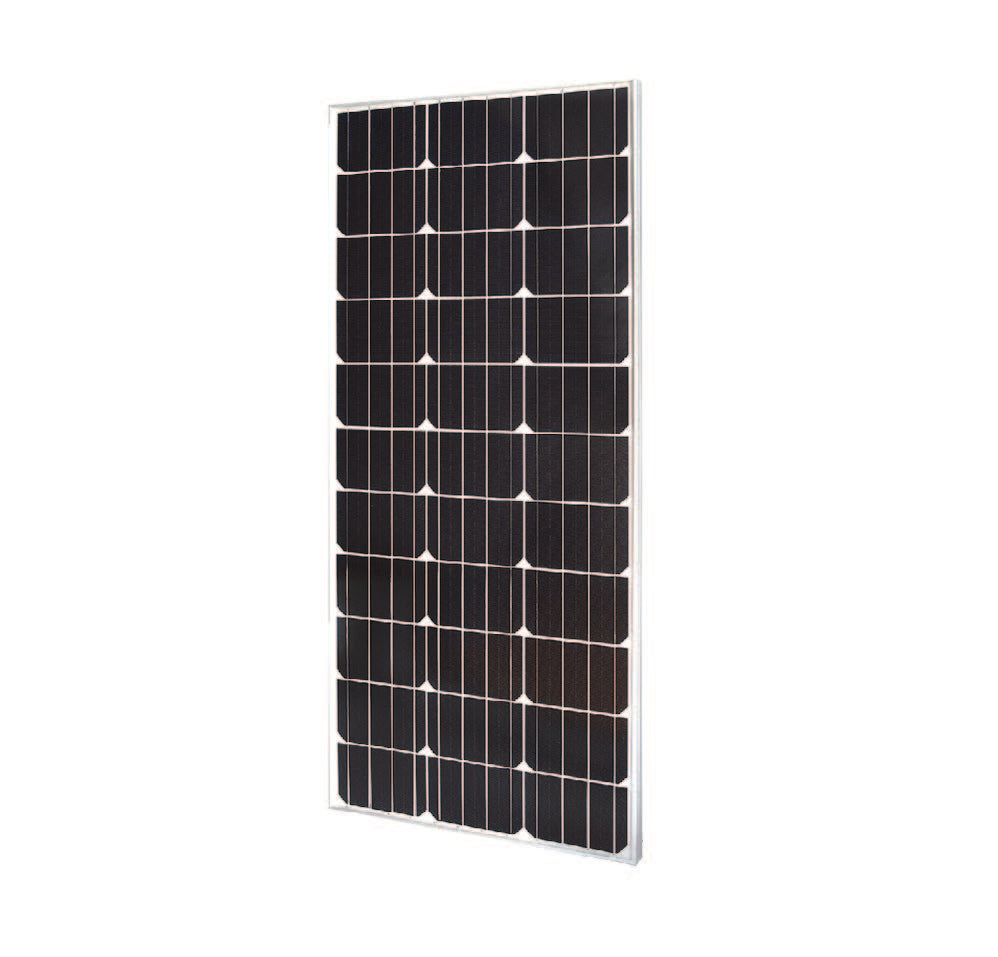

Renogy 100W Monocrystalline Solar Panel (RNG-100D-SS)

The Renogy 100W Monocrystalline Solar Panel (RNG-100D-SS) is a compact, high-efficiency solar panel designed for off-grid applications. With a sleek design, durable aluminum frame, and excellent power density, it is ideal for RVs, cabins, boats, and small solar systems. Fully compatible with 12V and 24V battery systems when used with an appropriate charge controller.

KEY FEATURES

• 100W Monocrystalline Cells: High efficiency and reliable power output
• Compact Design: Excellent power-to-size ratio for space-limited installations
• Durable Construction: Tempered glass and anodized aluminum frame
• MC4 Connectors: Industry-standard plug-and-play connections
• IP65 Junction Box: Weather-resistant and reliable
• 100% EL Tested: Ensures no hot spots and consistent quality
• Long Warranty: 25-year power output warranty + 5-year material and workmanship warranty

SPECIFICATIONS

Electrical Data (STC):

• Maximum Power (Pmax): 100W
• Optimum Operating Voltage (Vmp): 17.9V
• Optimum Operating Current (Imp): 5.72A
• Open Circuit Voltage (Voc): 21.6V
• Short Circuit Current (Isc): 6.24A
• Cell Efficiency: 21.0%
• Maximum System Voltage: 600 VDC (UL)
• Maximum Series Fuse Rating: 15A

Mechanical Data:

• Solar Cell Type: Monocrystalline
• Number of Cells: 33 (3 × 11)
• Dimensions: 42.2 × 19.6 × 1.38 in (1074 × 498 × 35 mm)
• Weight: 16.5 lbs (7.5 kg)
• Front Glass: Tempered Glass (0.13 in / 3.2 mm)
• Frame: Anodized Aluminum Alloy
• Connectors: MC4
• Output Cables: 12 AWG (2.10 ft long)
• Junction Box: IP65, with 2 diodes

Thermal Characteristics:

• Operating Temperature: -40°C to +80°C
• Nominal Operating Cell Temperature (NOCT): 47 ± 2°C
• Temperature Coefficient of Pmax: -0.44%/°C
• Temperature Coefficient of Voc: -0.30%/°C
• Temperature Coefficient of Isc: 0.04%/°C

Other:

• Fire Rating: Class C
• Certifications: CE, TUV, ISO 9001, cETLus

What's Included:

• 1 × Renogy 100W Monocrystalline Solar Panel (RNG-100D-SS)

NOTES

• Ideal for 12V and 24V off-grid systems (use with a compatible charge controller)
• Common applications include RVs, cabins, boats, water pumping, signaling systems, and portable solar setups
• Multiple panels can be connected in parallel or series depending on system voltage and current requirements
• Mounting brackets and hardware are sold separately
