16x2 LCD with I2C Module
16x2 LCD with I2C Module
Thank you for supporting a US-based small business!
In stock
Couldn't load pickup availability
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼
KEY FEATURES
- White characters on blue backlight 16×2 character LCD
- Integrated I2C backpack (PCF8574) for simple 4-wire communication
- Onboard potentiometer for contrast adjustment
- Pre-assembled — I2C module is soldered to the LCD
- Compatible with Arduino, Raspberry Pi, ODROID boards, ESP32/ESP8266, and most other 5V I2C microcontrollers / SBCs
INCLUDES
- (1) 16x2 LCD module and LCD I2C interface module (pre-assembled)
SPECIFICATIONS
- Display format: 16 characters × 2 lines
- Controller: HD44780 compatible
- Character matrix: 5 × 8 dots
- Interface: I2C (typically PCF8574)
- Operating voltage: 5V
- Typical I2C address: 0x27 or 0x3F (scan to confirm)
- Pinout: VCC, GND, SDA, SCL
- Approximate dimensions: 80 × 36 mm
NOTES
- Jumper wires required, but not included, for connecting to breadboard, SBC or microcontroller
- The I2C address can vary between modules. Use an I2C scanner sketch to identify the correct address before use.
- Power the module from a 5V supply for reliable operation and full backlight brightness.
LINKS
- Arduino Tutorial (recommended): https://lastminuteengineers.com/i2c-lcd-arduino-tutorial/
- Raspberry Pi Setup: https://www.circuitbasics.com/raspberry-pi-i2c-lcd-set-up-and-programming/
- ESP32 / ESP8266 Guide: https://randomnerdtutorials.com/esp32-esp8266-i2c-lcd-arduino-ide/
- ODROID-C2 Example: https://wiki.odroid.com/odroid-c2/application_note/gpio/16x2lcd_c2
-

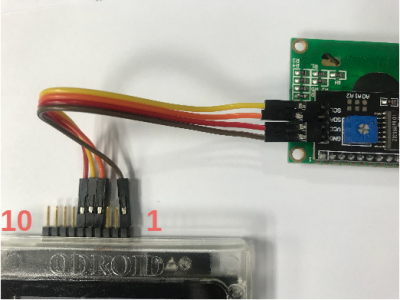

ODROID-GO Arduino Example (existing): https://wiki.odroid.com/odroid_go/arduino/09_16x2lcd_i2c#hardware_setup
Warranty is valid for two weeks, starting upon date of receipt.
