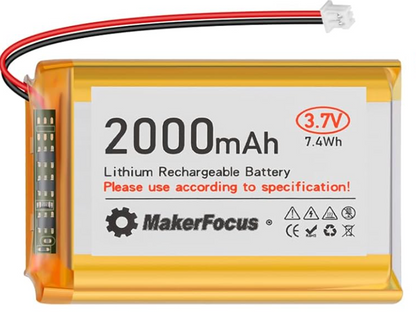

3.7V 2000mAh 103450 LiPo Battery w/ JST 1.25 Connector
3.7V 2000mAh 103450 LiPo Battery w/ JST 1.25 Connector
Thank you for supporting a US-based small business!
In stock
Couldn't load pickup availability
🎄 Sending this as a gift?
Add gift wrapping to this order for $6.95. Pricing is left out of the package.
Free standard shipping on US orders over $150
Cart: $29.95 — add $120.05 more for free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼
The 3.7V 2000mAh 103450 LiPo Battery w/ JST 1.25 Connector is a compact drop-in battery for Heltec Vision Master Tracker V2, Wireless Tracker, Wireless Paper, and other ESP32/LoRa boards. It is about 50 x 34 x 10 mm (103450), so it fits slim cases built for this cell size. Red is positive (+) and black is negative (-). Always check polarity before connecting, because JST 1.25 polarity can vary between brands.
KEY FEATURES
- 2000mAh (7.4Wh) compact 103450 cell
- 3.7V 1S LiPo with a Micro JST 1.25mm 2-pin (SH1.25) connector
- About 50 x 34 x 10 mm (103450), sized for slim cases
- Built-in protection circuit
- 1C discharge rate; recommended charge current 0.4A (max 2A)
- Polarity marked: red = +, black = -
- A compact option for Meshtastic, LoRa tracking, and e-paper projects
SPECIFICATIONS
| Chemistry | Lithium Polymer (LiPo) |
| Configuration | 3.7V 1S |
| Nominal voltage | 3.7V |
| Capacity | 2000mAh (7.4Wh) |
| Cell size | About 50 x 34 x 10 mm (103450) |
| Connector | Micro JST 1.25mm 2-pin (SH1.25) |
| Polarity | Red = +, black = - |
| Protection | Built-in protection circuit |
| Discharge rate | 1C |
| Recommended charge current | 0.4A (max 2A) |
| Recommended discharge current | 1A (max 2A) |
| Working current | 1.5A (per MakerNova) |
| Overcurrent protection | 1.8A to 2.1A (per MakerNova) |
Compatibility
Directly compatible with:
- Heltec Wireless Tracker V2
- Heltec Wireless Paper
- Vision Master E213 / E290 e-paper boards
- Heltec V3, V4, T114, and T096
- LILYGO T-Deck
- Most ESP32 LoRa development boards using an SH1.25 connector
What's Included
- (1) 3.7V 2000mAh 103450 LiPo battery with JST 1.25 connector
NOTES
- This 103450 cell fits slim cases built for this size, including the Heltec Wireless Tracker V2, Vision Master E213, and Wireless Paper slim cases, and the official T114 shell.
- For longer runtime in roomier cases, such as the T-Deck, larger Heltec V3/V4 cases, and some E290 cases made for 3000mAh cells, see the 3.7V 3000mAh 103665 LiPo battery.
- Always check polarity before connecting. JST 1.25 polarity varies between brands. Red = +, black = -. Reversed polarity can damage the board or the battery. Heltec boards usually include an extra loose SH1.25 connector if needed.
- This battery is not for the ODROID-GO, which uses a Molex 51021 connector.
- Lithium batteries ship by ground service only.
- Official product page: MakerNova 2000mAh LiPo Battery with JST 1.25.
