5-Terminal Add-on (Accessory for The Pill by Shelly)
5-Terminal Add-on (Accessory for The Pill by Shelly)
Thank you for supporting a US-based small business!
In stock
Couldn't load pickup availability
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼

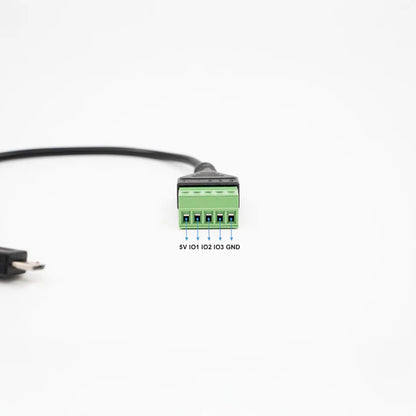

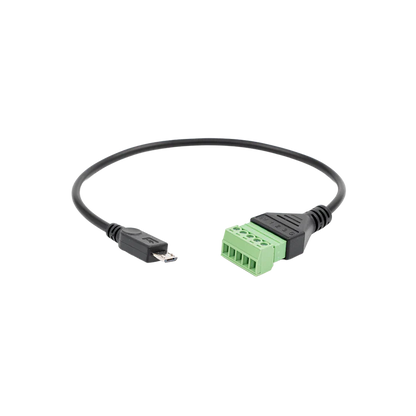

Interface module for The Pill by Shelly providing power, ground, and three configurable I/O terminals. Perfect for connecting sensors, buttons, or other control elements in any setup.
*5-Terminal Add-on is sold separately from The Pill by Shelly.
KEY FEATURES
- 3 configurable Inputs/Outputs (3.3 V logic-level)
- Supports digital inputs/outputs, analog input, and temperature sensors (DS18B20, DHT22)
- 5 V power and GND terminals for connected devices
- Compact interface for prototyping and integration
- Required base module for other The Pill by Shelly add-ons
| Specification | Value |
|---|---|
| Physical | |
| Size (HxWxD) | 44 mm x 23 mm x 10mm |
| Weight | 23 g |
| Cable length | 24 cm |
| Wire colors | Black |
| Shell color | black |
| Environmental | |
| Ambient working temperature | 0 to 40 °C / 32 to 105°F |
| Storage temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
