60A MPPT Charge Controller with BREAKERS and Backing Board Included

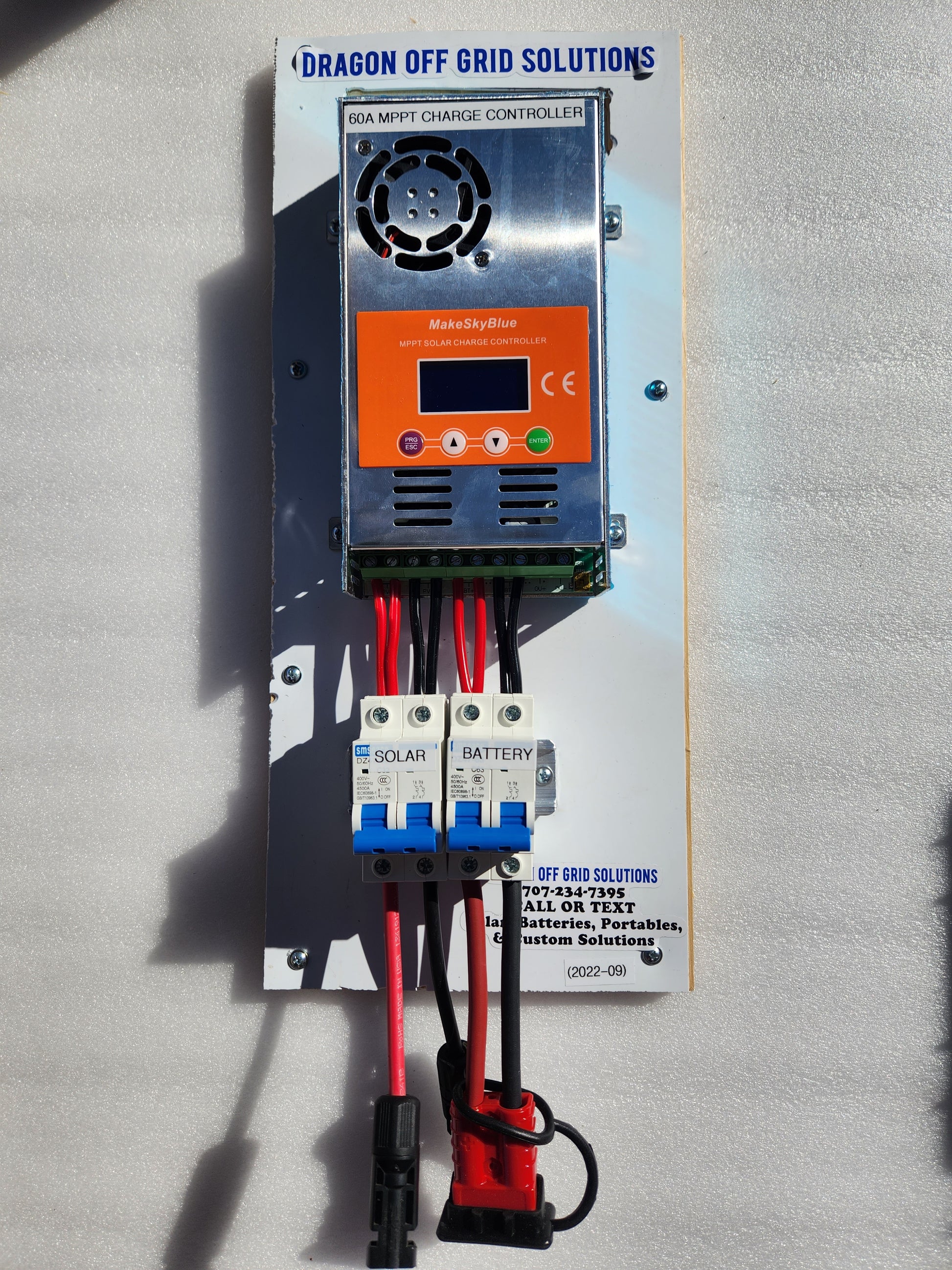

Dragon Off Grid Portable 60A MPPT Charge Controller

The Dragon Off Grid Portable 60A MPPT Charge Controller is designed for maximum flexibility and ease of use. Its portable form factor, quick-disconnect connectors, and included breaker set make it simple to connect, disconnect, and move your solar system whenever needed. Featuring high-efficiency MPPT technology, automatic voltage detection (12V/24V/36V/48V), and an LCD display, this controller is ideal for both permanent and portable off-grid setups.

KEY FEATURES

• 60A High-Efficiency MPPT: Significantly more efficient than traditional PWM controllers
• Fully Portable Design: Easy to disconnect and relocate your entire solar system
• Quick Disconnect Battery Cable: 4 ft cable with 50A Anderson-style RED connector included
• Included Breaker Set: One of the few controllers on the market that includes breakers
• Standard MC4 Solar Input: Plug-and-play connection for solar panels
• Automatic Voltage Detection: Works with 12V, 24V, 36V, and 48V battery banks
• LCD Display: Shows real-time power input and system information
• 3-Stage Charging: Optimizes battery performance and lifespan
• Wide Battery Compatibility: Lead-acid, vented, gel, and lithium batteries
• Multiple Protections: Overcharge, over-temperature, and output current limiting

SPECIFICATIONS

Charge Controller:

• Type: 60A MPPT
• Technology: High-performance DSP controller
• Charging Stages: 3-stage
• Voltage Accuracy: ±0.2V
• MPPT Tracking: Approximately 5× faster than traditional controllers

Supported Battery Voltages:

• 12V / 24V / 36V / 48V (automatic detection)

Maximum Input Power:

• 12V Battery: ≤ 720W
• 24V Battery: ≤ 1440W
• 36V Battery: ≤ 2100W
• 48V Battery: ≤ 2800W

PV Module Open Circuit Voltage (Voc):

• 12V System: DC 20V – 80V
• 24V System: DC 37V – 105V
• 36V System: DC 50V – 160V
• 48V System: DC 72V – 160V

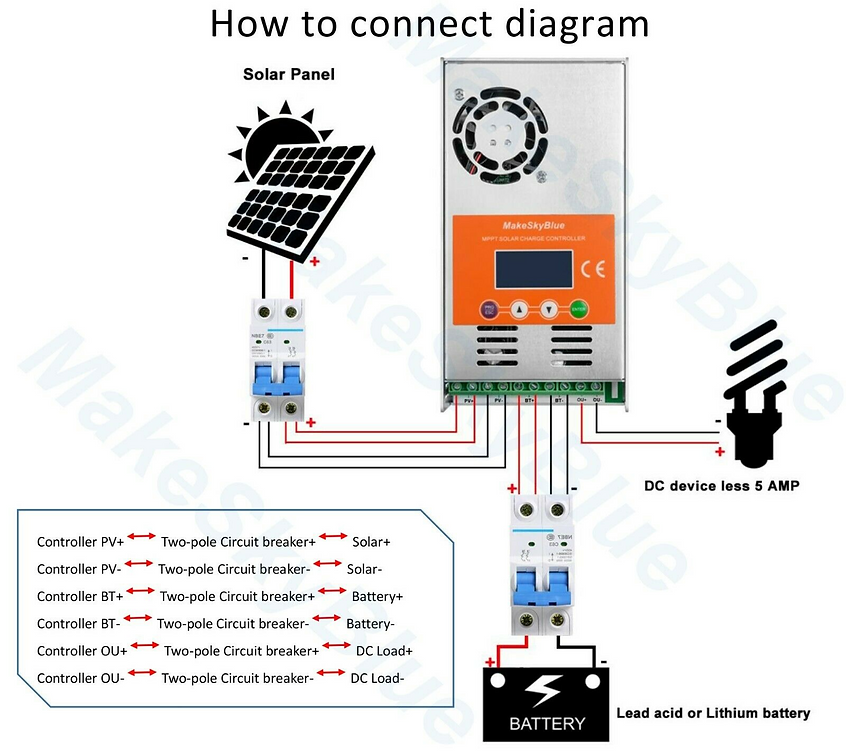

Connections:

• Battery: 50A Anderson-style RED connector (removable for bare wire terminals)
• Solar Input: Standard MC4 connectors (removable for bare wire terminals)

Physical:

• Dimensions: 18 × 8 × 4 inches
• Weight: 5 lbs (2.27 kg)

Protections:

• Output limited current protection
• Overcharge protection
• Over-temperature protection

What's Included:

• 1 × 60A MPPT Charge Controller (portable unit)
• 1 × 4 ft Quick-Disconnect Battery Cable (50A Anderson-style)
• Breaker Set

NOTES

• Solar panel wiring/cables are sold separately
• Designed for easy portability — ideal for users who want to move or reconfigure their solar system frequently
• Compatible with a wide range of battery types including lithium and various lead-acid chemistries
• Free consulting on your solar or battery project is included with purchase
• Fully portable kits are also available
