AI Camera Development Board Vision Sensor Board Powered By ESP32 with 1.83inch Screen

Note: This is the Elecrow AI Camera Development Board — a compact ESP32-S3 powered vision sensor board with a 1.83-inch capacitive touchscreen, 2MP camera, microphone, speaker, and RGB lighting. Perfect for face recognition, object detection, AI vision projects, smart security, and interactive IoT applications.

The AI Camera Development Board is an intelligent vision sensor platform based on the ESP32-S3. It combines a high-performance dual-core processor, 2MP camera, touchscreen display, audio system, and wireless connectivity in a compact acrylic enclosure. Ideal for education, makers, robotics, and industrial recognition projects with built-in AI algorithms for face recognition, object detection, and more.

KEY FEATURES

• ESP32-S3 Dual-Core Processor: High-performance Xtensa LX7 dual-core up to 240 MHz with 8MB PSRAM and 16MB Flash.

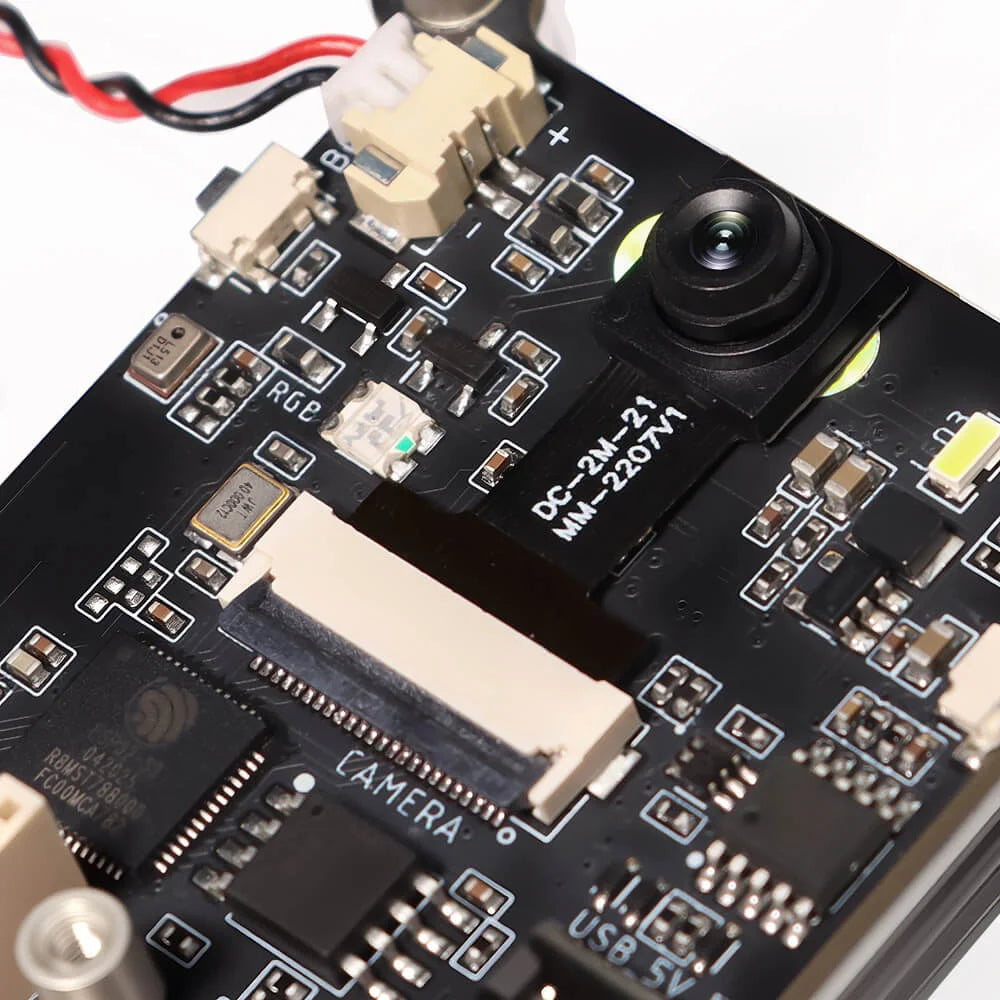

• 2MP Camera: GC2145 sensor for clear image capture, face recognition, object detection, and motion tracking.

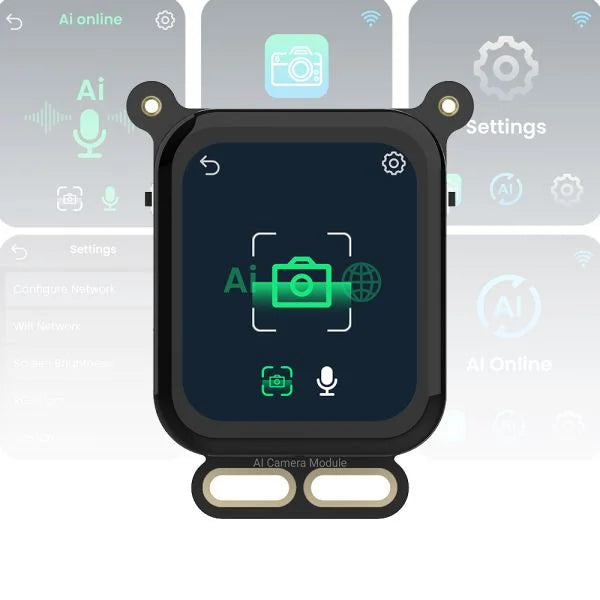

• 1.83-inch Capacitive Touchscreen: 240×280 resolution IPS display for real-time preview and easy interaction.
• Audio System: Built-in MEMS microphone and speaker for voice commands and intercom functionality.
• RGB Ambient Lighting: Programmable RGB LEDs for visual feedback and status indication.
• Wireless Connectivity: Wi-Fi and Bluetooth 5.0 for wireless control, data transmission, and cloud integration.
• Rich Interfaces: UART, I2C, BAT interface, and expansion support for Arduino, Raspberry Pi, and other modules.

SPECIFICATIONS

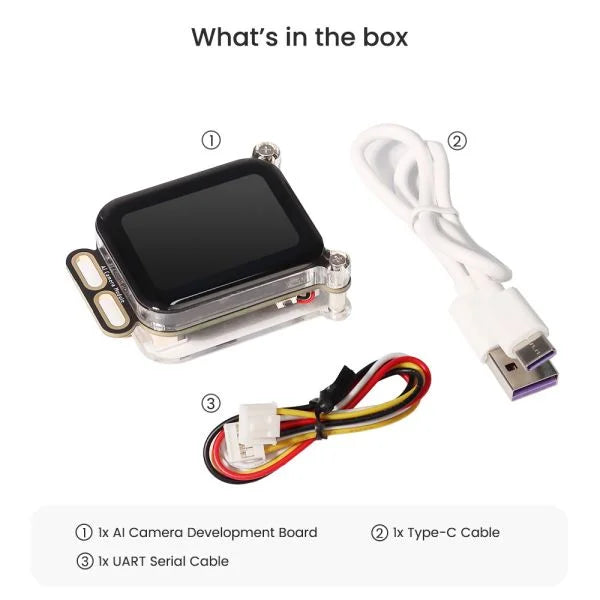

WHAT'S INCLUDED

• 1 × AI Camera Development Board with 1.83" Screen
• 1 × Type-C Cable
• 1 × UART Serial Cable


NOTES

• Great for face recognition, object classification, motion detection, smart security, and educational AI projects.
• Supports local AI recognition and cloud-based inference.
• Expandable via UART and other interfaces for integration with Arduino, Raspberry Pi, etc.
