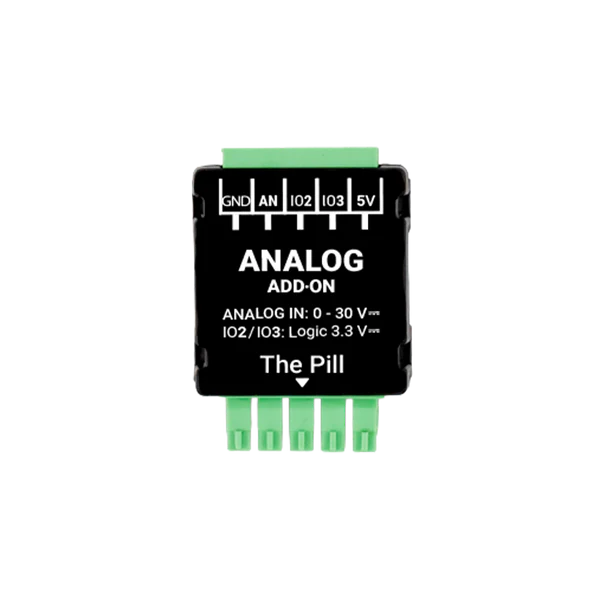

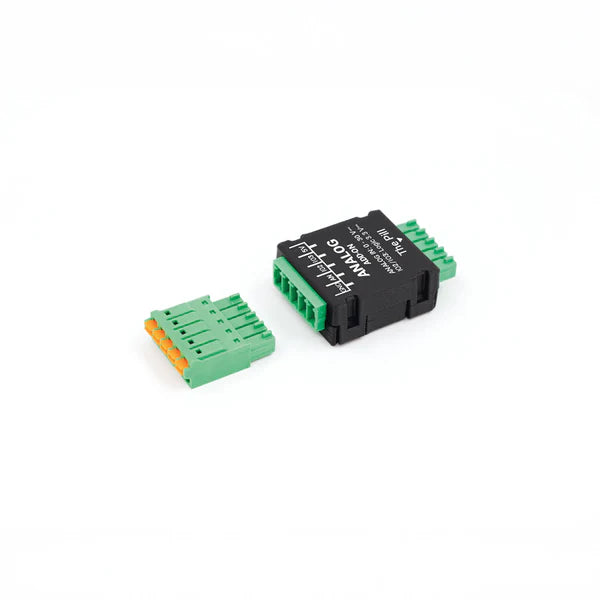

Analog 0-30 V Add-on (Accessory for The Pill by Shelly)
Analog 0-30 V Add-on (Accessory for The Pill by Shelly)
Thank you for supporting a US-based small business!
In stock
Couldn't load pickup availability
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼
KEY FEATURES
- Measurement range: 0-30 V DC
- Extends The Pill’s measurement range for sensors and batteries
- Compatible via 5-Terminal Add-on
- 1 Analog Input (AN) + 2 configurable Digital IOs (3.3 V logic)
- 5 V power output for connected sensors
|
Physical |
|
|
Size (HxWxD): |
36.5 mm x 26.5 mm x 11.5 mm |
|
Weight: |
8 g |
|
Shell color: |
Black |
|
Environmental |
|
|
Ambient working temperature: |
0 to 40 °C / 32 to 105°F |
|
Storage temperature: |
-20°C to 40°C / -5°F to 105°F |
|
Humidity: |
30 % to 70 % RH |
|
Max. altitude: |
2000 m / 6562 ft |
|
Sensors, meters |
|
|
Voltmeter range (DC) |
0 V - 30 V |
|
Voltmeter accuracy: |
±(2% + 5d) |
|
Input circuits ratings |
|
|
Digital inputs triggering voltage: |
Active LOW; Trigger low: < 0.83 V Trigger high: > 2.48 V |
|
Digital inputs max. voltage |
3.3 V |
|
Output circuits ratings |
|
|
Max. switching voltage: |
3.3 V (logic-level) |
|
Max. switching current: |
20 mA |
