Aqara Multi-State Sensor P100
Aqara Multi-State Sensor P100
Thank you for supporting a US-based small business!
In stock
Couldn't load pickup availability
🎄 Sending this as a gift?
Add gift wrapping to this order for $6.95. Pricing is left out of the package.
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼
The Aqara Multi-State Sensor P100 is a compact, single-piece multi-function sensor that eliminates the alignment issues of traditional two-piece door sensors. It offers two operating modes: Open/Close Monitoring (available in both Thread and Zigbee) and advanced Object Monitoring (Zigbee only, requires Aqara hub). Perfect for doors, windows, drawers, valuables protection, elder/pet care, and custom automations in Home Assistant and other platforms.
KEY FEATURES
- Dual-Protocol Support: Matter-over-Thread and Zigbee — works with Apple Home, Google Home, Alexa, SmartThings, Home Assistant, and Aqara hubs.

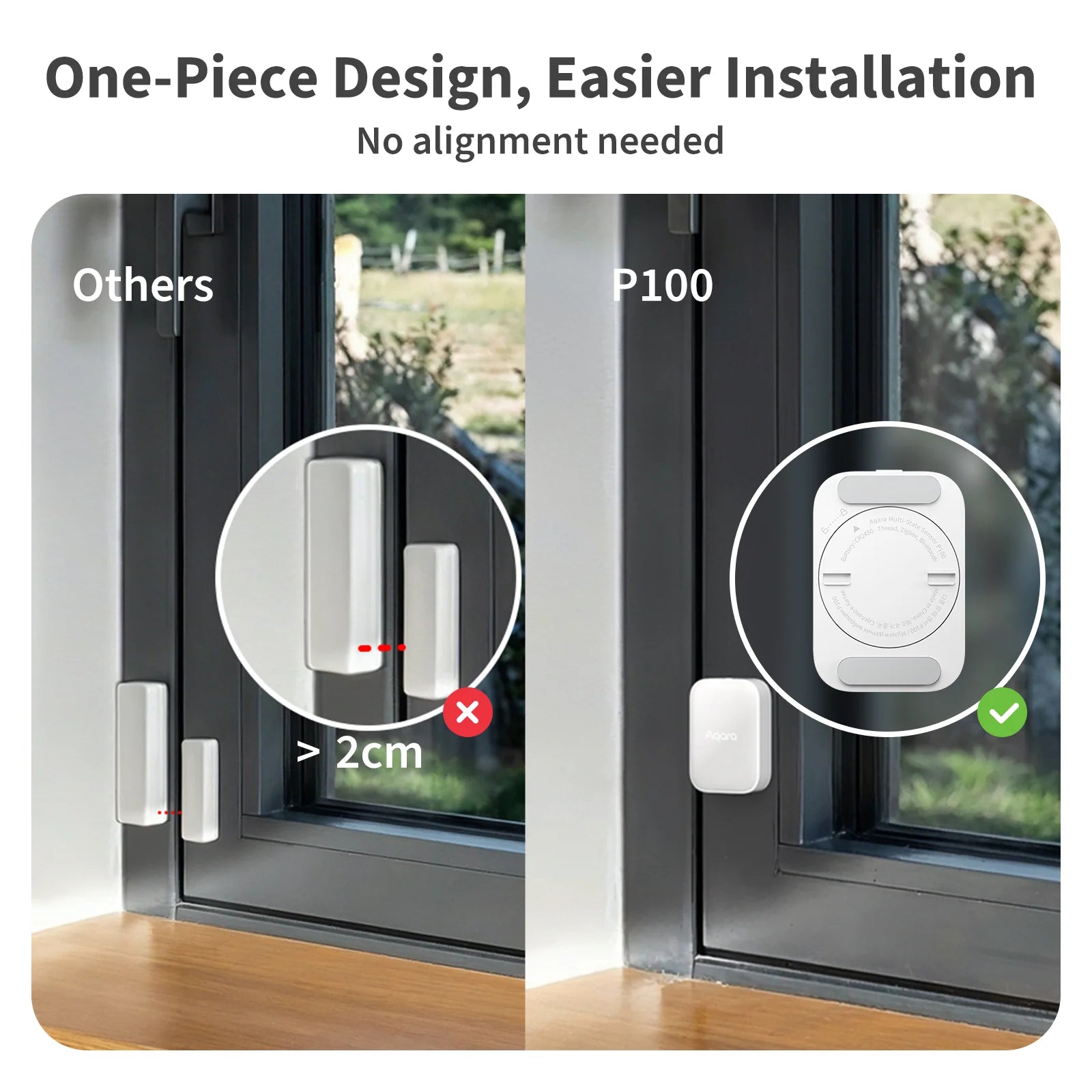

- One-Piece Design: No alignment needed. Simply peel and stick to any flat surface for reliable open/close detection even on sagging doors/windows.

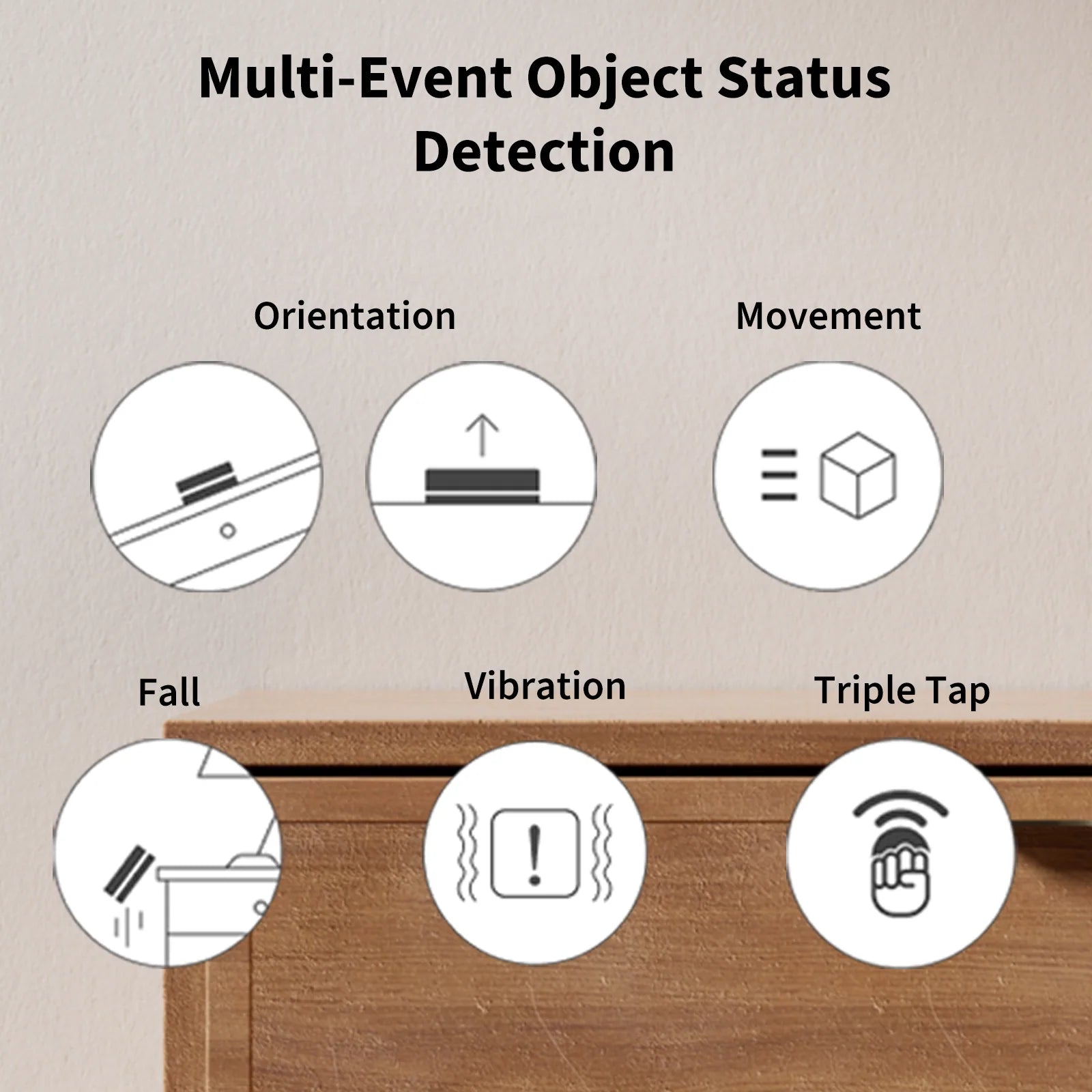

- Advanced Object Monitoring (Zigbee): Detects movement, tilt, vibration, fall, orientation, and triple tap with 10 adjustable sensitivity levels and AI self-learning calibration.
- Smart Automations: Create context-aware automations based on specific events (e.g., mailbox delivery, drawer access, medication reminders, or anti-tamper alerts).
- Long Battery Life: Up to 2–3 years on a single CR2450 battery (Zigbee mode).

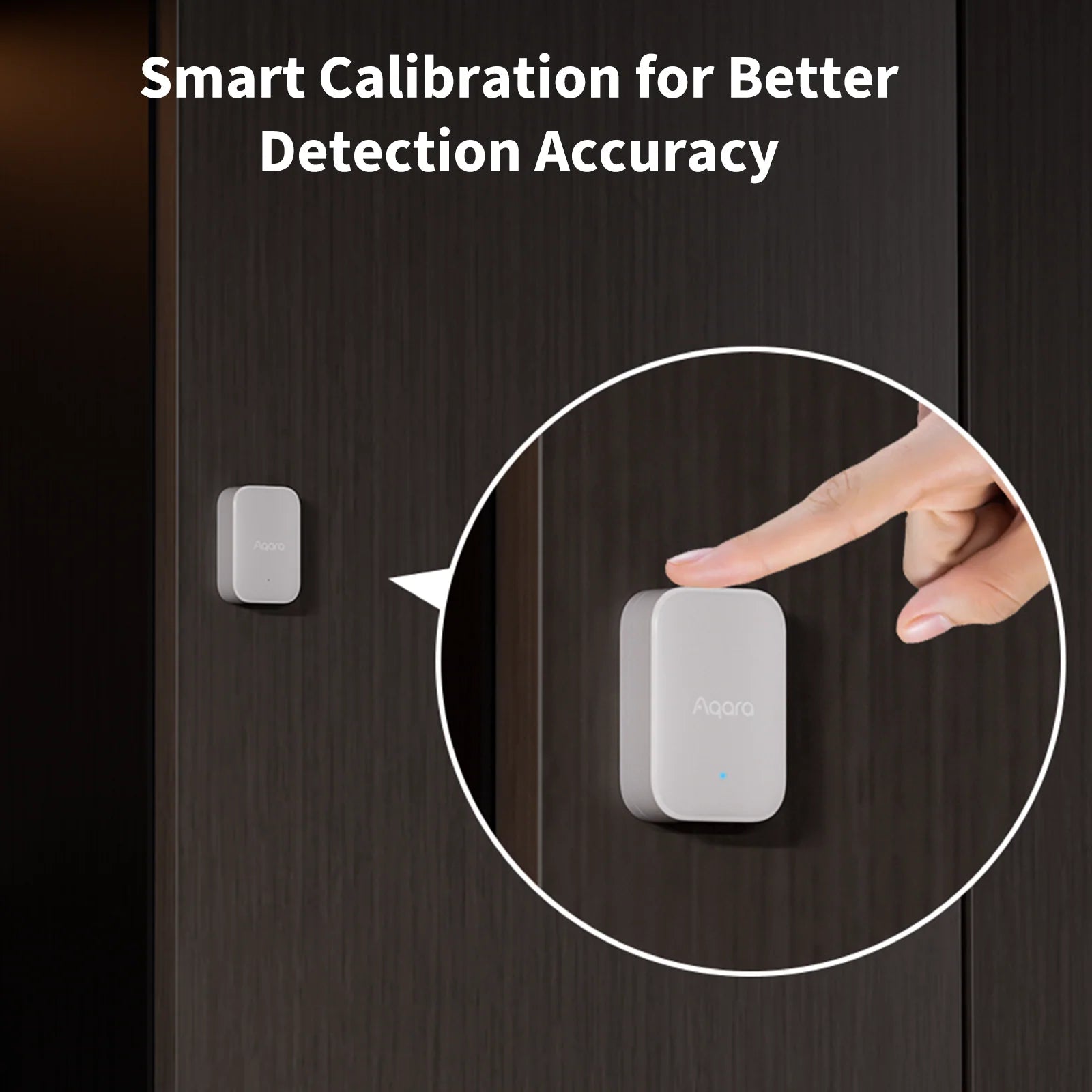

- Easy Installation & Calibration: Quick 3-tap calibration and flexible mounting for indoor use.
SPECIFICATIONS
| Product Name | Aqara Multi-State Sensor P100 |
| Model | VB-S03E / VB-S03D |

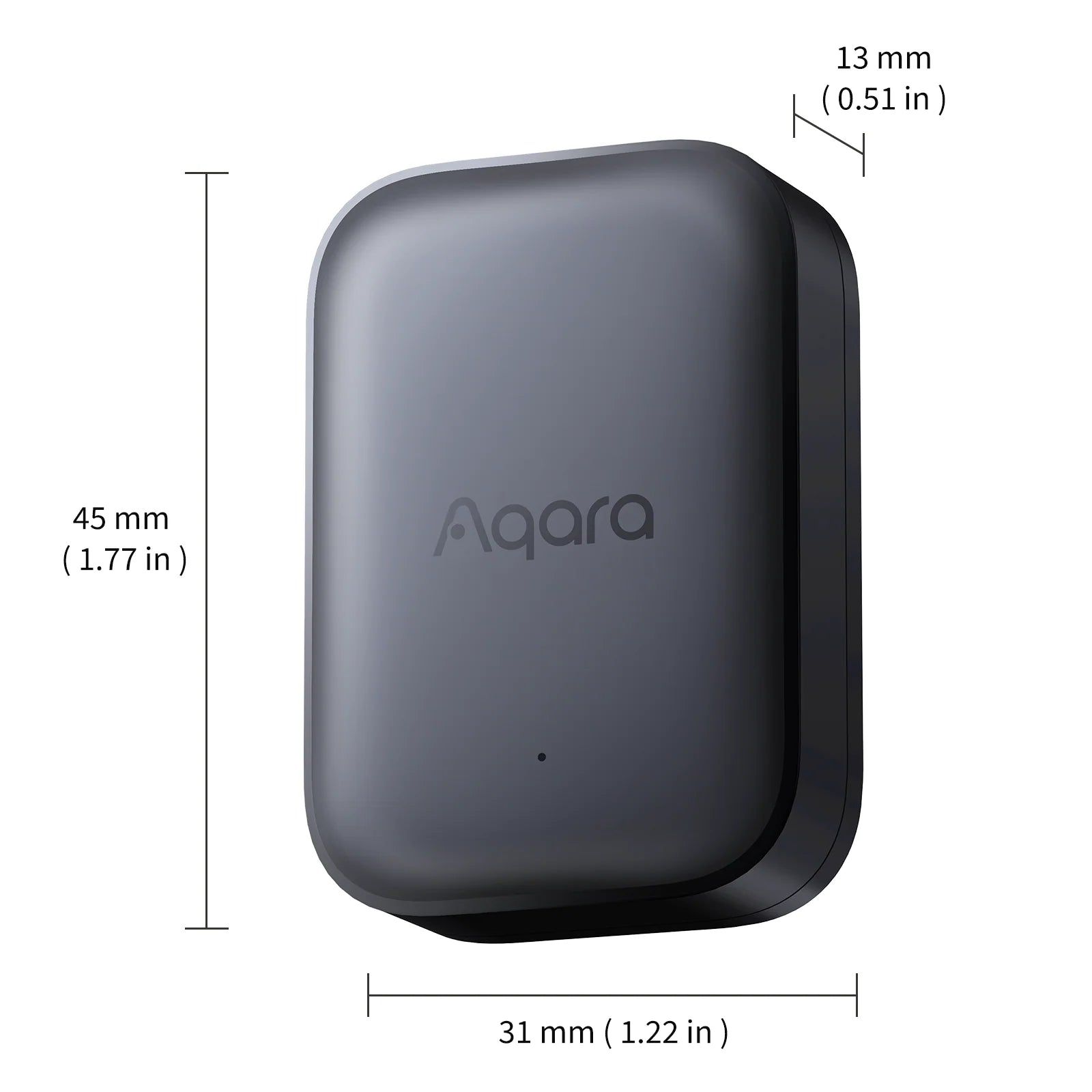

| Dimensions | 45 × 31 × 13 mm (1.77 × 1.22 × 0.51 in.) |
| Weight | ~18 g (with battery) |
| Connectivity | Matter-over-Thread, Zigbee 3.0, Bluetooth |
| Power Supply | 1 × CR2450 3V Lithium battery (included) |
| Battery Life | Up to 2–3 years (Zigbee) / 1–1.5 years (Thread) |
| Sensors | 9-axis (Accelerometer + Gyroscope + Geomagnetic) |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Operating Humidity | 0 ~ 95% RH (non-condensing) |
| Compatibility | Home Assistant, Apple Home, Google Home, Alexa, SmartThings, Aqara |
WHAT'S INCLUDED
- 1 × Aqara Multi-State Sensor P100 (Gray)
- 1 × CR2450 Battery (pre-installed)
- Adhesive Pads (×2)
- User Manual
NOTES
- Object Monitoring mode requires Zigbee protocol and an Aqara hub (except certain camera hubs).
- Indoor use only — avoid direct rain exposure.
- Only one monitoring mode can be active at a time.
- Excellent for doors/windows, drawers, mailboxes, valuables protection, elder/pet care, and anti-tamper applications.
