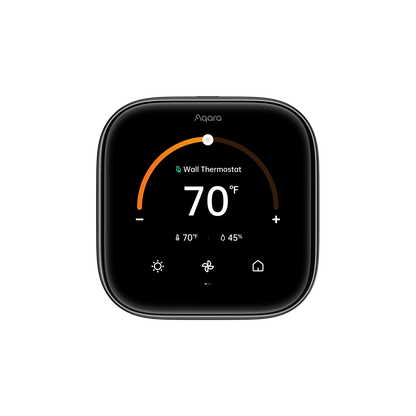

Aqara Thermostat Hub W200

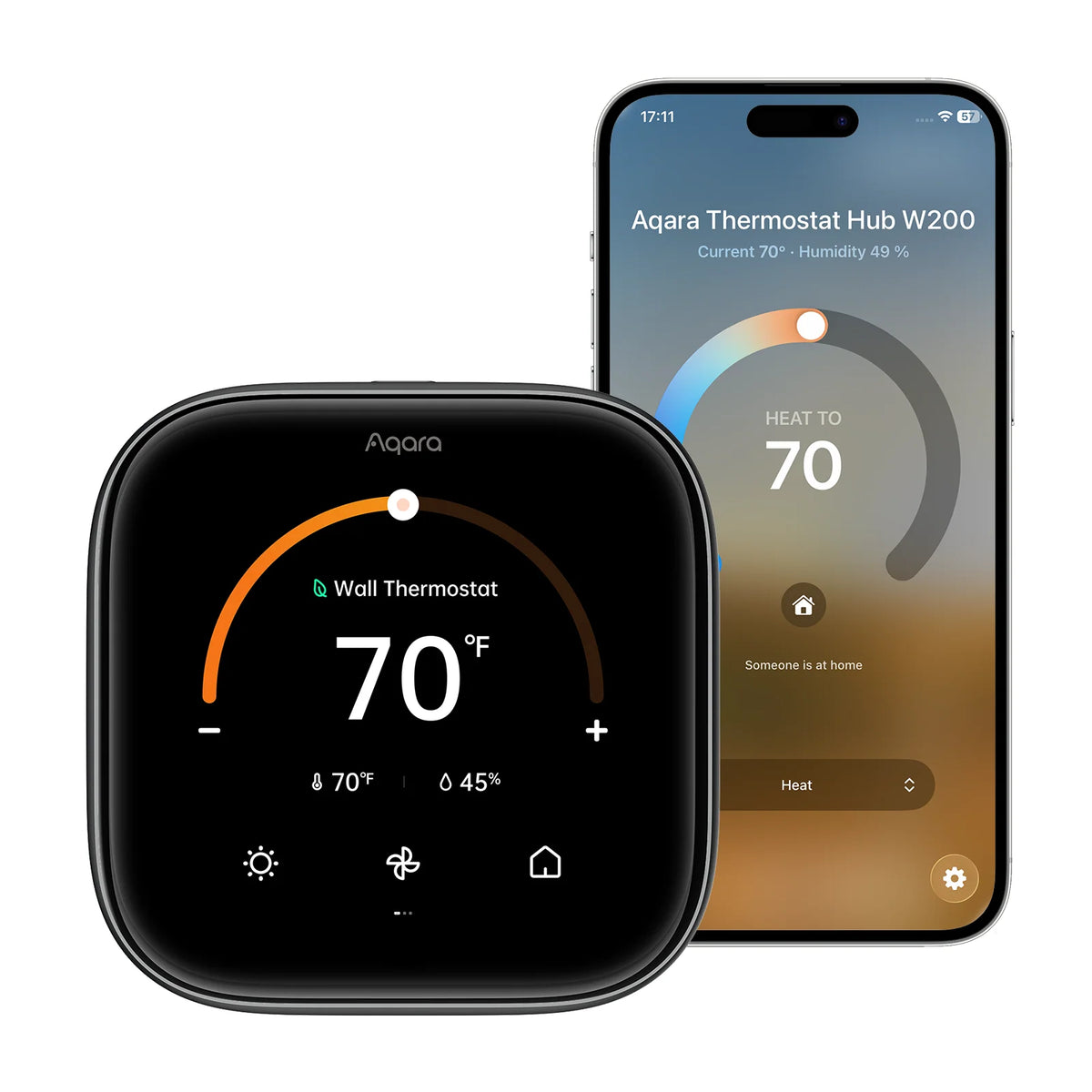

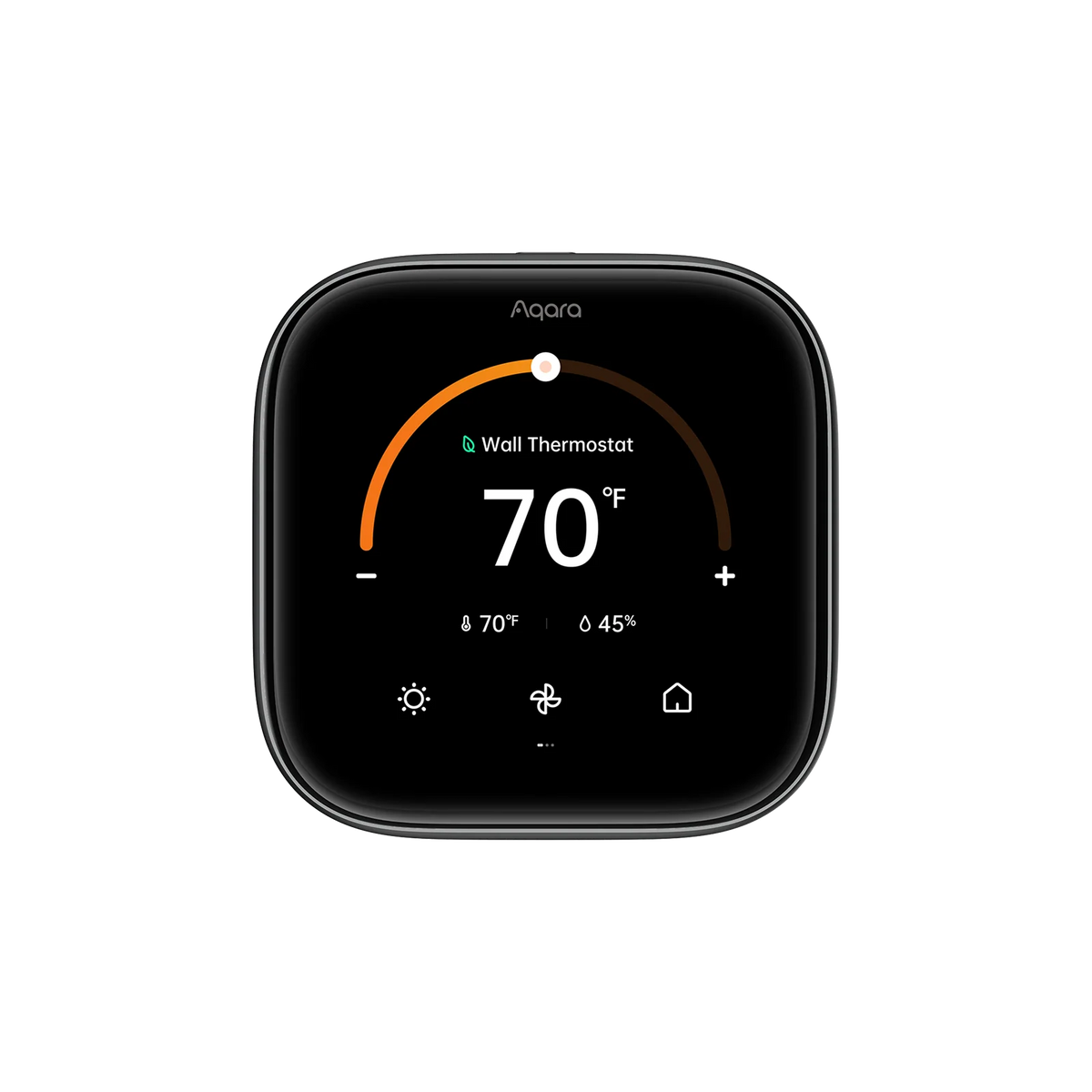

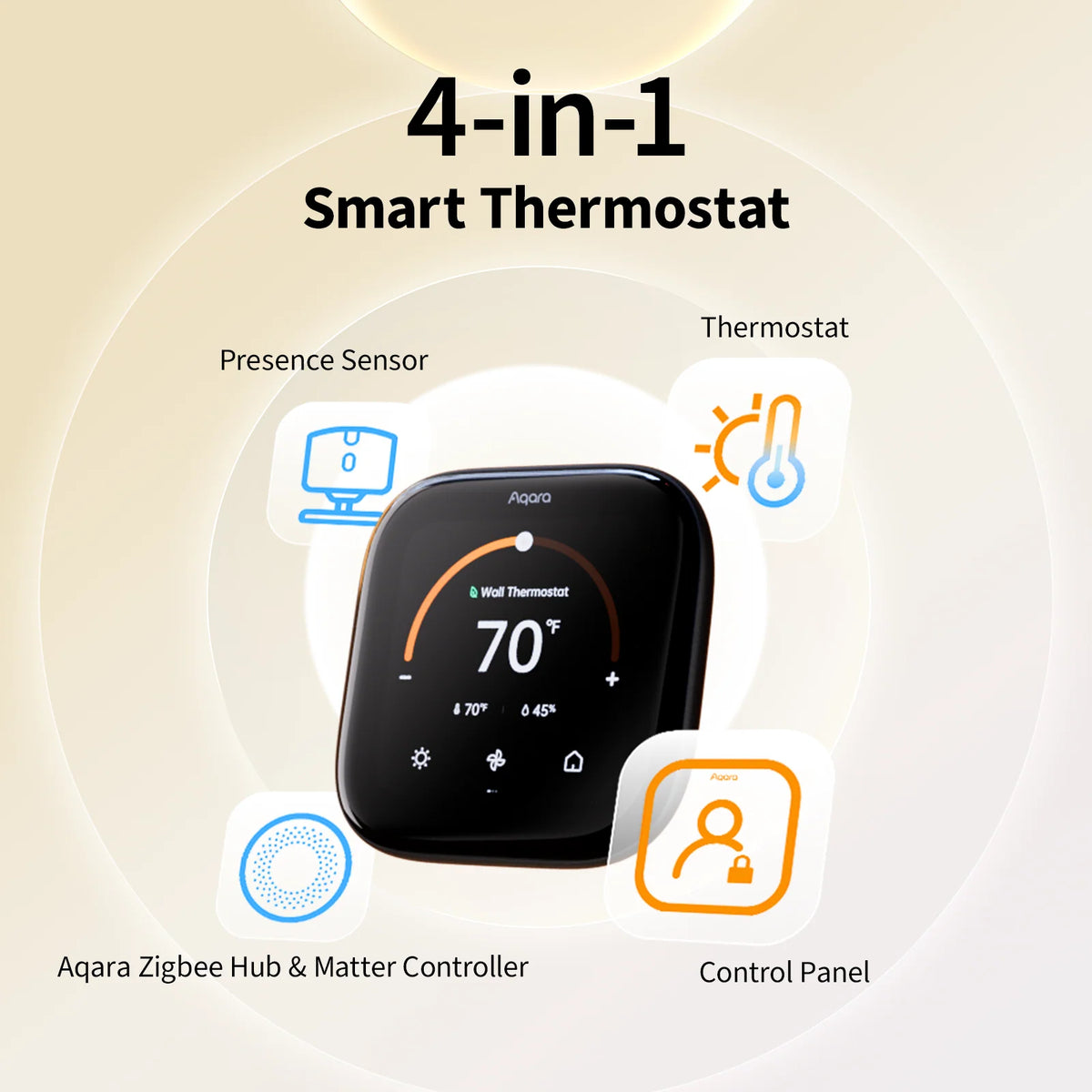

The Aqara Thermostat Hub W200 is a 24 V smart thermostat and a hub in one wall unit. A 4-inch color touchscreen runs the HVAC system, and the same device is a Zigbee hub, Thread border router, and Matter controller. Built-in temperature, humidity, and mmWave presence sensing sit behind the glass.
KEY FEATURES

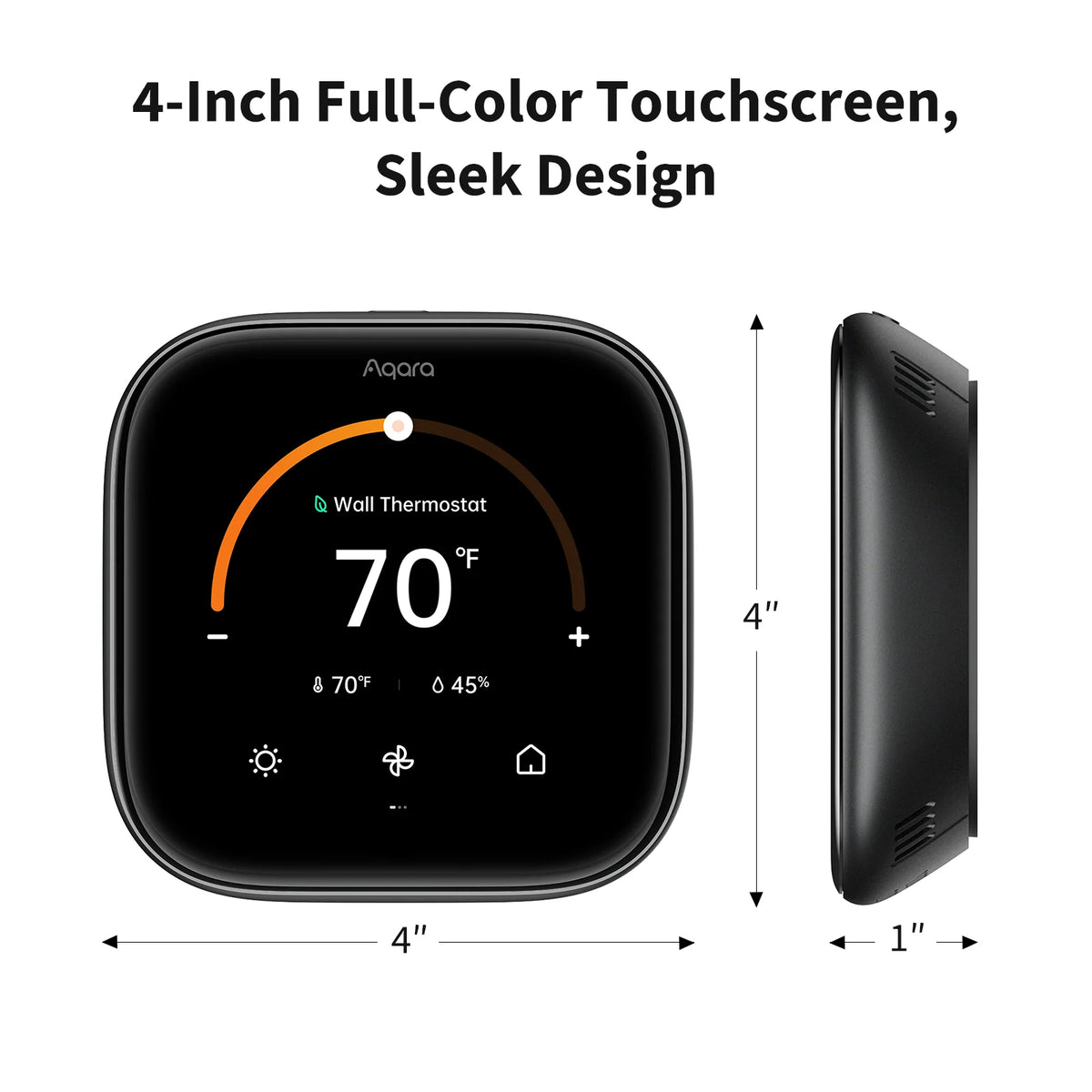

- 4-inch color touchscreen, 480 × 480
- 24 VAC thermostat for conventional systems (2H/2C), heat pumps (2H/2C plus 2-stage aux), boilers, and PTAC
- Zigbee hub for Aqara devices, Thread border router, and Matter controller
- Matter 1.4 to Apple Home, Google Home, Alexa, SmartThings, and Home Assistant
- Dual-band Wi-Fi (2.4 and 5 GHz) and Bluetooth
- Onboard temperature, humidity, and mmWave presence (about 3 m, 120°)
- Screen wakes when you walk up
- Can show an Aqara doorbell snapshot and unlock a compatible Aqara lock from the screen (Aqara Home app, G410 and supported locks)
- Trim plate included to cover the old thermostat footprint
SPECIFICATIONS
| Category | Details |
|---|---|
| Model | Aqara Thermostat Hub W200 (SRT-A06E) |
| Display | 4-inch color touchscreen, 480 × 480 |
| Power | 24 VAC (about 18–30 VA) C-wire required. C-wire adapter sold separately |
| HVAC | Conventional 2H/2C, heat pump 2H/2C + 2-stage aux, boilers, PTAC Not for line voltage (110/220 V), millivolt, or 0–10 V systems |
| Sensors | Temperature (±1°F / ±0.5°C) Humidity (±1%) mmWave presence, about 3 m / 120° |
| Wireless | Wi-Fi 802.11 a/b/g/n/ac, 2.4 and 5 GHz Zigbee, Thread, Bluetooth |
| Platforms | Aqara Home Apple Home, Google Home, Alexa, SmartThings, Home Assistant via Matter |

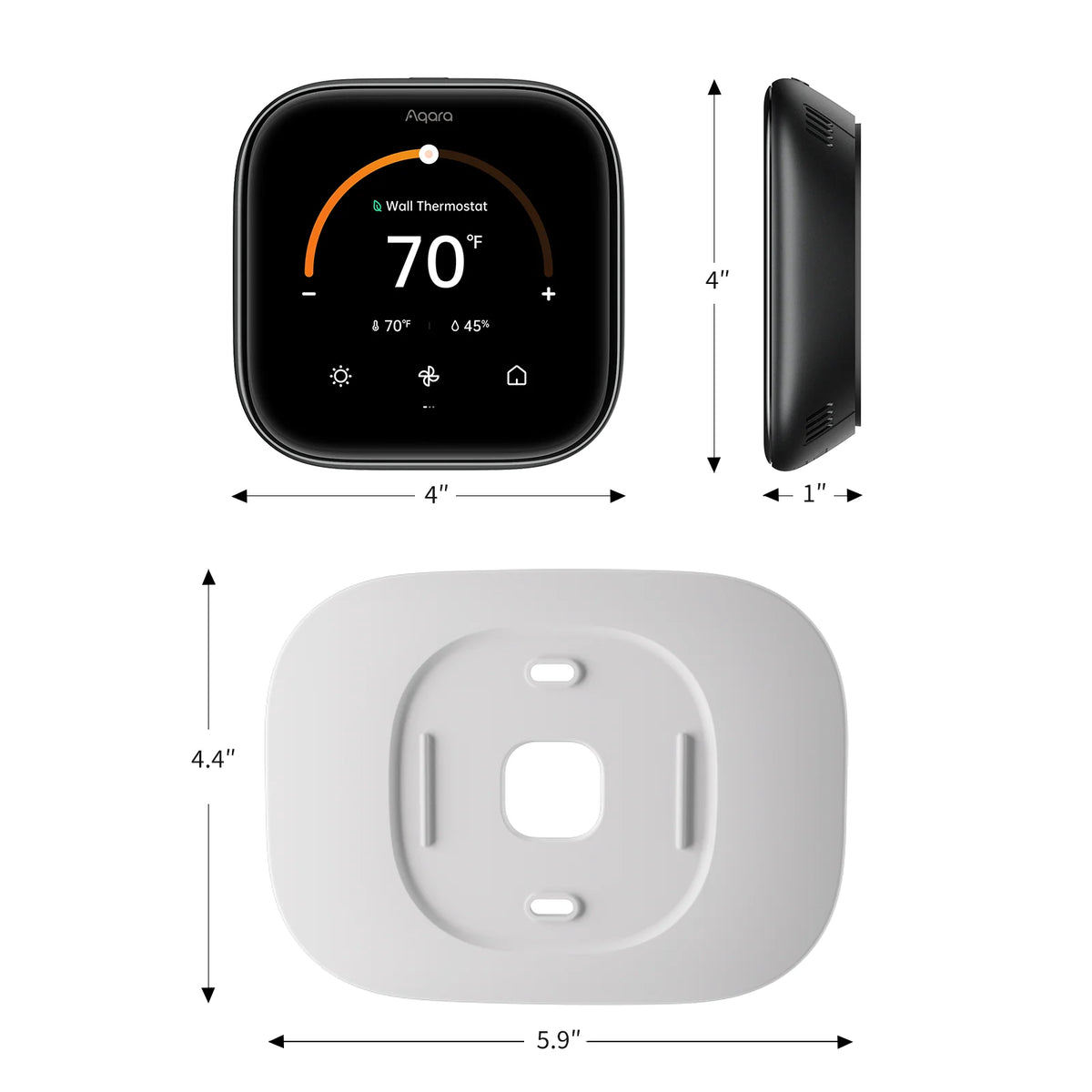

| Size | 3.94 × 3.94 × 0.98 in (100 × 100 × 25 mm) |
| Operating range | 14°F to 122°F (−10°C to 50°C) 0–95% RH, non-condensing |
What's Included:
- 1 × Thermostat Hub W200
- 1 × base plate
- 1 × trim plate
- Wire labels
- Screws and drywall plugs
- User manual
NOTES
- This listing is the single thermostat. The C-wire adapter is not included
- Check your wires before you buy. No C-wire means the separate Aqara C-wire adapter needs to be purchased separately if needed
- Do not connect it to line-voltage heat
- Works with Home Assistant over Matter (Wi-Fi). Set it up in the Aqara Home app first, then copy the Matter pairing code from the device menu (Third-Party Matter Ecosystems) and add it in Home Assistant under Add Matter device. You get climate control plus temperature, humidity, and presence. Fan control and doorbell or lock features stay in the Aqara app.
- Apple Adaptive Temperature and Clean Energy Guidance need an iPhone or iPad on version 26 or later, plus a Home hub for Adaptive Temperature. Clean Energy Guidance is contiguous US only
- Doorbell snapshot and lock unlock need compatible Aqara hardware and setup in the Aqara Home app
- Matter pairing is done from the Aqara Home app after the account is set up
