FEATURES
-
Compatible with ODROID-C5 / ODROID-C4
-
This is a Audio amplifier board with on-board sound PAM8406 amplifier that can be used by plugging directly into the 8-pin of the 40-pin header connector and 2-pin Audio DAC line-out header connector of ODROID-C5 / ODROID-C4.
-
Volume control to out of speaker and headphone simultaneously.
-
Display 0.91 inch 128 x 32 pixels OLED board via I2C.

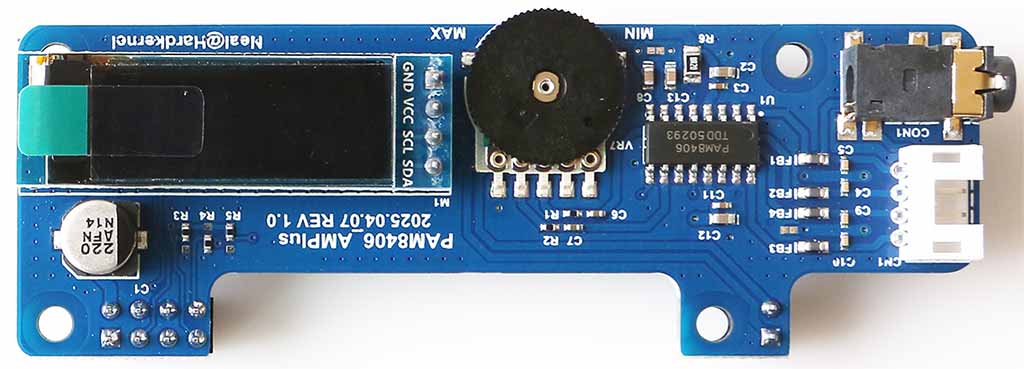

| A | Stereo Speaker Jack |
| B | Headphone Jack |
| C | Audio Volume |
| D | 0.91 inch OLED ( 128 x 32 Pixels ) |

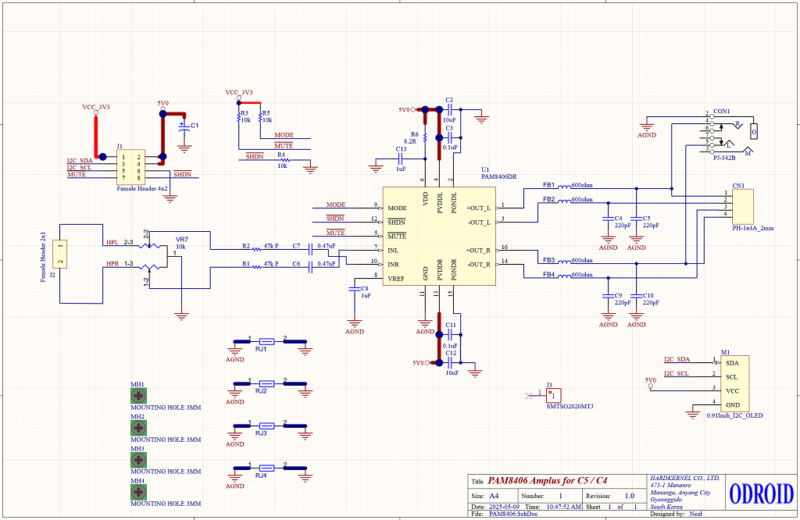

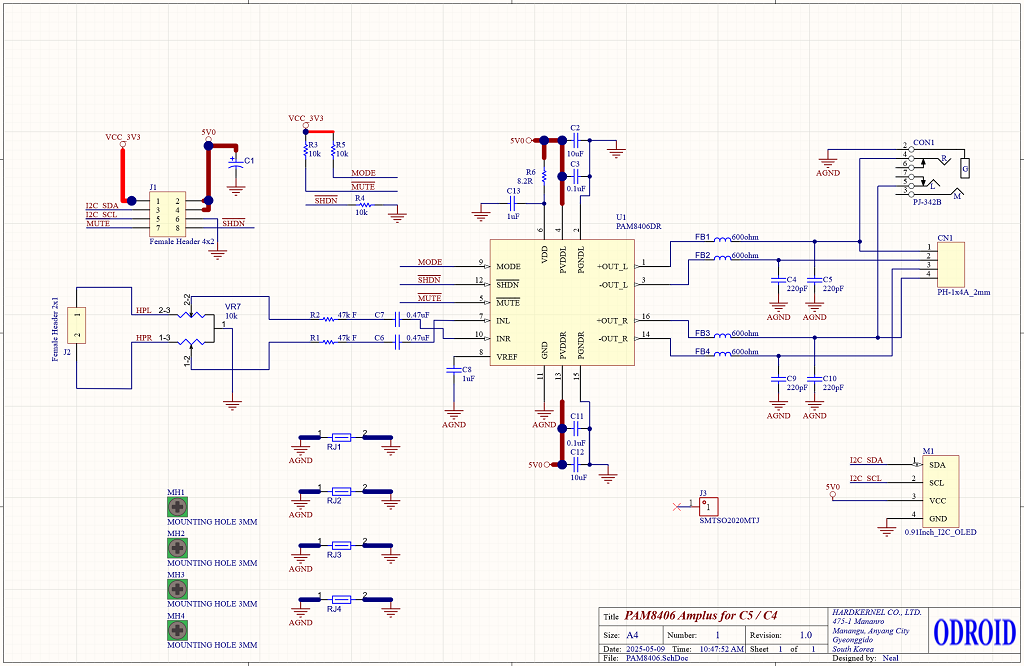

Schematics
NOTES
Wiki: https://wiki.odroid.com/accessory/add-on_boards/audio_amplifier_board
