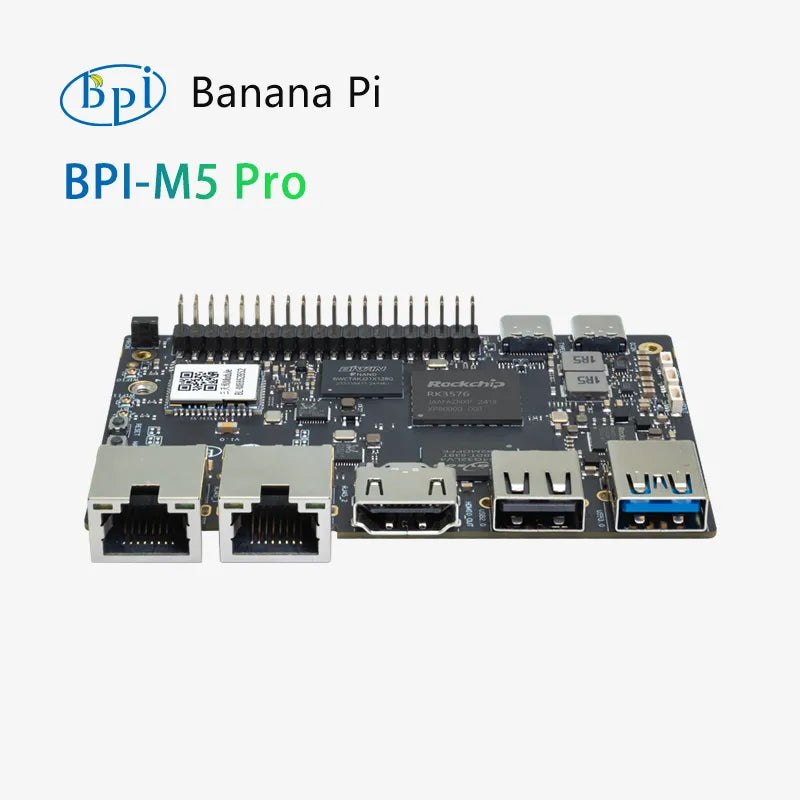

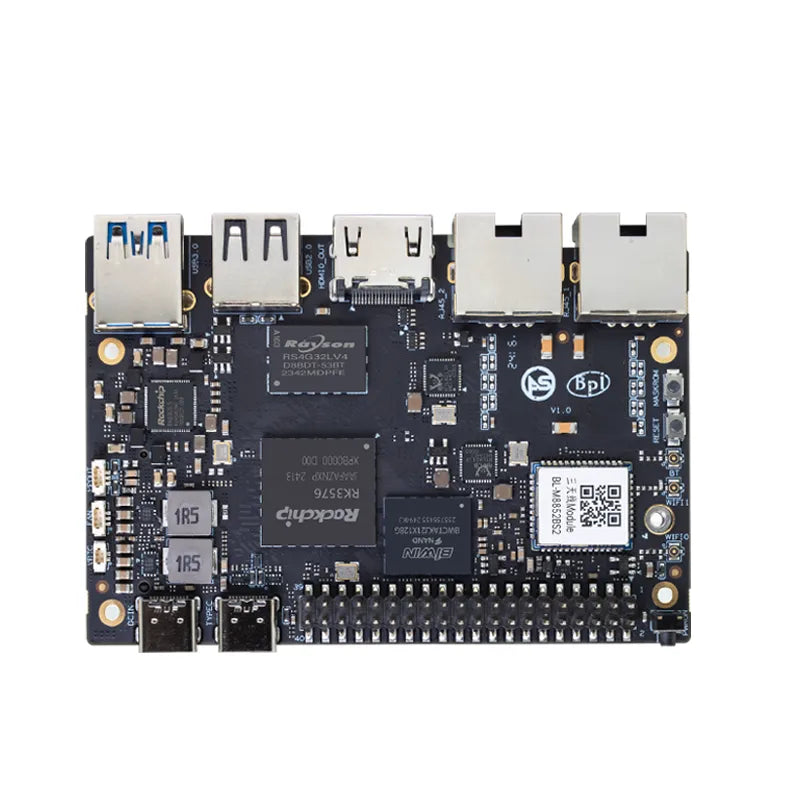

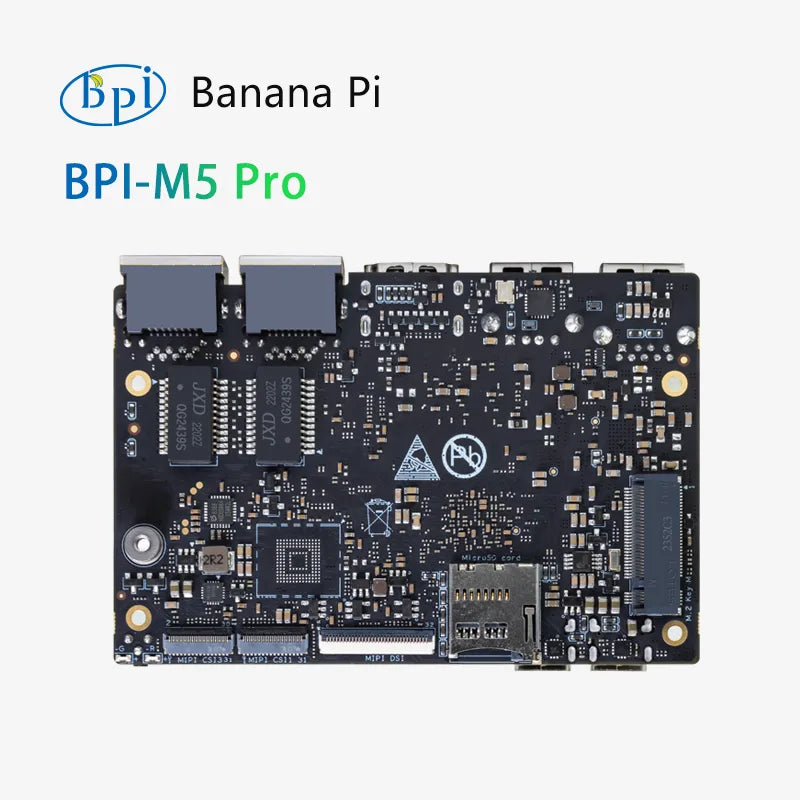

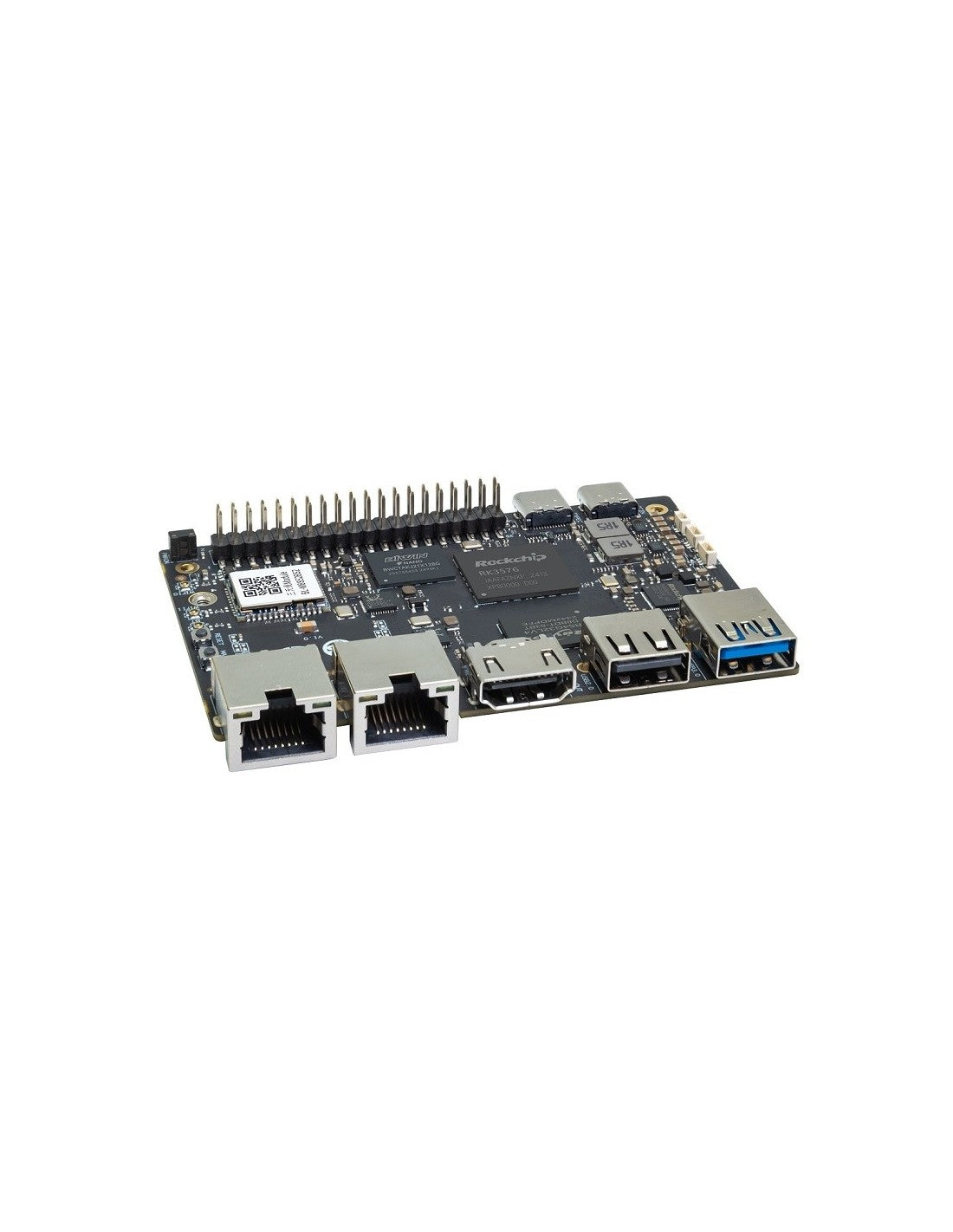

Banana Pi BPI-M5 Pro 8GB RAM 64GB eMMC

Banana Pi BPI-M5 Pro — 8GB RAM / 64GB eMMC

The Banana Pi BPI-M5 Pro is a high-performance single-board computer powered by the Rockchip RK3576 octa-core processor. This version comes with 8GB LPDDR4x RAM and 64GB eMMC storage. It features a 6 TOPS NPU for AI acceleration, dual Gigabit Ethernet, Wi-Fi 6, Bluetooth 5, M.2 NVMe support, and strong multimedia capabilities including 4K video. Ideal for edge AI, media centers, light NAS, and advanced embedded projects.

KEY FEATURES

• Rockchip RK3576: 4× Cortex-A72 (2.2 GHz) + 4× Cortex-A53 (1.8 GHz)
• 8GB LPDDR4x RAM
• 64GB eMMC storage
• 6 TOPS NPU for AI acceleration
• Mali-G52 MC3 GPU
• Dual Gigabit Ethernet
• Wi-Fi 6 + Bluetooth 5
• M.2 Key-M for NVMe SSD
• HDMI 2.1 (up to 4K@120fps) + DisplayPort 1.4
• Wide voltage input (4.5V–23V)

SPECIFICATIONS

Processor & AI:

• SoC: Rockchip RK3576 (8nm)
• CPU: Quad-core Cortex-A72 @ 2.2 GHz + Quad-core Cortex-A53 @ 1.8 GHz
• GPU: ARM Mali-G52 MC3
• NPU: 6 TOPS (INT8), supports INT4/INT8/INT16/FP16 mixed operations

Memory & Storage:

• RAM: 8GB LPDDR4x
• Storage: 64GB eMMC
• microSD card slot
• M.2 Key-M (PCIe 2.0 x1) for NVMe SSD

Networking:

• 2 × Gigabit Ethernet
• Wi-Fi 6 (802.11a/b/g/n/ac/ax)
• Bluetooth 5

Video & Display:

• 1 × HDMI 2.1 (up to 4K@120fps)
• 1 × DisplayPort 1.4 (up to 4K@120fps)
• 1 × MIPI DSI (up to 2K@60fps)
• Hardware decoding up to 8K@30fps / 4K@120fps
• Hardware encoding up to 4K@60fps

Camera & Audio:

• 2 × MIPI CSI camera interfaces
• HDMI / Headphone audio output

USB & Expansion:

• USB 3.0 + USB 2.0
• USB Type-C (with DP Alt Mode / OTG)
• 40-pin GPIO header

Power:

• Wide input voltage: 4.5V – 23V

Software Support:

• Android 14
• Debian
• Armbian
• Buildroot and other Linux distributions

What's Included:

• 1 × Banana Pi BPI-M5 Pro (8GB RAM / 64GB eMMC)

NOTES

• This listing is specifically for the 8GB RAM + 64GB eMMC version
• Strong platform for edge AI, 4K media, dual-network applications, and NVMe storage projects
• Wide voltage input makes it suitable for industrial and automotive-style power sources
