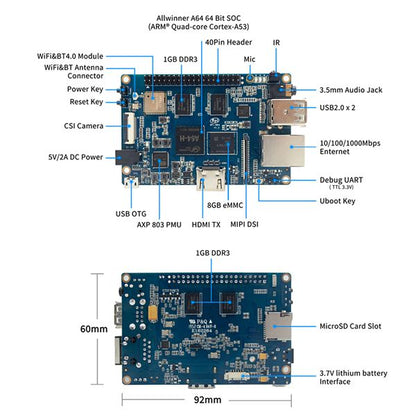

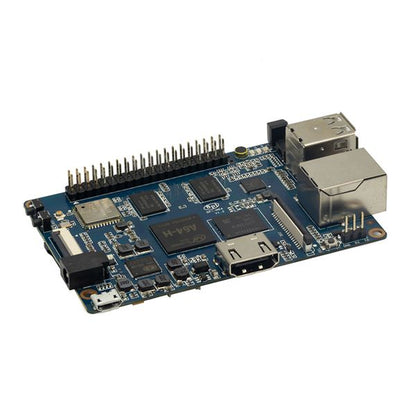

Banana Pi BPI-M64 is a 64-bit quad-core mini single board computer. It features 2GB of RAM and 8GB eMMC. It also has onboard WiFi and BT. On the ports side, the BPI-M64 has 2 USB A 2.0 ports, 1 USB OTG port, 1 HDMI port, 1 audio jack, and lastly a DC power port.
KEY FEATURES
- Allwinner A64 1.2 Ghz Quad-Core ARM Cortex A53 64-Bit Processor.
- 2 GB DDR3 SDRAM
- 8G EMMC
- 10/100/1000Mbps Ethernet
- WiFi (AP6212) & Bluetooth
- MIPI LCD interface
- Camera interface
SPECIFICATIONS
| HardWare Specification of Banana pi BPI-M64 | |||
| CPU | Allwinner 64 Bit Quad Core ARM Cortex A53 1.2 GHz CPU | ||
| GPU | Dual core Mali 400 MP2 GPU | ||
| Memory | 2GB LPDDR3 (shared with GPU) | ||
| Storage | MicroSD slot with support for up to 256GB expansion and 8G eMMC flash with support for up to 64GB | ||
| Network | 10/100/1000 Mbit/s Ethernet + Wi-Fi 802.11 b/g/n + Bluetooth 4.0 | ||
| Video Input(s) | A CSI input connector allows for the connection of a designed camera module | ||
| Video Output(s) | 1080p capable HDMI port and multi-channel audio output (NO H./X.265 capabilities) | ||
| Audio Input(s) | On board microphone | ||
| Audio Output(s) | 3.5mm jack and HDMI | ||
| USB ports | USB 2.0 PORT (x2), USB OTG (x1) | ||
| Remote | IR Receiver | ||
| GPIO | 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM | ||
| Switches | Reset, Power and U-boot | ||
| LED | Power Status and 8P8C | ||
| Power Source | 5 volt @2A via DC Power and/or Micro USB (OTG) | ||
| Size & Weight | 92x60mm, 48g | ||
| OS | Android and Linux | ||
| 40 PIN GPIO of Banana pi BPI-M64 | |||
| GPIO Pin Name | Default Function | Function2：GPIO | Function3 |
| CON2-P01 | VCC-3V3 | ||
| CON2-P02 | VCC-5V | ||
| CON2-P03 | TWI1-SDA | PH3 | |
| CON2-P04 | VCC-5V | ||
| CON2-P05 | TWI1-SCK | PH2 | |
| CON2-P06 | GND | ||
| CON2-P07 | PH6 | PH6 | |
| CON2-P08 | UART2-TX | PB0 | |
| CON2-P09 | GND | ||
| CON2-P10 | UART2-RX | PB1 | |
| CON2-P11 | PH7 | PH7 | |
| CON2-P12 | UART2-CTS | PB3 | |
| CON2-P13 | DMIC-CLK | PH10 | |
| CON2-P14 | GND | ||
| CON2-P15 | DMIC-DIN | PH11 | |
| CON2-P16 | UART2-RTS | PB2 | |
| CON2-P17 | VCC-3V3 | ||
| CON2-P18 | PD4 | PD4 | |
| CON2-P19 | SPI1-MOSI | PD2 | UART4-TX |
| CON2-P20 | GND | ||
| CON2-P21 | SPI1-MISO | PD3 | UART4-RX |
| CON2-P22 | PC0 | PC0 | |
| CON2-P23 | SPI1-CLK | PD1 | UART3-RX |
| CON2-P24 | SPI1-CS | PD0 | UART3-TX |
| CON2-P25 | GND | ||
| CON2-P26 | PC2 | PC2 | |
| CON2-P27 | PC4 | PC4 | |
| CON2-P28 | PC3 | PC3 | |
| CON2-P29 | PC7 | PC7 | |
| CON2-P30 | GND | ||
| CON2-P31 | PCM0-BCLK | PB5 | |
| CON2-P32 | PCM0-DIN | PB7 | |
| CON2-P33 | PCM0-SYNC | PB4 | |
| CON2-P34 | GND | ||
| CON2-P35 | PCM0-DOUT | PB6 | |
| CON2-P36 | PL9 | PL9 | |
| CON2-P37 | PL12 | PL12 | |
| CON2-P38 | PL7 | PL7 | |
| CON2-P39 | GND | ||
| CON2-P40 | PL8 | PL8 | |
| CSI camer PIN define of Banana pi BPI-M64 | |||
| CSI Pin Name | Default Function | Function2：GPIO | |
| CN5-P01 | NC | ||
| CN5-P02 | GND | ||
| CN5-P03 | CSI0-SDA | PE13 | |
| CN5-P04 | CSI0-AVDD | ||
| CN5-P05 | CSI0-SCK | PE12 | |
| CN5-P06 | CSI0-Reset | PE16 | |
| CN5-P07 | CSI0-VSYNC | ||
| CN5-P08 | CSI0-PWDN | PE17 | |
| CN5-P09 | CSI0-HSYNC | PE2 | |
| CN5-P10 | CSI0-DVDD | ||
| CN5-P11 | CSI0-DOVDD | ||
| CN5-P12 | CSI0-D7 | PE11 | |
| CN5-P13 | CSI0-MCLK | PE1 | |
| CN5-P14 | CSI0-D6 | PE10 | |
| CN5-P15 | GND | ||
| CN5-P16 | CSI0-D5 | PE9 | |
| CN5-P17 | CSI0-PCLK | PE0 | |
| CN5-P18 | CSI0-D4 | PE8 | |
| CN5-P19 | CSI0-D0 | PE4 | |
| CN5-P20 | CSI0-D3 | PE7 | |
| CN5-P21 | CSI0-D1 | PE5 | |
| CN5-P22 | CSI0-D2 | PE6 | |
| CN5-P23 | GND | ||
| CN5-P24 | CSI0-AFVCC | ||
| MIPI DSI display PIN define of Banana pi BPI-M64 | |||
| DSI Pin Name | Default Function | Function2：GPIO | |
| CN6-P01 | VCC | ||
| CN6-P02 | IPSOUT | ||
| CN6-P03 | VCC | ||
| CN6-P04 | IPSOUT | ||
| CN6-P05 | GND | ||
| CN6-P06 | IPSOUT | ||
| CN6-P07 | GND | ||
| CN6-P08 | IPSOUT | ||
| CN6-P09 | NC | ||
| CN6-P10 | GND | ||
| CN6-P11 | NC | ||
| CN6-P12 | DSI-D0N | ||
| CN6-P13 | NC | ||
| CN6-P14 | DSI-D0P | ||
| CN6-P15 | NC | ||
| CN6-P16 | GND | ||
| CN6-P17 | TWI0-SDA | PH1 | |
| CN6-P18 | DSI-D1N | ||
| CN6-P19 | TWI0-SCK | PH0 | |
| CN6-P20 | DSI-D1P | ||
| CN6-P21 | CTP-INT | PH4 | |
| CN6-P22 | GND | ||
| CN6-P23 | CTP-RST | PH8 | |
| CN6-P24 | DSI-CKN | ||
| CN6-P25 | GND | ||
| CN6-P26 | DSI-CKP | ||
| CN6-P27 | LCD-BL-EN | PD5 | |
| CN6-P28 | GND | ||
| CN6-P29 | LCD-RST | PD6 | |
| CN6-P30 | DSI-D2N | ||
| CN6-P31 | LCD-PWR-EN | PD7 | |
| CN6-P32 | DSI-D2P | ||
| CN6-P33 | GND | ||
| CN6-P34 | GND | ||
| CN6-P35 | LCD-PWM | PL10 | |
| CN6-P36 | DSI-D3N | ||
| CN6-P37 | GND | ||
| CN6-P38 | DSI-D3P | ||
| CN6-P39 | NC | ||
| CN6-P40 | GND | ||
| Uart PIN define of Banana pi BPI-M64 | |||
| CON2 Pin Name | Default Function | GPIO | |
| CON2 P03 | UART0-TXD | PB8 | |
| CON2 P02 | UART0-RXD | PB9 | |
| CON2 P01 | GND | ||
