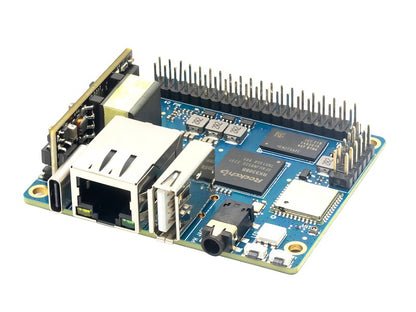

Banana Pi BPI-P2 Pro

$35.95

The Banana Pi BPI-P2 Pro (Armsom Pro) is a development board powered by the RK3308B-S chip. Featuring a robust 4-core ARM Cortex-A35 processor, 512MB RAM (16-bit DDR2/DDR3/DDR3L/LPDDR2), and 8GB eMMC onboard, it also supports PoE functionality. The chip boasts a variety of interfaces such as I2S, PCM, TDM, I2C, UART, SPDIF, HDMI ARC, providing versatility for different product applications. The RK3308 comes with abundant voice interfaces, including eight ADC interfaces, multi-channel I2S, and multi-channel PDM, offering customers a wide range of interface options and simplifying hardware design challenges, ultimately reducing product development costs.

The Banana Pi BPI-P2 Pro is equipped with 512MB DDR3 memory, and the operating system and storage options include the use of an SD card or eMMC. Additionally, the BPI-P2 Pro is available in an onboard storage version featuring 1GB, 2GB, 4GB, or 8GB NAND flash.

FEATURES

  • CPU: 64bits Quad-core Arm Cortex-A35 Rockchip RK3308B-S
  • 512 DDR3 SDRAM
  • 8G eMMC flash onboard
  • WiFi&BT: 802.11 a/b/g/n/ac & BT5.0 (AP6256)
  • 40 PIN GPIO, includes UART, SPI, I2C, IO etc
  • 100M LAN
  • IEEE 802.3af PoE standard PoE module support
  • Audio: Supports rich audio interfaces, such as MIC/PDM/SPDIF/I2S

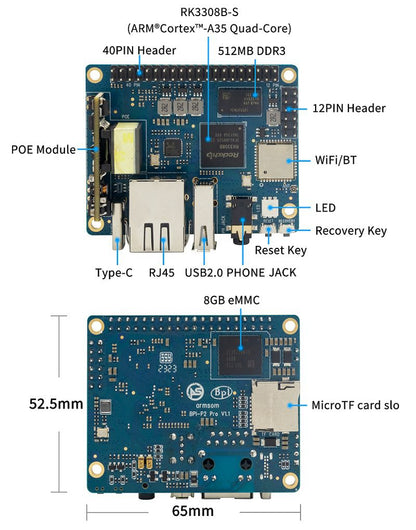

SPECIFICATIONS

Banana Pi BPI-P2 pro
SOC RockChip RK3308B-S
CPU Quad-core ARM Cortex-A35
GPU none
ROM 512MB
RAM 8GB eMMC
TF Card TF card (Max 64GB)
Network 100M LAN
PoE power PoE function support,Output Voltage 5V, Output Power 10W
WiFi AP6256
Audio Output With built-in audio CODEC, including ADC×8 and DAC×2
Power Source TYPE C 5V/2A or PoE power
USB 1xUSB 2.0 1xType-C
Others Fan、RTC、LED、debug
Button Power Button、Reset Button、 Recovery Button、Root Button
Low-level peripherals 40 Pin + 12 Pin
uart GPIO(1x3) pin UART, ground
LED Power led & Status led
Product size 65mm X 52.5mm
Weight 30g
