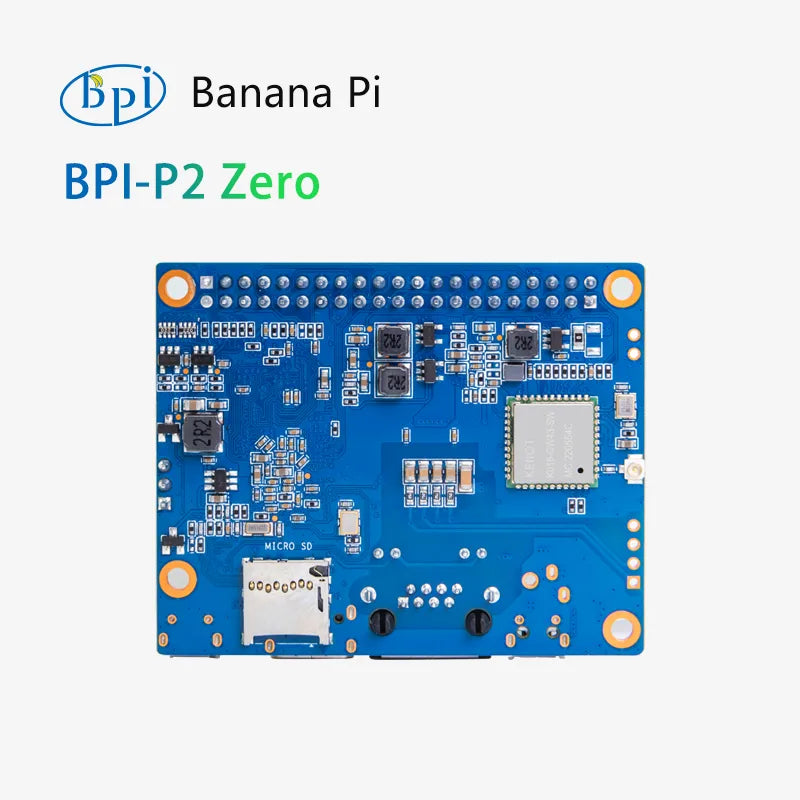

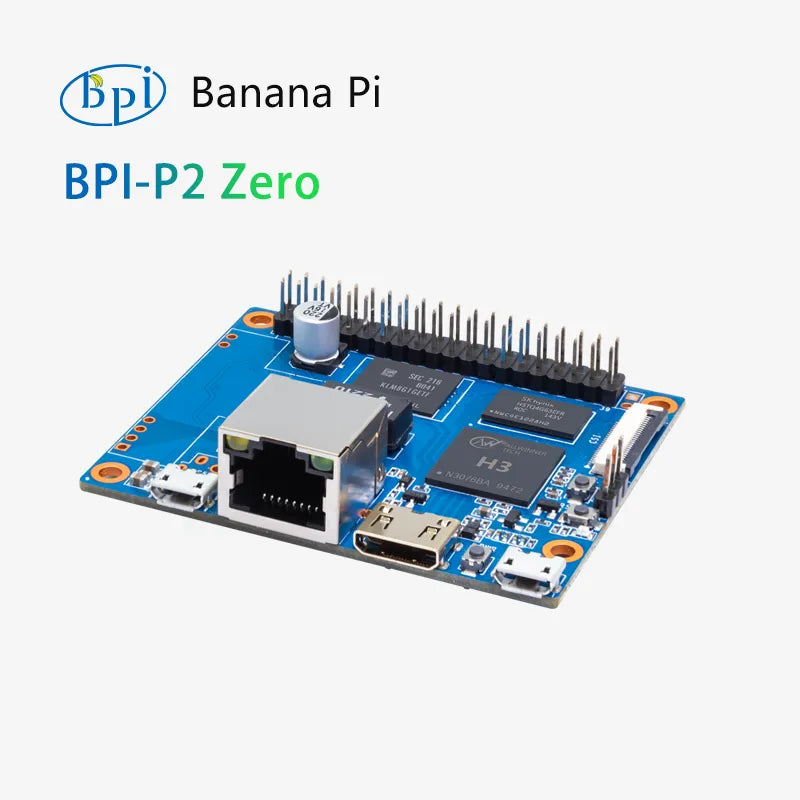

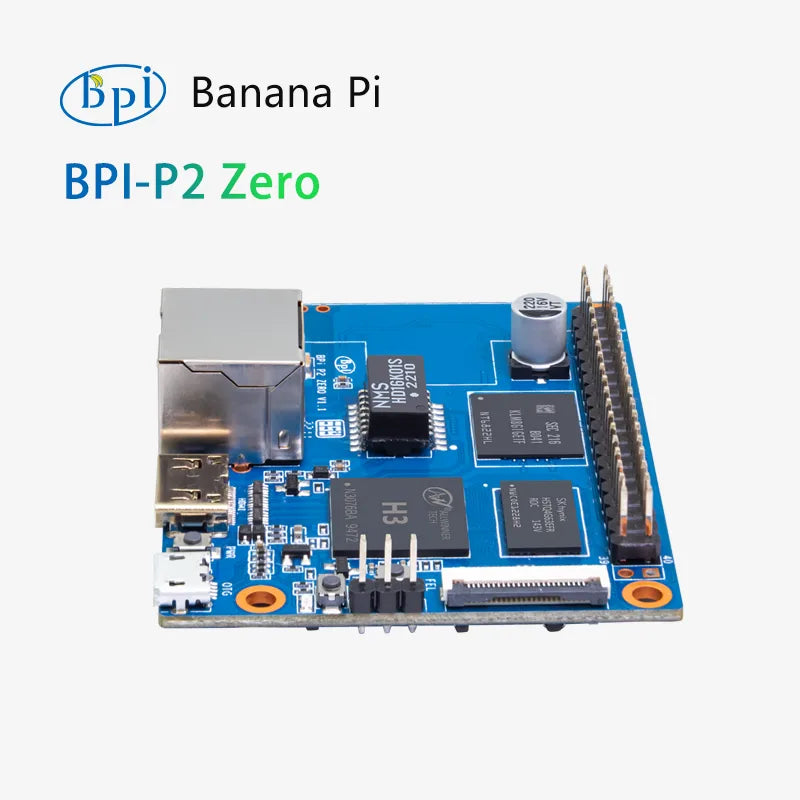

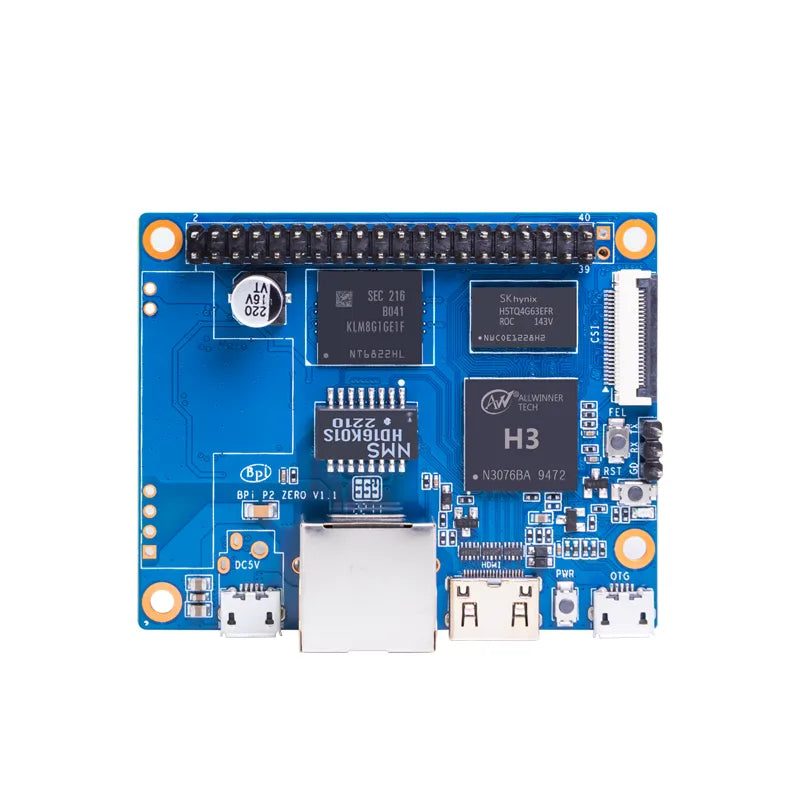

Banana Pi BPI-P2 Zero

Banana Pi BPI-P2 Zero

The Banana Pi BPI-P2 Zero is an ultra-compact single-board computer measuring only 65 × 52.5 mm. Powered by an Allwinner H2+/H3 quad-core Cortex-A7 processor with 512MB RAM and 8GB eMMC storage, it features 100M Ethernet, onboard Wi-Fi & Bluetooth, Mini HDMI, and PoE support. Ideal for space-constrained IoT projects, lightweight servers, and embedded applications.

KEY FEATURES

• Allwinner H2+/H3 Quad-core Cortex-A7 processor
• 512MB DDR3 RAM
• 8GB eMMC onboard storage
• 100M Ethernet
• Onboard Wi-Fi + Bluetooth
• PoE Support (IEEE 802.3af, Module not Included)
• Mini HDMI output
• 40-pin GPIO (Raspberry Pi compatible)
• Ultra-compact size: 65 × 52.5 mm
• Supports Android and Linux

SPECIFICATIONS

Processor & Memory:

• SoC: Allwinner H2+ / H3 (Quad-core Cortex-A7)
• GPU: Mali-400 MP2
• RAM: 512MB DDR3

Storage:

• 8GB eMMC onboard
• microSD / TF card slot (up to 64GB)

Networking:

• 1 × 100M Ethernet
• Wi-Fi 802.11 b/g/n
• Bluetooth
• PoE support (IEEE 802.3af module, not Included)

Video & Audio:

• Mini HDMI 1.4 (up to 1080p)
• CSI camera interface

USB & Expansion:

• 1 × USB 2.0 OTG
• 40-pin GPIO header (compatible with Raspberry Pi)
• UART debug pins

Power:

• 5V via Micro USB or PoE

Physical:

• Dimensions: 65 × 52.5 mm
• Weight: approx. 30 g

Software Support:

• Android
• Linux (Debian, Ubuntu, etc.)

What's Included:

• 1 × Banana Pi BPI-P2 Zero board

NOTES

• Ultra-compact design makes it suitable for space-limited projects
• PoE support allows powering the board over Ethernet (with compatible PoE module/injector, Not Included)
• Good choice for lightweight IoT gateways, sensors hubs, and small embedded systems
• GPIO is largely compatible with Raspberry Pi Zero / 3 style HATs and accessories
