Banana Pi M4 Zero

Banana Pi M4 Zero

Regular price $64.95 USD
Regular price Sale price $64.95 USD
Shipping calculated at checkout.
US Flag Thank you for supporting a US-based small business!

Out of Stock!

🎄 Sending this as a gift?

Add gift wrapping to this order for $6.95. Pricing is left out of the package.

Free standard shipping on US orders over $150

Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.

📦

US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.

Description ▼

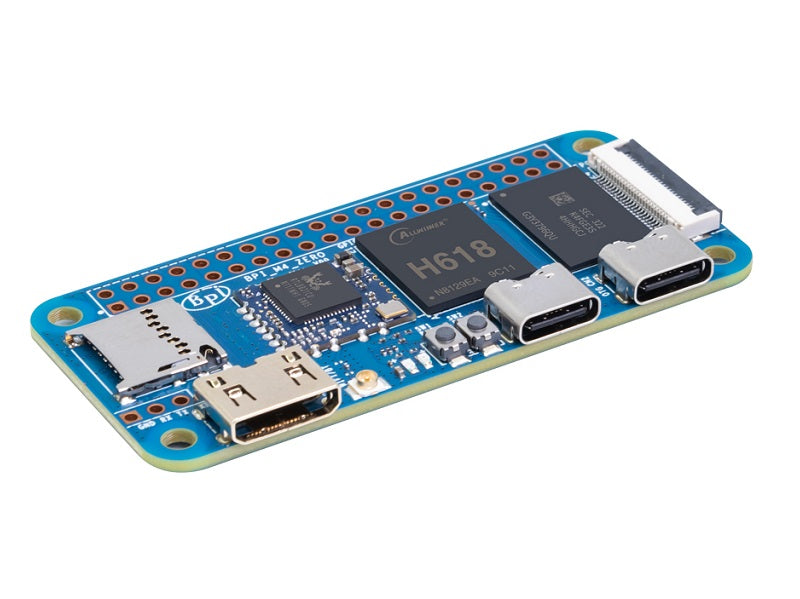

Banana Pi BPI-M4 Zero is the successor model of M2 Zero. It has a huge improvement in performance. The SOC is upgraded to H618 and the CPU frequency is increased by 25%. The memory is upgraded to 2 GB DDR4, 8G eMMC is added. It supports 5G WiFi, and the USB interface has also been upgraded to type-C.

It has same form factor and 40-pin connector as the Raspberry Pi Zero W, and it can fit most of the RPI Zero W cases and accessories.

KEY FEATURES

  • Allwinner H618, Quad-core ARM Cortex™-A53 processor
  • ARM Mali G31 GPU
  • 2.4G/5G WIFI & Bluetooth 4.2
  • 2G LPDDR4 RAM
  • 8G eMMC flash memory
  • 1x USB2.0 Type-C OTG, 5V power supply
  • 1x USB2.0 Type-C
  • 1x miniHDMI 2.0a
  • 1x 24-pin FPC connector
    • 1x USB2.0
    • 1x 100Mbps Ethernet

SPECIFICATIONS

CPU Allwinner H618, Quad-core ARM Cortex™-A53 processor, 64-bit, up to 1.5GHz
GPU ARM Mali G31 GPU
Memory 2 GB LPDDR4
Storage 8G eMMC flash
SD card MicroSD card slot, SDIO3.0
Wireless 2.4G/5G WiFi and Bluetooth 4.2
HDMI 1x miniHDMI 2.0a (up to 4K@60Hz with HDR10, CEC, DDC, SCDC), HDMI digital Audio output
USB 1x USB2.0 Type-C HOST, 1x USB2.0 Type-C OTG
40-pin header 28 pins GPIO and Power (+5V, +3.3V and GND)
UART, SPI, TWI/I²C, PWM, PCM/I²S
24-pin FPC 0.5mm pitch FPC connector, 1x USB2.0, 1x IR, 1x 100Mbps Ethernet
9 pins GPIO, UART,TWI/I²C, PWM, PCM/I²S
Buttons Reset, FEL
LED Power Status and Activity status
Power 5V@3A via USB Type-C
Size/Weight

65mm × 30mm/0.53 oz
