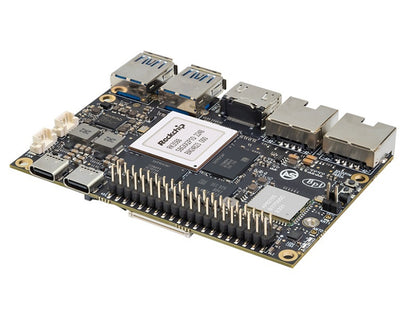

Banana Pi M7

$209.95

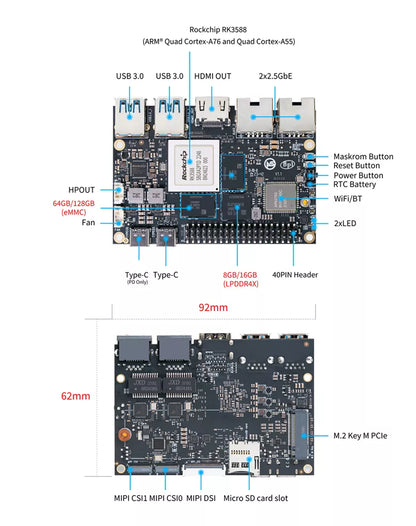

Banana Pi BPI-M7 with Rockchip RK3588, 8/16/32G,RAM 64/128G eMMC,wifi6 support . 2x2.5G port ,1xHDMIout ,2x USB3.0,2xTYPE-C,2x MIPI CSI interface and 1x MIPI DSI interface, 1x M.2 KEY M interface,40 PIN GPIO ,Mini size just 92x62mm.

KEY FEATURES

  • PI-co ITX form factor(2.5 inch, 92 x 62mm)
  • RK3588 powered, 8nm manufacturing process Quad A76 2.4Ghz + Quad A55 1.8Ghz Mali G610MC4 GPU(up to 5 channel 4K UI)
  • 6T NPU
  • 8K 10bit decoder, 8K encoder
  • Support WiFi 6 and BT5.2
  • Support PCIe 3.0 x4 NVMe SSD
  • Triple display support(with HDR)
  • One HDMI 2.1 up to 8K@60FPS
  • One USB C with DP up to 8K@30FPS
  • One MIPI DSI up to 4K@60fps
  • Two 2.5G Ethernet
  • 2x USB 3.0 interface
  • 2x MIPI CSI camera interface
  • 8GB (LPDDR4x) RAM and 64GB eMMC options

SPECIFICATIONS

SOC

RockChip RK3588

CPU

RK3588 Quad-Core Cortex-A76@ 2.4GHz+Quad-CoreCortex-A55@ 1.8GHz,8nm process

GPU

GPU Mali-G610 MP4 (4x256KB L2 Cache) Supports OpenGL ES3.2/OpenCL2.2/Vulkan1.1

NPU

6 TOPS@INT8(3 NPU core)

Supports INT4/INT8/INT16 mixed computing

Supports frameworks like TensorFlow, MXNet, PyTorch, Caffe, Tflite, Onnx NN, Android NN, etc

VPU/Codec

Hardware Decode: 8K@60fps H.265/VP9/AVS2、 8K@30fps H.264 AVC/MVC、 4K@60fps AV1、1080P@60fps MPEG-2/-1/VC-1/VP8

Hardware Encode:8K@30fps H.265 / H.264

ISP

Integrated 48MP ISP with HDR&3DNR

RAM

8GB/16GB/32GB(max 32GB )64bit LPDDR4/LPDDR4x,default 8GB LPDDR4x

Flash

32GB/64GB/128GB eMMC,default 64GB eMMC,Supports MicroSD card expansion

PCIe

1x M.2 Key M (PCIe 3.0 4-lanes). Expandable SSD support for 2280/2260/2242/2230 M.2 SSD cards, default 2280

Networking

2x 2.5G Ethernet

Onboard IEEE 802.11a/b/g/n/ac/ax WIFI6 and BT5 (AP6275P)

Video Out

1x HDMI 2.1, supports 8K@60fps

1x MIPI DSI up to 4K@60fps

1x DP 1.4 up to 8K@30fps

Video In

2x 2-lane MIPI CSI, up to 2.5Gbps per lane

Audio

1x HDMI audio out

1x HP audio out

1x Type-C 3.1 (DP1.4) audio out

USB

1x USB 3.0 (USB 3.1 Gen 1), equivalent to USB 3.2 Gen 1/USB 3.0, up to 5Gbps

1x USB Type-C 3.1(DP1.4/OTG)

1x USB 2.0 High(480Mbps)/Full(12Mbps)/Low-Speed(1.5Mbps) modes

40-pin

Fully compatible with Raspberry Pi 40-pin header for connecting abundant add-on modules

Supports UART/SPI/I2C/I2S/PWM/ADC/5V Power/3.3V Power

Other

1x 5V fan interface

1x battery connector for low power RTC chip HYM8563TS

2x LEDs - blue LED blinks on system start, red LED user controllable

Power Input

USB Type-C PD 2.0, 9V/2A, 12V/2A, 15V/2A

Buttons

1x PWRON button for sleep/wake,1x Reset button for reboot,1x Maskrom button for maskrom burn-in mode

OS Support

Official: :Android 12.0,Debian11,Buildroot

3rd Party:Armbian,Ubuntu 20.04,Ubuntu22.04,Kylin OS

Dimensions

92 mm x 62mm

Operating temperature

0℃ ~ 80℃
