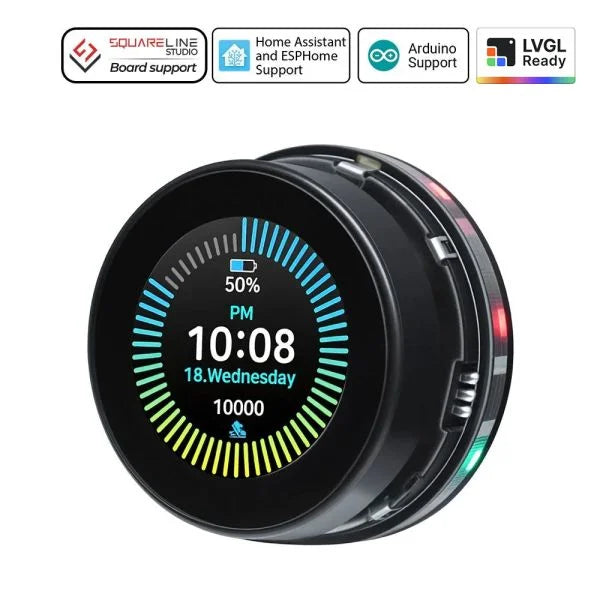

Note: This is the CrowPanel 1.46" ESP32-S3 Rotary HMI Display — featuring a larger vibrant round IPS touchscreen and physical rotary knob with push function. Ideal for smart home controls, IoT dashboards, industrial interfaces, and creative DIY projects.
The CrowPanel 1.46" Rotary HMI Display combines a powerful ESP32-S3 processor with a beautiful 1.46-inch round IPS touchscreen and a smooth physical rotary encoder. The premium aluminum alloy design, ambient RGB lighting, and rich interfaces make it perfect for building intuitive user interfaces, smart controllers, parameter adjusters, and interactive IoT devices.
KEY FEATURES
- Larger Round IPS Touch Display: 1.46-inch 360×360 high-resolution round IPS screen with wide viewing angle, vibrant colors, and smooth capacitive touch.
- Physical Rotary Knob: High-quality rotary encoder with clockwise/counterclockwise rotation and push-button action — excellent for menu navigation, value adjustment, and precise control.
- Powerful ESP32-S3 Core: Dual-core Xtensa LX7 processor up to 240 MHz with 8 MB PSRAM and 16 MB Flash for fast UI performance and multitasking.
- Wireless Connectivity: Built-in 2.4 GHz WiFi and Bluetooth 5.0/BLE for wireless control, OTA updates, and IoT integration.
- Ambient RGB Lighting: Stylish RGB LED ring for visual feedback and modern aesthetics.
- Rich Expansion Interfaces: Multiple UART, I2C, FPC connector, and support for external sensors and modules.
- Premium Build: Sleek aluminum alloy + acrylic design with excellent heat dissipation and compact form factor.
- Easy Development: Fully compatible with Arduino IDE, ESP-IDF, LVGL, and SquareLine Studio for rapid UI development.
SPECIFICATIONS
| Product Name | CrowPanel 1.46" ESP32-S3 Rotary HMI Display |
| Main Control IC | ESP32-S3R8 (Dual-core Xtensa LX7, up to 240 MHz) |
| Memory | 512 KB SRAM + 8 MB PSRAM |
| Storage | 16 MB Flash |
| Display | 1.46" Round IPS, 360×360 resolution, 65K colors |
| Touch | Capacitive touch |
| Control | Rotary encoder knob with push button |
| Wireless | WiFi 802.11 b/g/n + Bluetooth 5.0 + BLE |
| Interfaces | UART, I2C, FPC connector, RESET & BOOT buttons |
| Power Supply | 5V via USB or charging interface |
| Lighting | Ambient RGB LED ring |
| Material | Aluminum alloy + Plastic + Acrylic |
| Dimensions | Approx. 55 × 55 × 35 mm |
| Weight | ~65 g |
| Operating Temperature | -20°C to +65°C |
WHAT'S INCLUDED
- 1 × CrowPanel 1.46" ESP32-S3 Rotary HMI Display
- 1 × 4-pin Dupont Cable
- 1 × MX1.25 to USB Cable
NOTES
- Perfect for smart home panels, volume controls, industrial HMIs, portable devices, and custom IoT projects.
- Excellent LVGL and SquareLine Studio support for creating beautiful graphical interfaces.
- USB powered or can be integrated into battery-powered projects.
