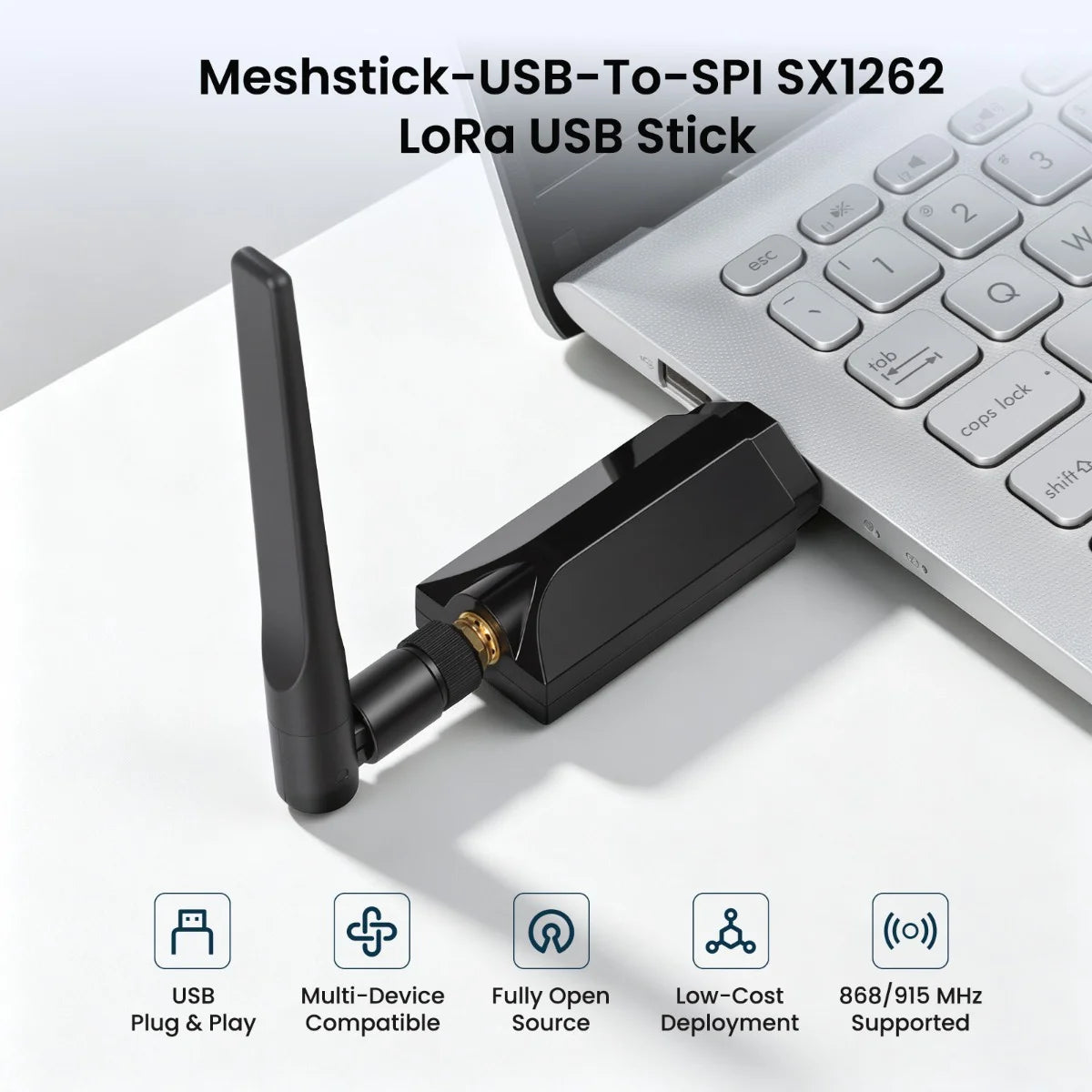

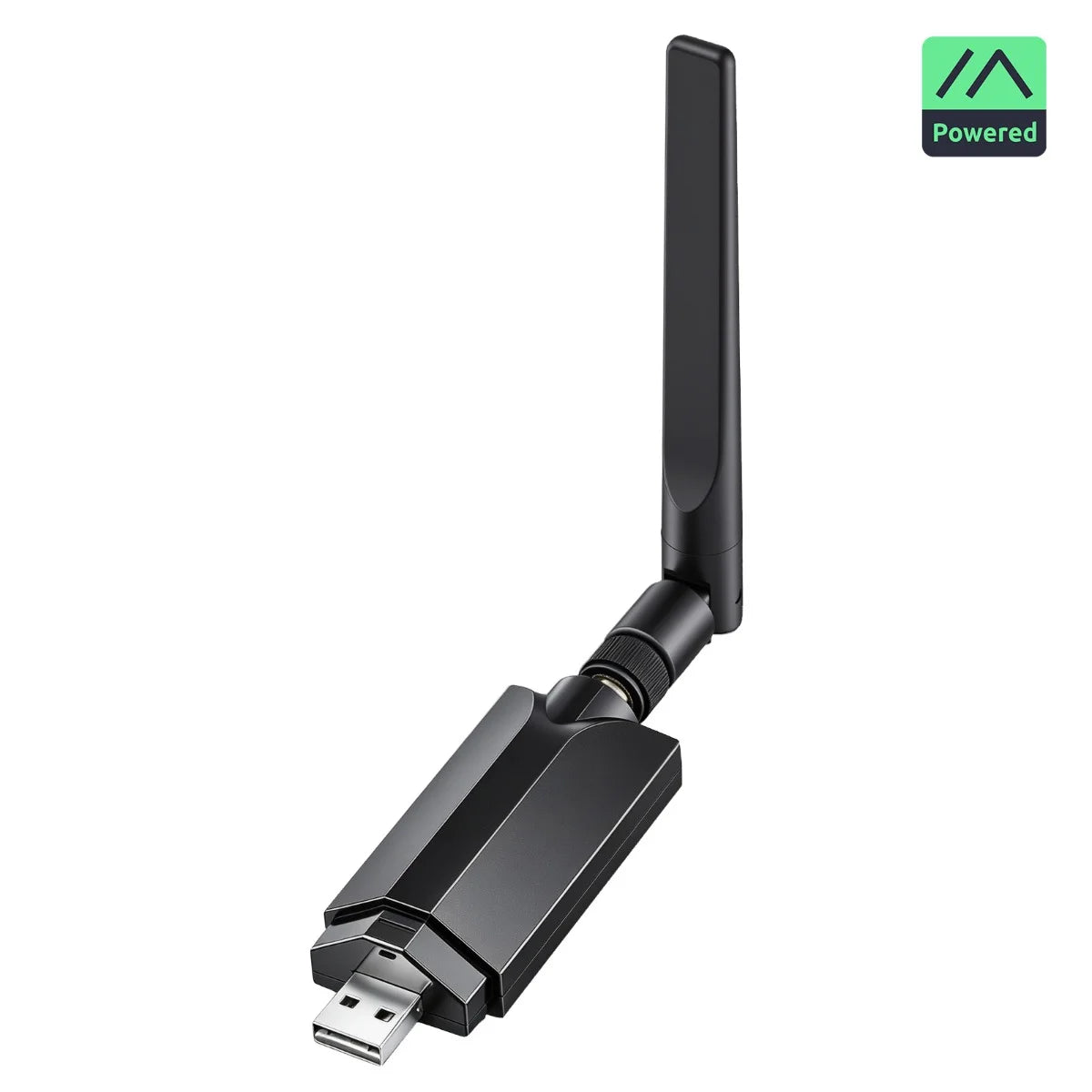

Elecrow MeshStick — USB-to-SPI SX1262 TCXO LoRa USB Stick (Meshtastic Compatible)

Elecrow MeshStick — USB-to-SPI SX1262 TCXO LoRa USB Stick (Meshtastic Compatible)

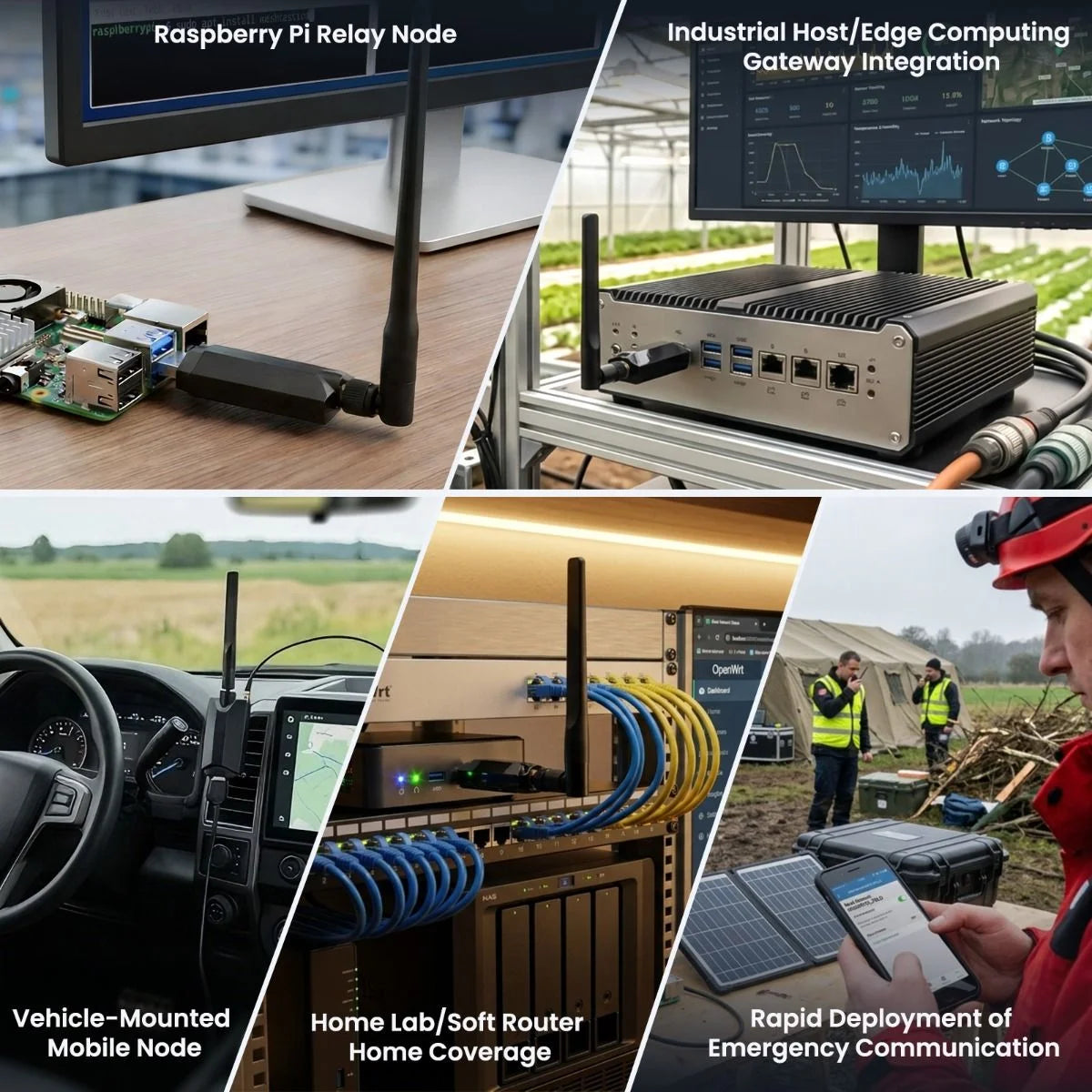

The Elecrow MeshStick is a compact, plug-and-play USB LoRa adapter designed to turn almost any computer into a full Meshtastic mesh node or gateway. Powered by the Semtech SX1262 with TCXO and a CH341 USB-to-SPI bridge, it requires no external power — simply plug it into a USB port and it is ready to use. Ideal for creating low-cost LoRa mesh nodes, repeaters, or regional gateways on Raspberry Pi, industrial PCs, OpenWRT routers, Steam Deck, and other Linux systems.

KEY FEATURES

• True Plug-and-Play: USB bus-powered — no external power supply needed
• SX1262 + TCXO: High-performance LoRa radio with temperature-compensated crystal for better frequency stability
• Meshtastic Ready: Fully compatible with official Meshtastic firmware and the meshtasticd daemon

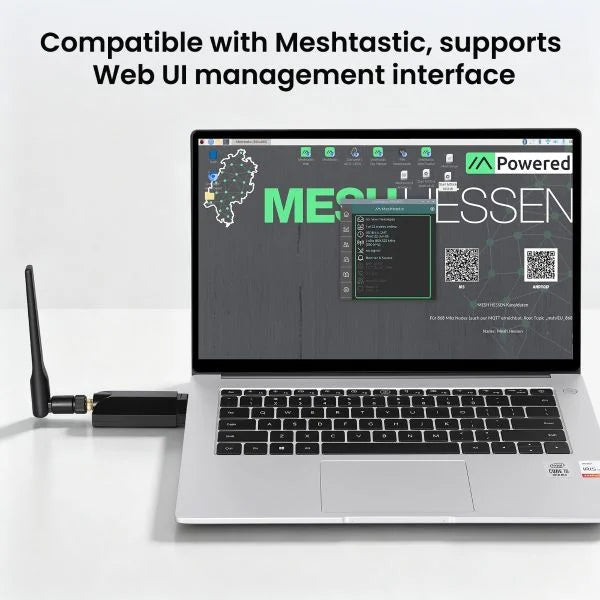

• Web UI Management: Configure, send/receive messages, and monitor the network through a browser interface

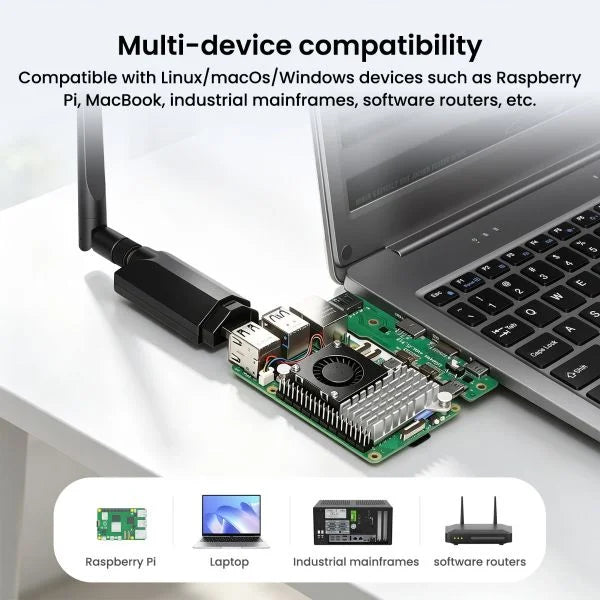

• Multi-Platform Support: Works on x86-64, arm64, and armhf (Raspberry Pi, industrial hosts, OpenWRT, Steam Deck, etc.)
• External SMA Antenna: Better range than onboard ceramic antennas

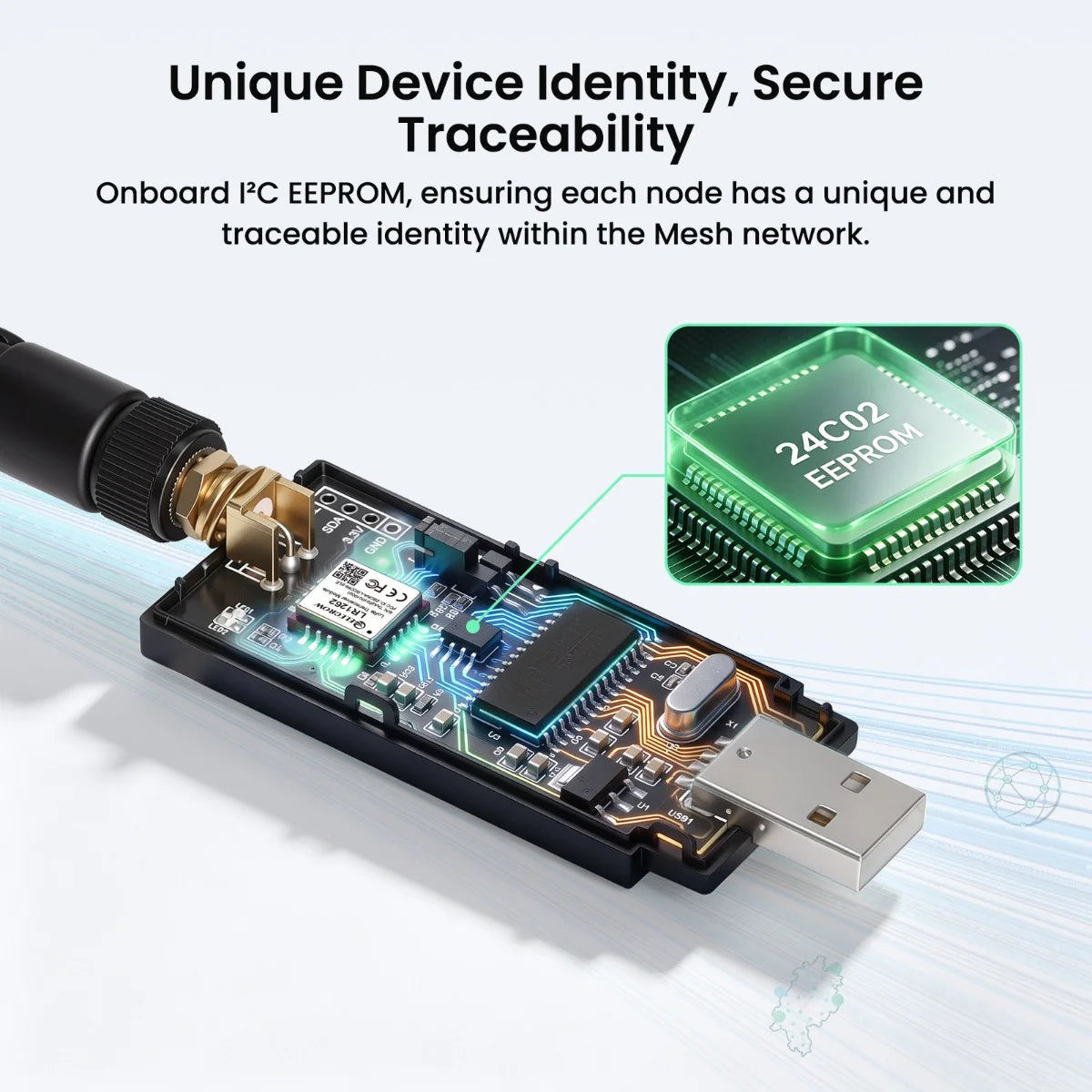

• Unique Device ID: Onboard I²C EEPROM with pre-programmed serial number for easy node identification
• Open Source Hardware: Designed for makers and secondary development

SPECIFICATIONS

Radio:

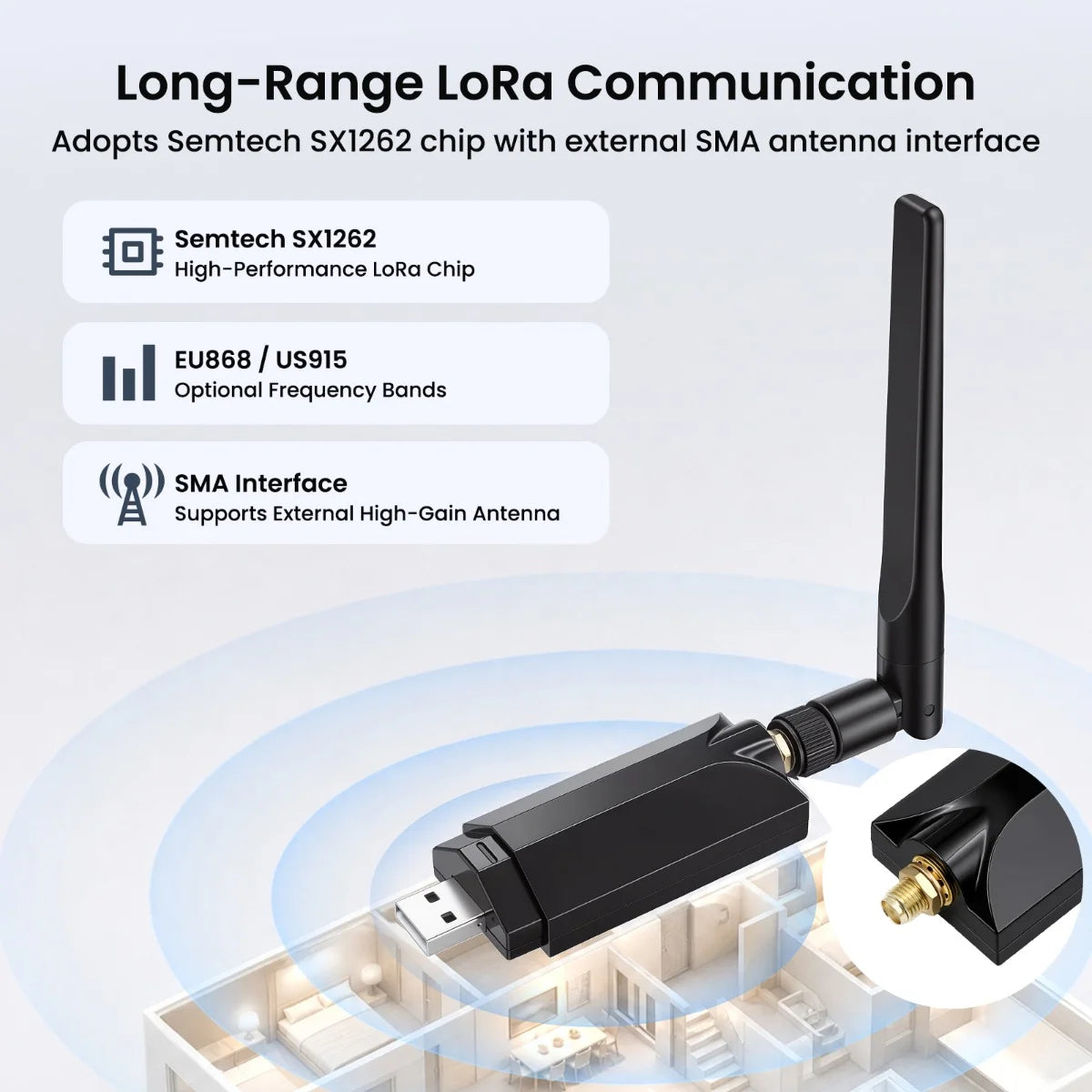

• LoRa Chip: Semtech SX1262 with TCXO
• Frequency Bands: EU868 / US915 (selectable)
• Max TX Power: +22 dBm
• Antenna Connector: SMA (external antenna)

Interface:

• USB 2.0 (CH341A USB-to-SPI bridge)
• Bus-powered (no external power required)

Other Features:

• Onboard I²C EEPROM (24C02) with unique serial number
• Translucent black plastic housing

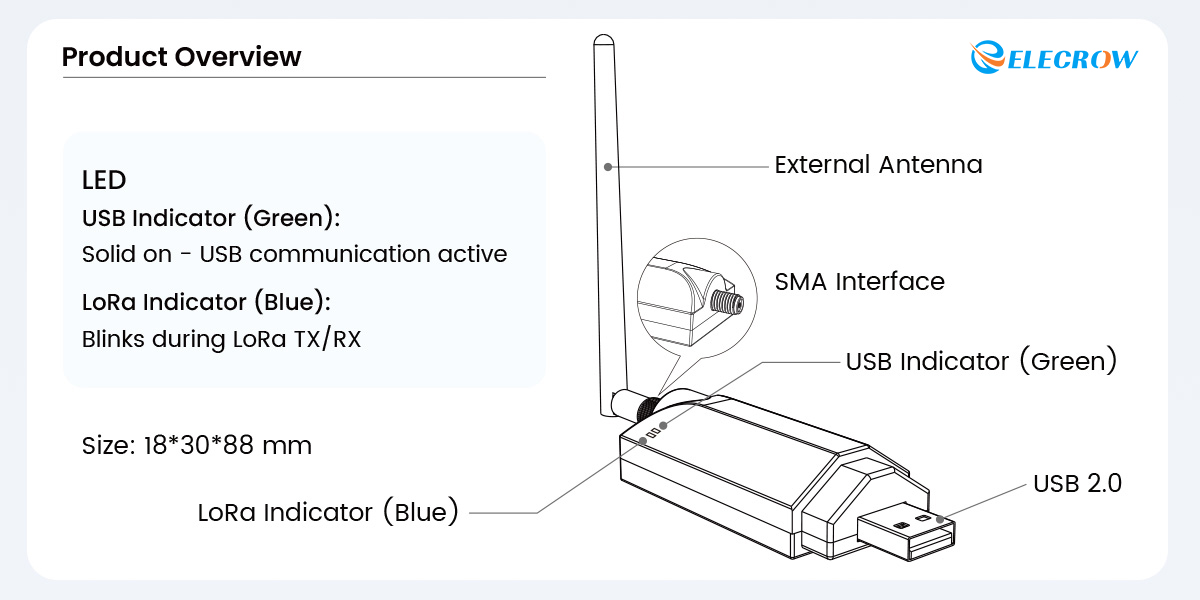

Physical:

• Dimensions: 88 × 30 × 18 mm (excluding antenna)
• Weight: Approx. 36.6 g (including antenna)

Software Support:

• Official Meshtastic firmware
• meshtasticd daemon
• Web-based management UI
• Compatible with Linux, and also usable on Windows/macOS systems

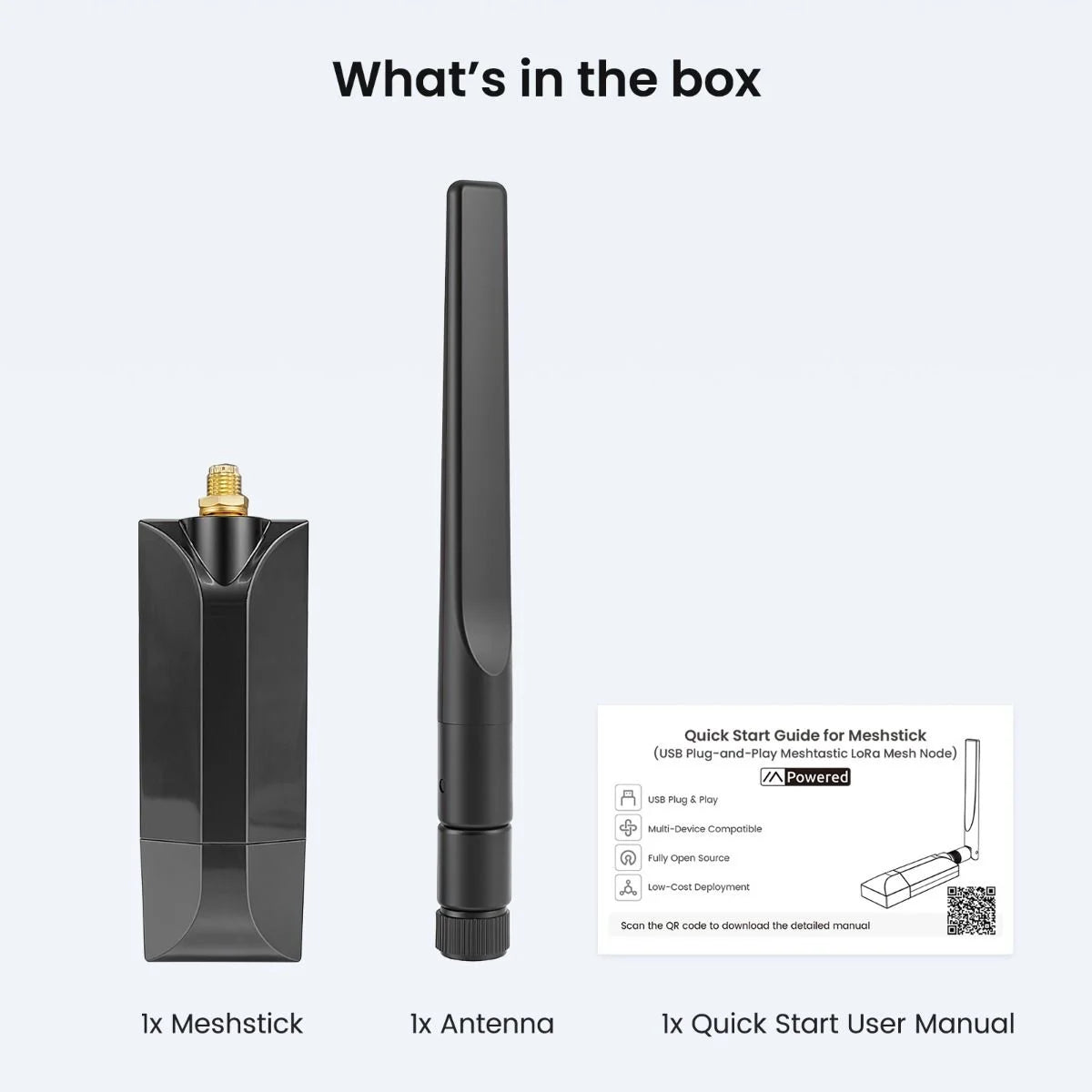

What's Included:

• 1 × MeshStick USB LoRa adapter
• 1 × SMA Antenna
• 1 × Quick Start Guide

NOTES

• Designed primarily for Linux environments (Raspberry Pi, OpenWRT, industrial PCs, etc.)
• Perfect for building low-cost Meshtastic gateways, repeaters, or portable mesh nodes
• Simply plug into a USB port — no soldering or complex setup required
• Great for emergency communications, outdoor mesh networks, and IoT experiments
