Intel Twin Lake N150 (4 Cores, 4 Threads, 6MB Cache, up to 3.6 GHz) TDP 6 W
Video Engine Processor
Intel UHD Graphics
Memory
16 GB DDR5 SODIMM, 4800 MT/s
Audio
HDA CODEC support two DMICS array (optional)
Storage
512GB × SSD (2280 M.2 SATA & PCIE Gen 3 ×4)
I/O Port

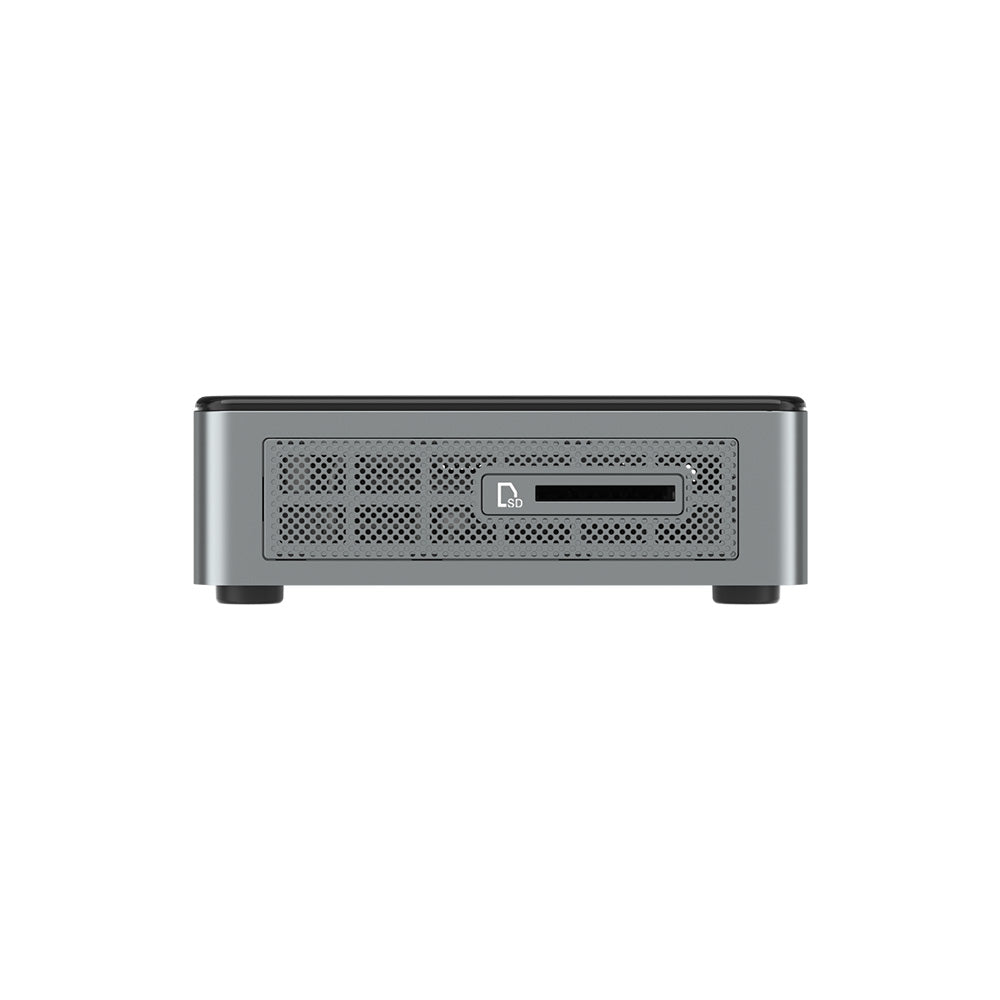

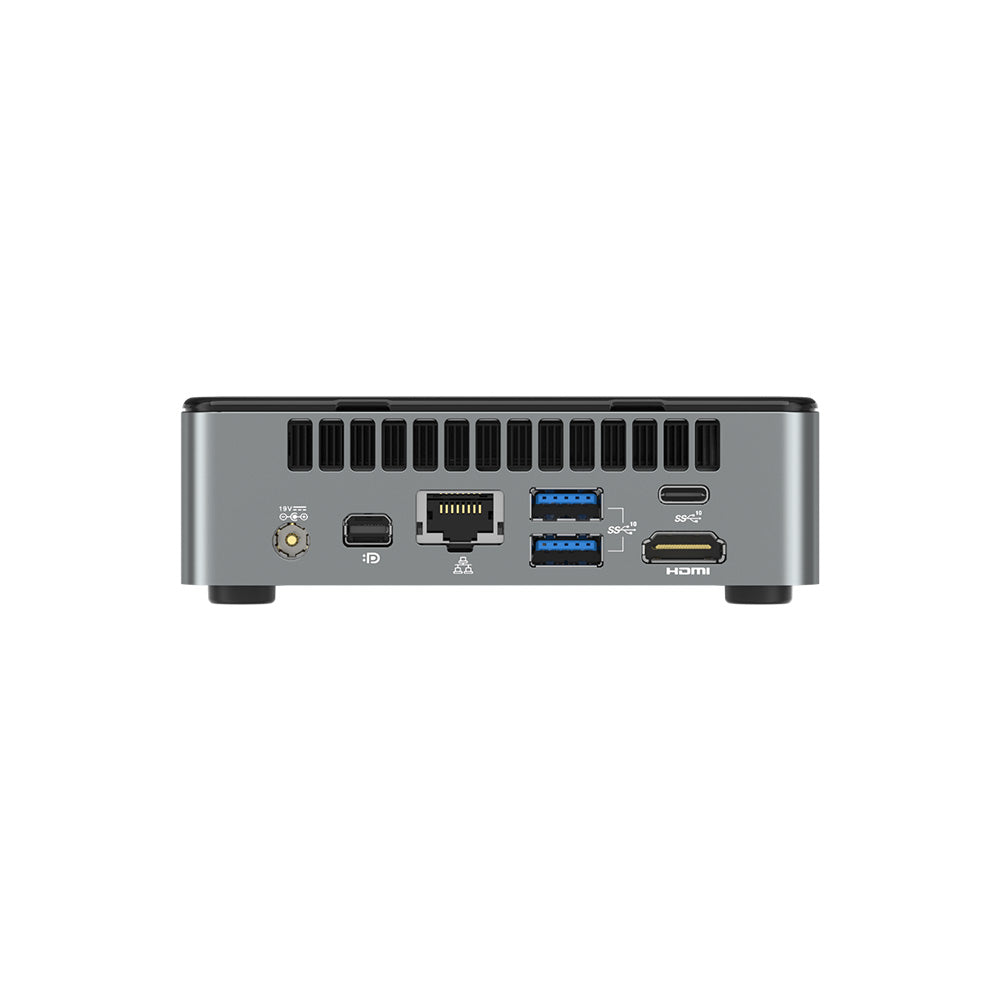

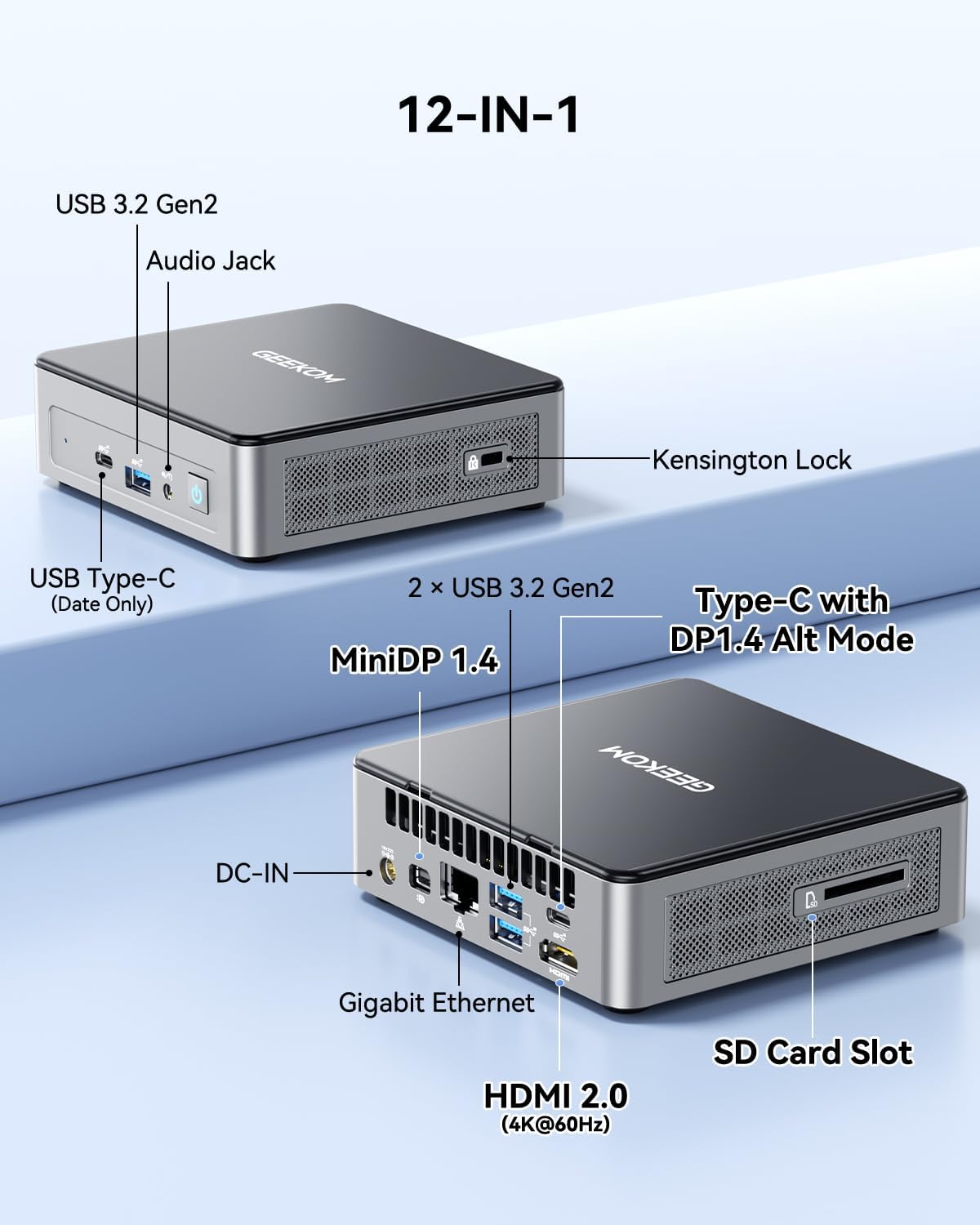

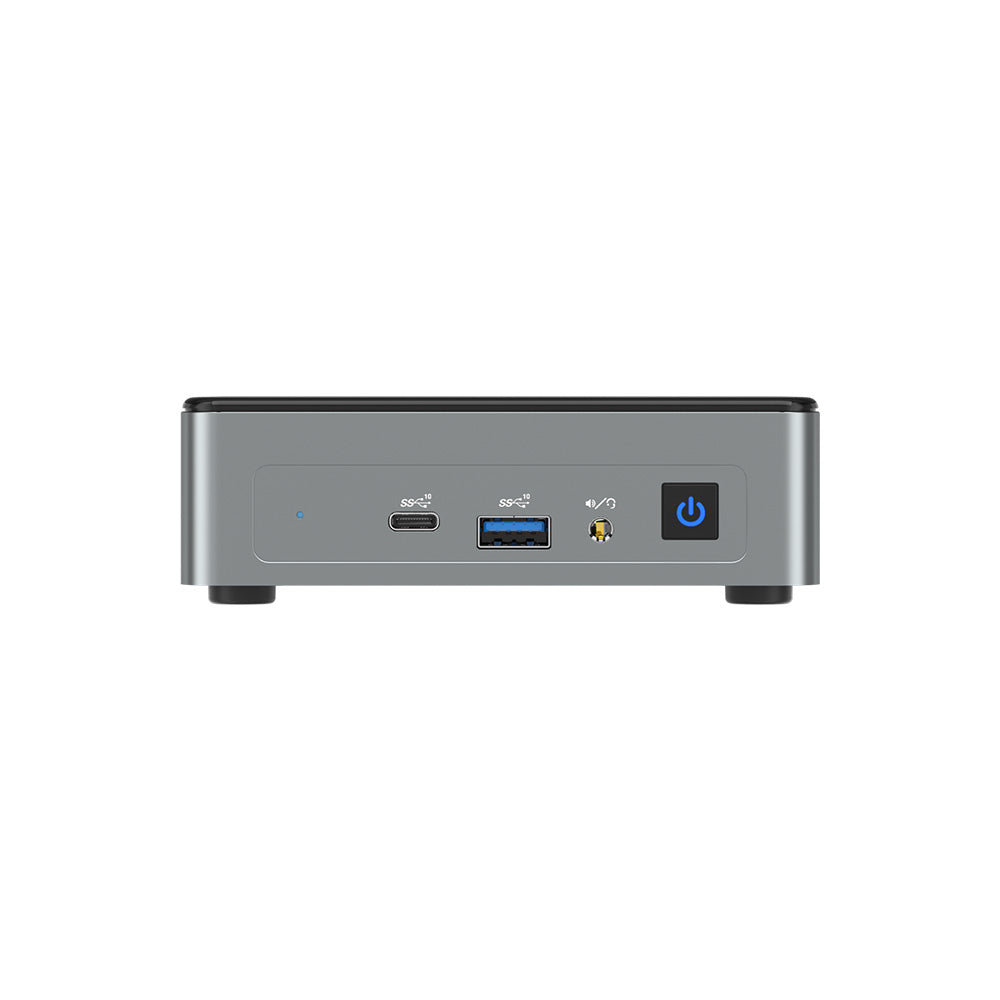

1 × USB 3.2 Gen 2 ×1 port (front panel) 2 × USB 3.2 Gen 2 port (back panel) 1 × TYPE-C with DP 1.4 Alt Mode (back panel) 1 × TYPE-C Data Only (front panel) 1 × SD card reader 1 × 3.5 mm headphone jack (front panel, supports Apple HeadPhone) 1 × RJ45 (back panel) 1 × HDMI 2.0 (back panel) 1 × Mini DP 1.4 (back panel) 1 × DC in (back panel) 1 × Power button 1 × Kensington Lock
Internal Connector

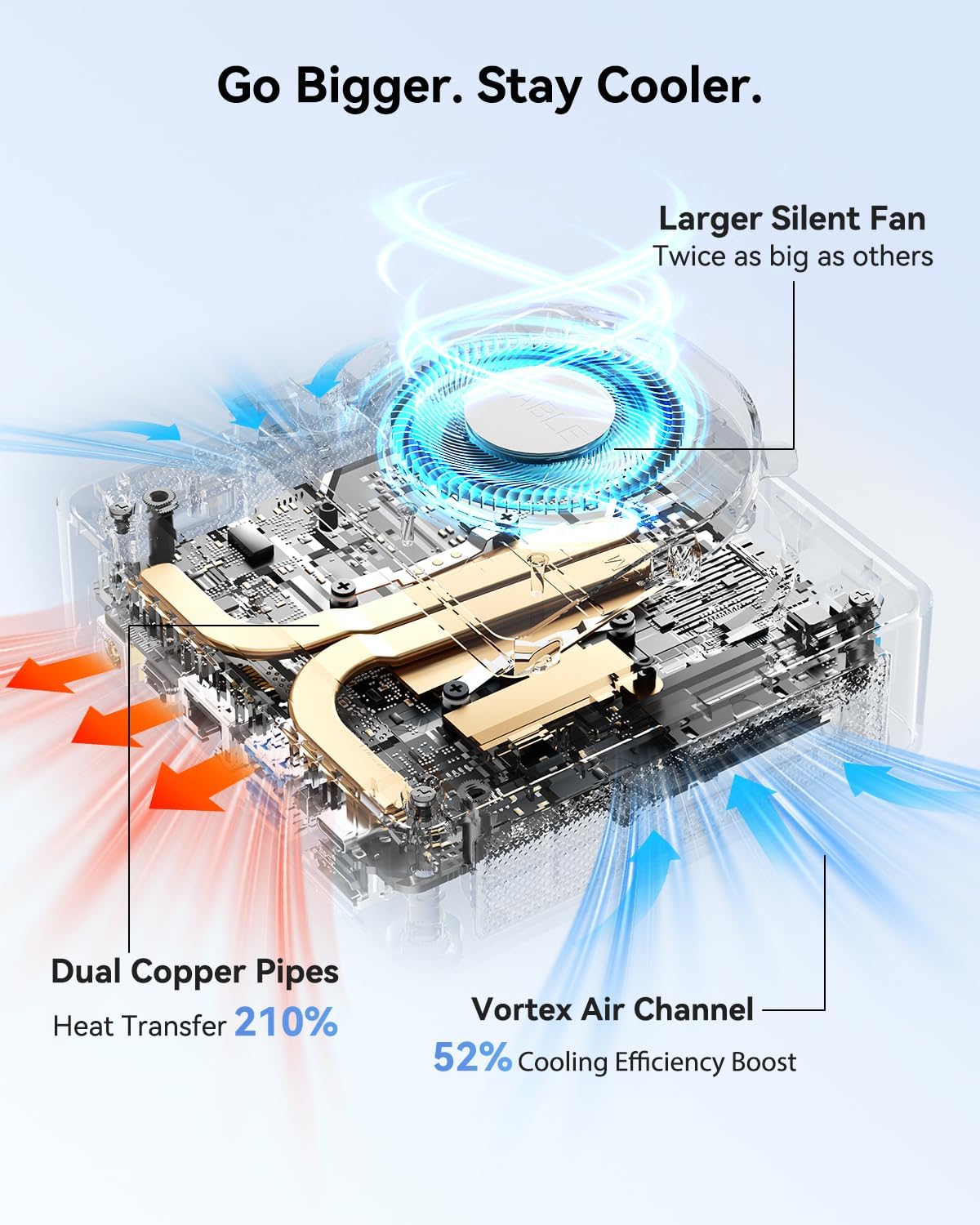

1 × M.2 key-M slot (PCIe/SATA) 1 × Fan 1 × RTC 1 × USB 2.0
LED
1 × Power LED (Power On: Blue, S3: Flashing Orange) 1 × SATA SSD: Red, PCIE SSD: Green
Ethernet

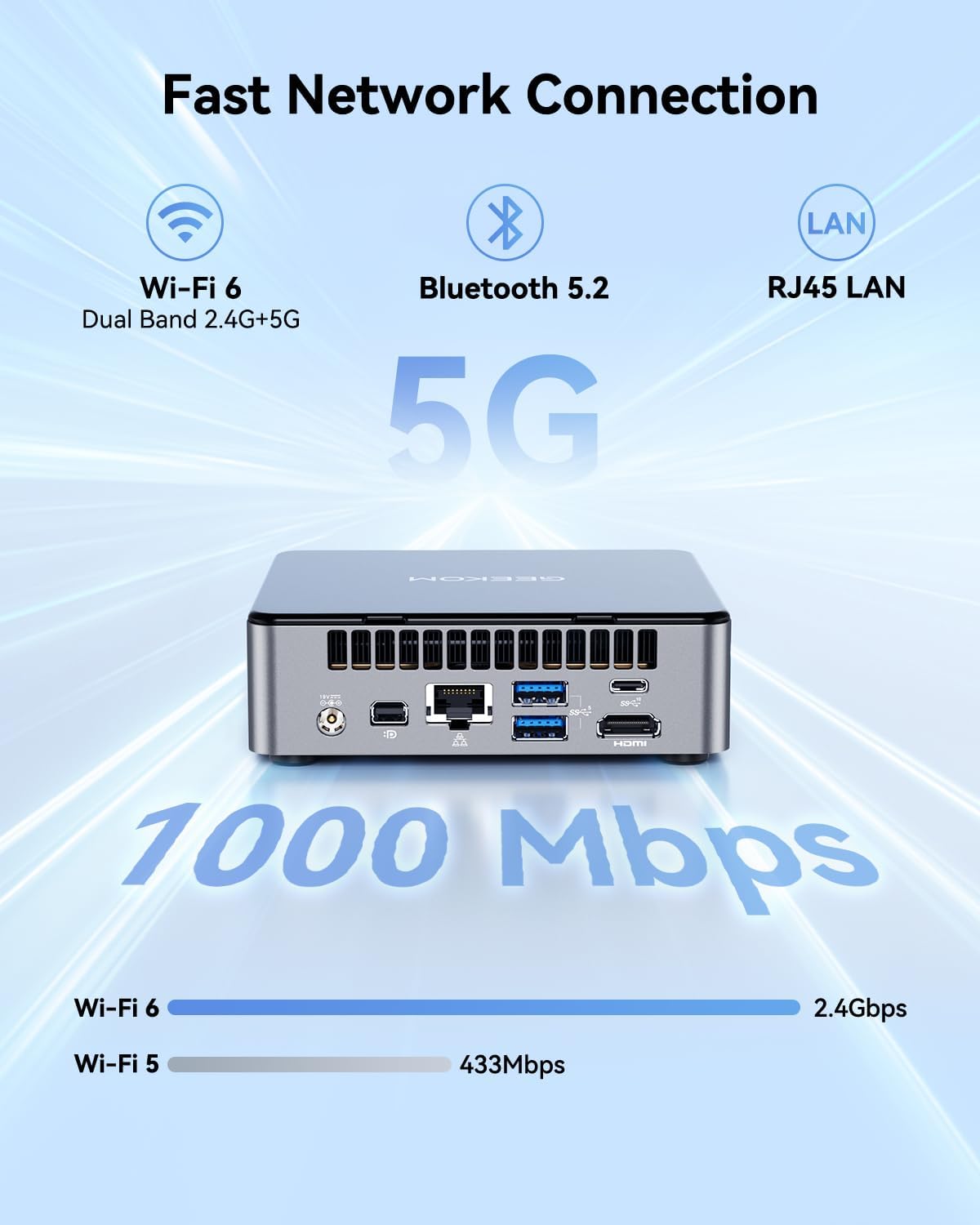

Intel® 10/100/1000 Mbps Ethernet
Wireless LAN
onboard Wi-Fi 6 Bluetooth 5.2

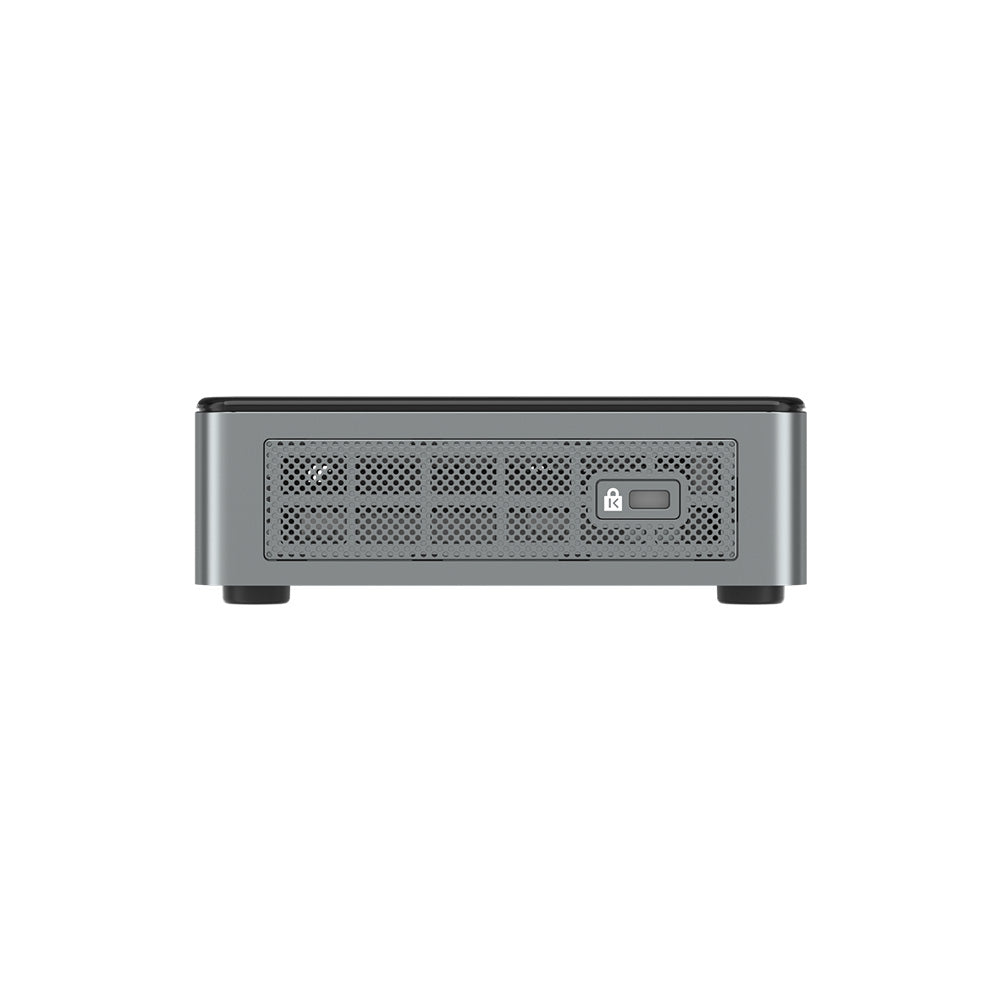

Kensington Lock
Yes
Battery
RTC coin battery
Adapter
Automatic Voltage adjustment between 100 and 240 V AC, 50/60 Hz, 45 W (19 V/2.36 A), 3 Pin, 1.8 meters long & 65 W (19 V/3.42 A)
PCBA Dimension
109.1 × 107.63 mm
Certification
CE, RoHS, FCC, CEC, CB, PSE, TELEC
Operating system
Windows 11 21H2, PRO

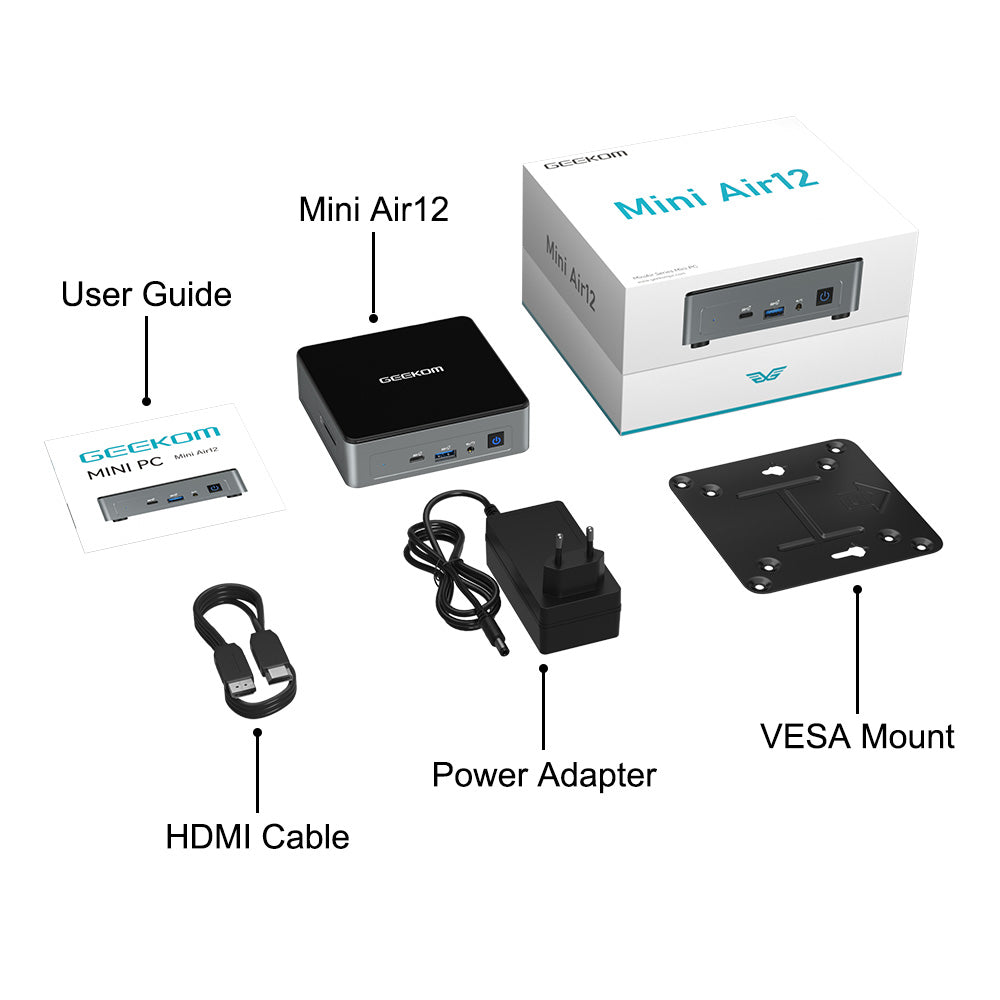

Accessory
VESA Mount
