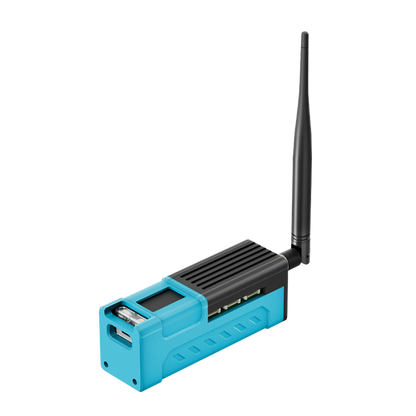

Note: This is the Heltec RD01 Sensor Extension Kit for RadioCore RC32 at 902–928 MHz, TX 21±1 dBm. It includes the RC32-62 RadioCore module, LoRa antenna, 18650 Li-ion battery, and a PLA 3D-printed enclosure with the RD01 carrier board.
RD01 is a sensor-focused expansion enclosure for RC32. It integrates an 18650 battery holder, three B2B sensor interfaces for compatible Heltec sensor modules, and three externally accessible HY2.0 4-pin I2C-style connectors — useful for Home Assistant and other sensor projects without opening the case.
KEY FEATURES
- Includes RC32 (ESP32-S3 + SX1262) — 902–928 MHz, TX 21±1 dBm.

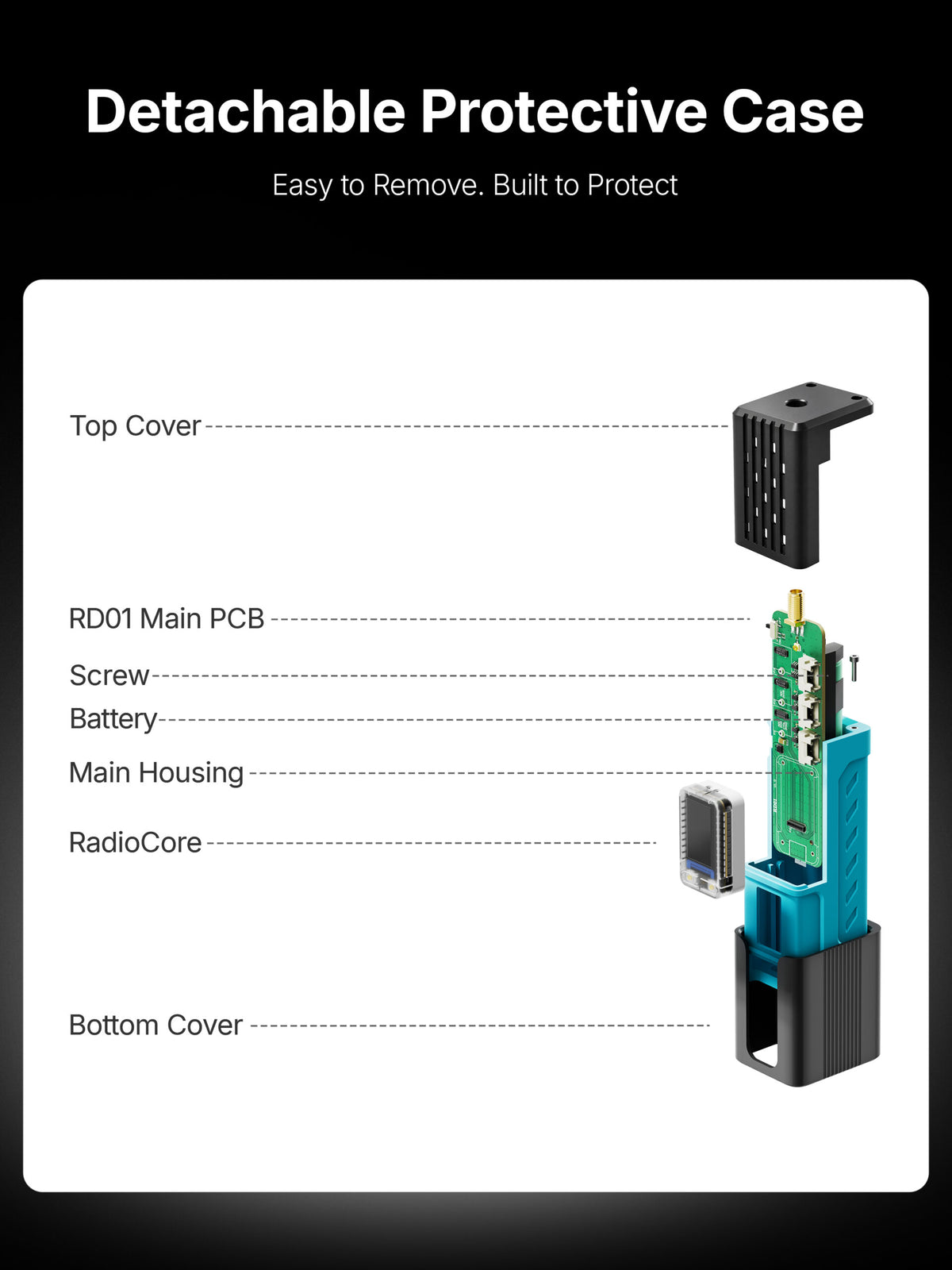

- PLA 3D-printed enclosure with detachable protective covers.

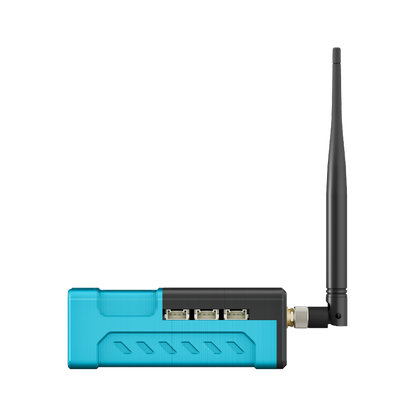

- Six sensor interfaces: 3× B2B (compatible sensor modules) + 3× HY2.0 4-pin connectors accessible from outside the case.
- Onboard 18650 Li-ion battery holder; battery included with this kit.
- Whip LoRa antenna (SMA female); USB-C; USER / RST / POWER controls.
- Designed for sensor integration (e.g. Home Assistant). RC32 can run Meshtastic / MeshCore, but Heltec notes pin conflicts if sensors are connected — not recommended when using the sensor ports.
SPECIFICATIONS
| Category | Details |
| Product Name | RD01 Sensor Extension Kit for RadioCore RC32 — 902–928 MHz, 21±1 dBm |
| RadioCore (included) | RC32-62 — ESP32-S3 + LoRa SX1262 |
| Frequency (this listing) | 902–928 MHz |
| TX Power (this listing) | 21±1 dBm |
| Enclosure | PLA, 3D-printed |
| Battery | 18650 Li-ion (holder onboard; cell included) |
| Interfaces | B2B × 3; HY2.0 4-pin × 3 (externally accessible) |
| Antenna Connector | SMA female |
| Compatible MCU | RC32 (this kit); board also listed compatible with RC52 |

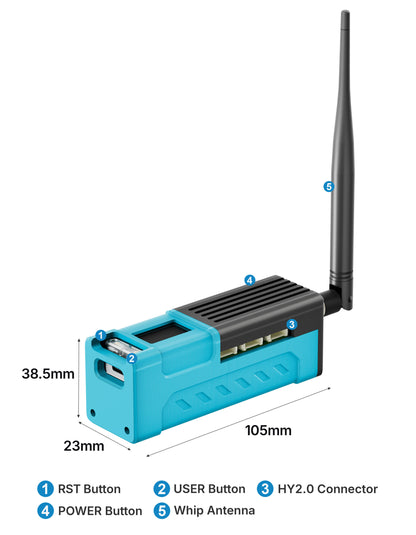

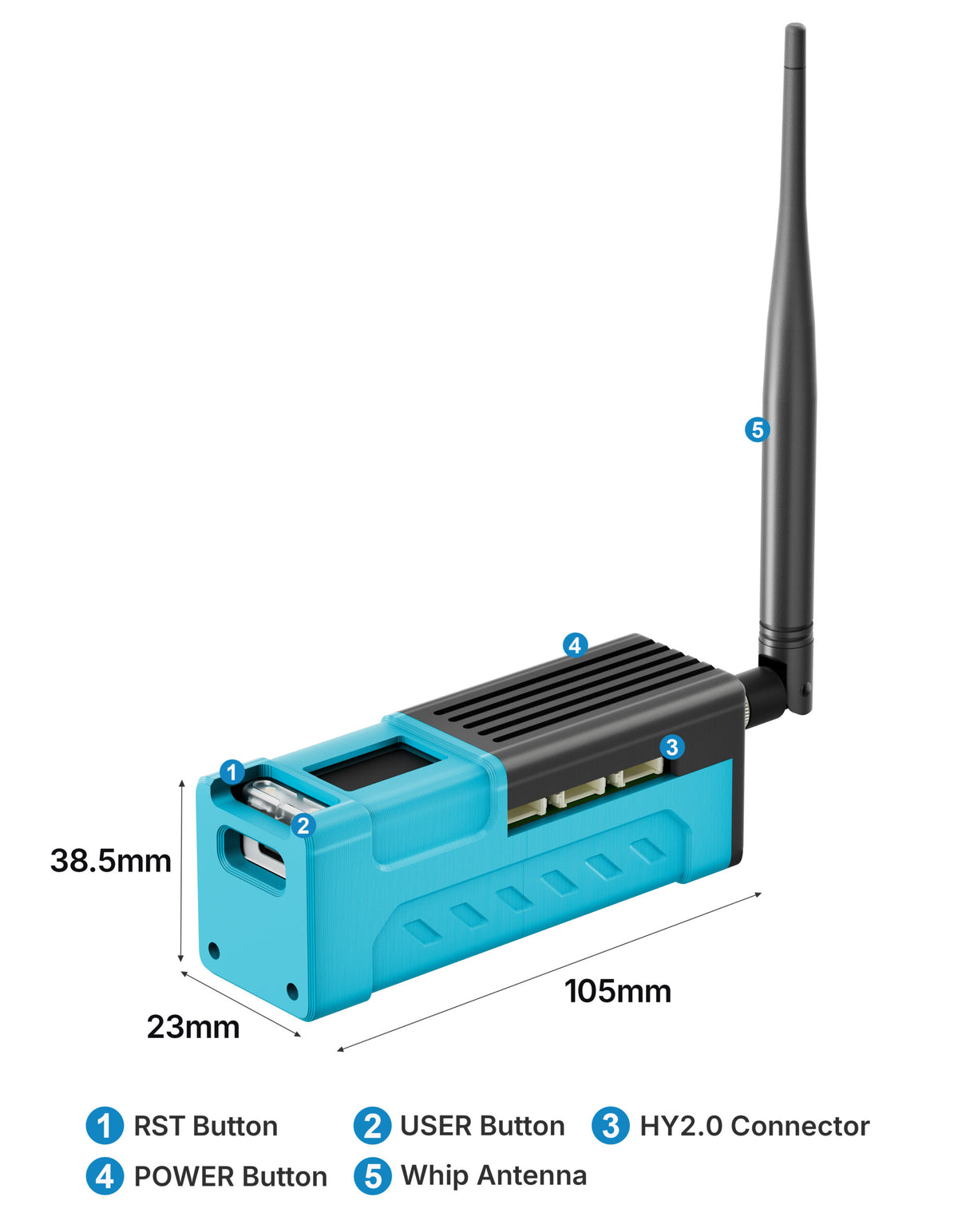

| Dimensions | 105 × 23 × 38.5 mm |
WHAT'S INCLUDED
- 1 × RadioCore RC32-62 (902–928 MHz, 21±1 dBm)
- 1 × LoRa antenna
- 1 × 18650 Li-ion battery
- 1 × RD01 sensor extension board with PLA 3D-printed enclosure
NOTES
- Sensor modules and HY2.0 adapter cables are sold separately unless listed with this kit.
- For Meshtastic / MeshCore: Heltec advises against using RD01’s sensor pins with those stacks due to pin conflicts — fine if you do not connect sensors.
- Docs: product page · Heltec wiki.
