Heltec RS-CP01 PIR & Camera Expansion Kit for RadioCore RC32, 902-928 MHz

Note: This is the Heltec RS-CP01 PIR & Camera Expansion Kit configured with RadioCore RC32-68 (Wi-Fi HaLow), 902–928 MHz, and 28±1 dBm TX power. This kit includes the RC32-68 RadioCore module (not the expansion board alone).

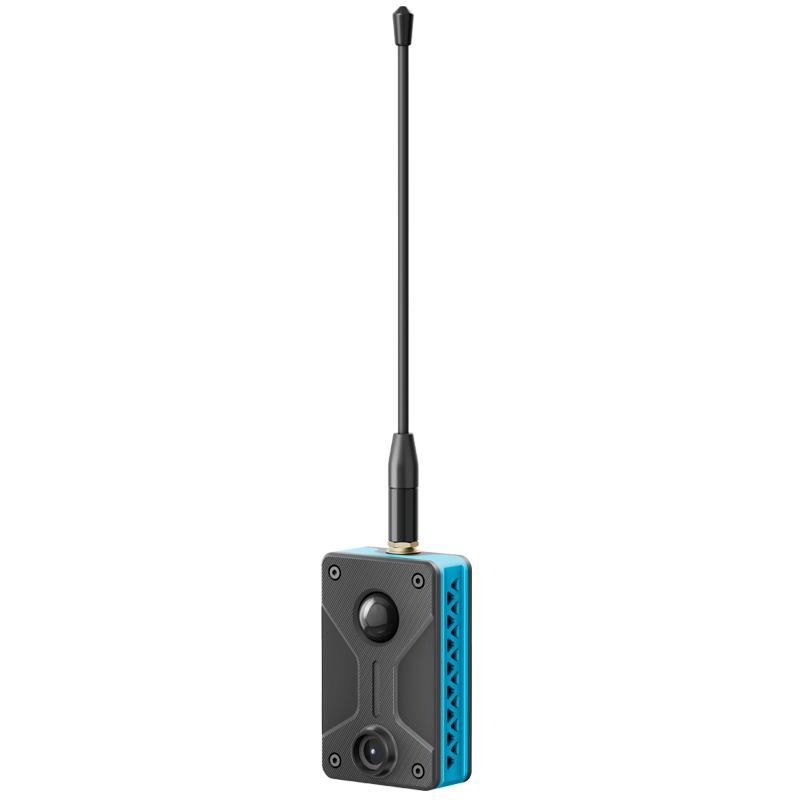

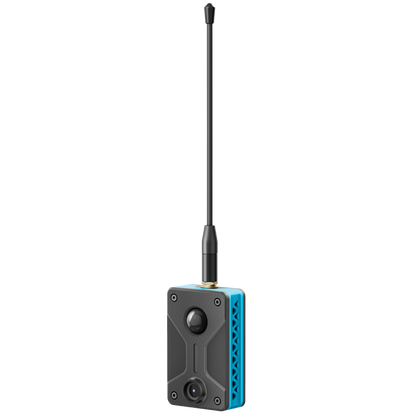

RS-CP01 pairs a RadioCore RC32-68 Wi-Fi HaLow node with a PIR motion sensor and a 120° wide-angle camera in a compact PLA enclosure — for low-power remote monitoring and sensing projects.

KEY FEATURES

• Includes RadioCore RC32-68 (ESP32-S3 + Wi-Fi HaLow MM6108Q) at 902–928 MHz, TX 28±1 dBm.
• Integrated PIR sensor (RDB223) and OV3660 camera (21 mm, 120° wide-angle).

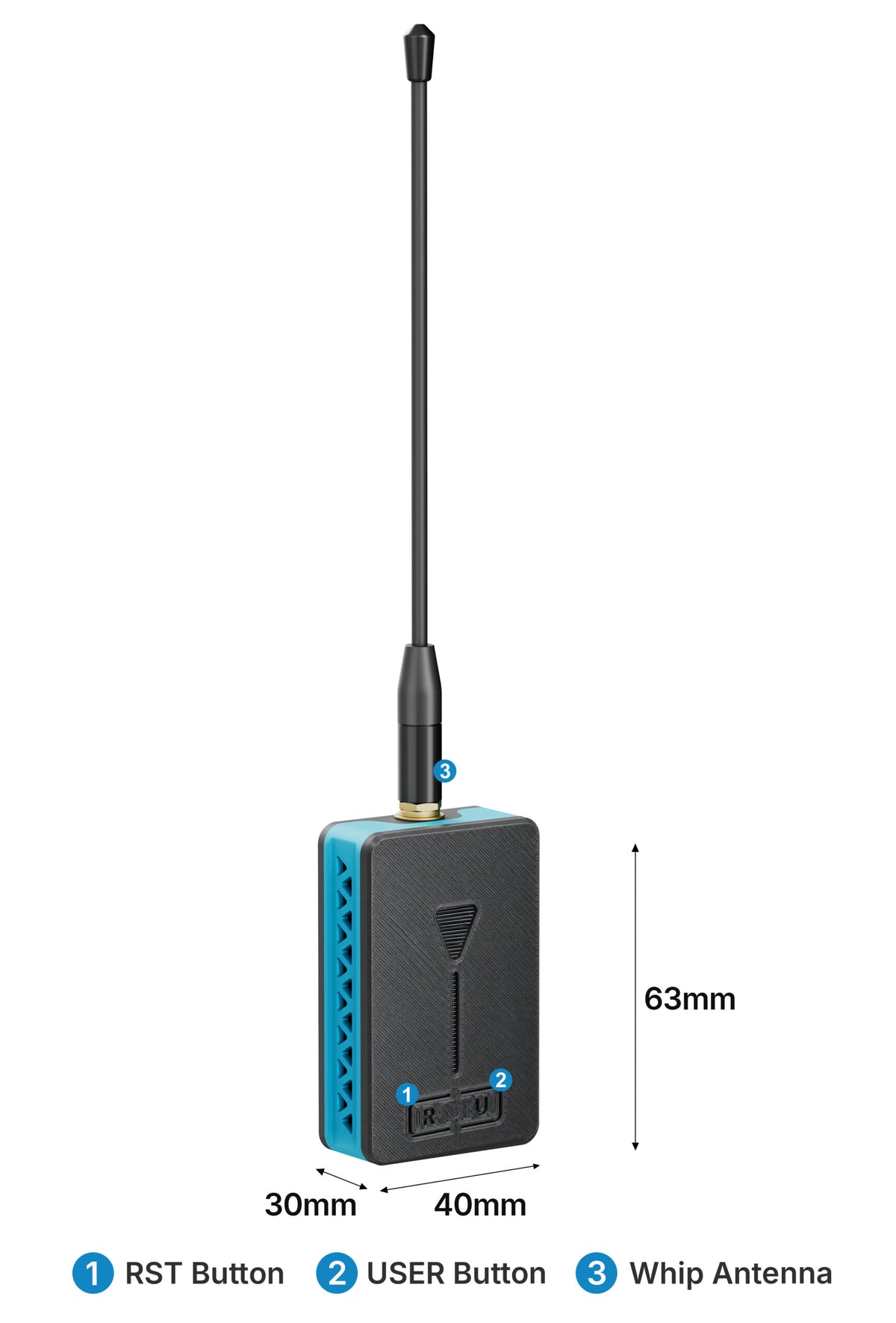

• PLA enclosure (FDM), compact 30 × 40 × 63 mm form factor.
• Power via USB-C (battery not included).
• Heltec Wi-Fi HaLow framework / libraries and RadioCore expansion peripherals support.

SPECIFICATIONS

WHAT'S INCLUDED

This kit includes the RadioCore RC32-68 module (Wi-Fi HaLow), not only the expansion board:

• 1 × RadioCore RC32-68 (902–928 MHz, 28±1 dBm Wi-Fi HaLow)
• 1 × Antenna
• 1 × RS-CP01 base board
• 1 × PIR sensor
• 1 × Camera

Not included: battery — power via USB-C.

NOTES

• This listing is specifically RC32-68 / 902–928 MHz / 28±1 dBm.
• Firmware tip (RC32): hold USER, press RST once, release USER to enter bootloader; press RST again after flashing.
• Docs: product page.
