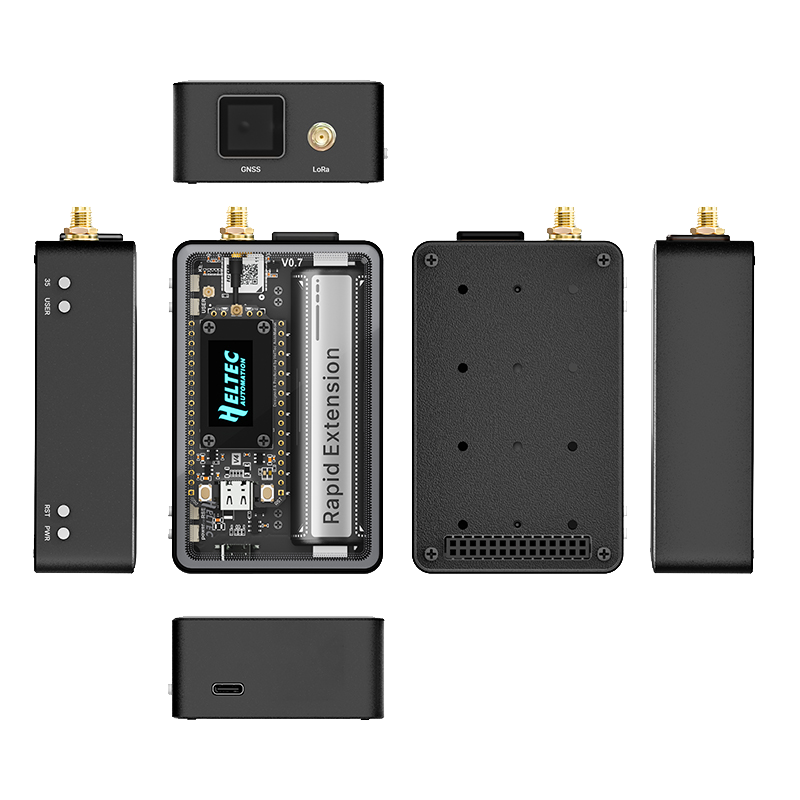

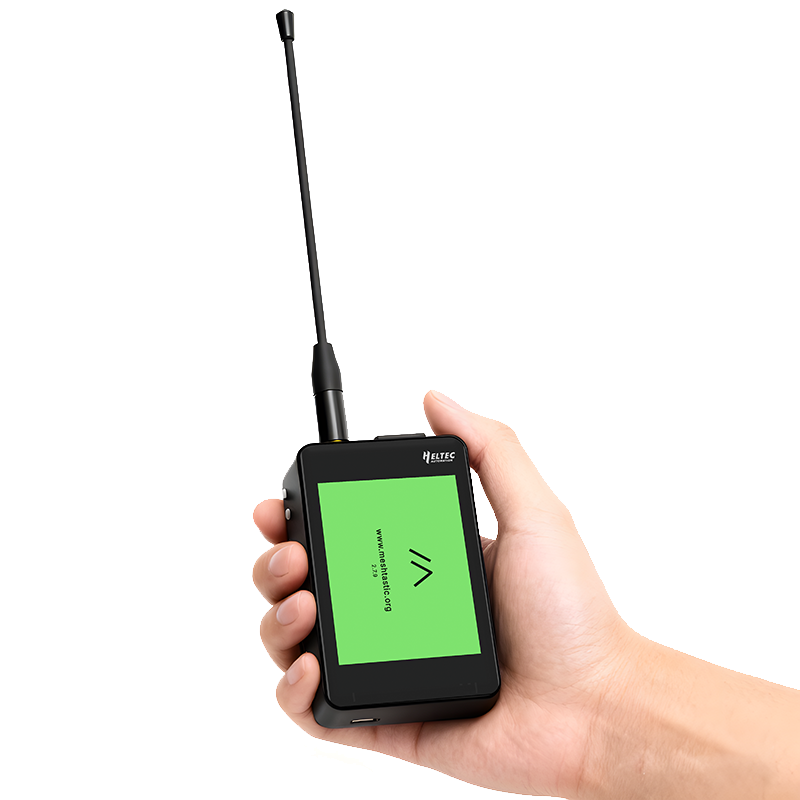

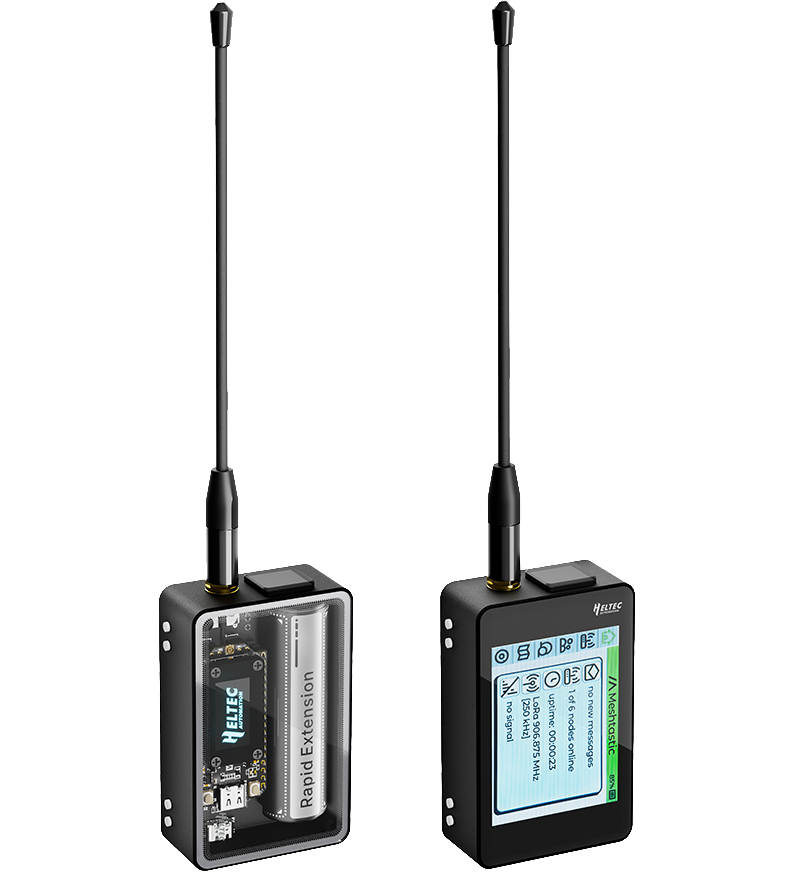

Heltec WiFi LoRa 32 V4 Expansion Kit

Note: This is the official Heltec WiFi LoRa 32 V4 Expansion Kit. It comes complete with the WiFi LoRa 32 V4 board pre-installed in the housing, expansion board, LoRa antenna, and touchscreen front panel. Battery is not included in this configuration. Perfect for Meshtastic, LoRaWAN, and custom IoT projects.

The WiFi LoRa 32 V4 Expansion Kit is a ready-to-deploy solution that includes the powerful Heltec WiFi LoRa 32 V4 board already assembled into a premium protective housing. It features a sleek tempered glass touchscreen front panel, aluminum alloy sides, and a durable polycarbonate rear cover — ideal for Meshtastic mesh networking, portable long-range communication, asset tracking, environmental monitoring, and off-grid IoT applications.

This configuration includes the touchscreen and supports optional GNSS for GPS tracking. No battery is included, allowing you to choose your own power solution or add the 2800mAh 18650 battery from our recommended accessories.

KEY FEATURES

• Complete Expansion Kit: Includes WiFi LoRa 32 V4 board pre-installed in housing, expansion carrier board, LoRa antenna, and tempered glass touchscreen front panel.
• Premium Protective Enclosure: Tempered glass touchscreen front, aluminum alloy side panels, and impact-resistant polycarbonate rear cover.

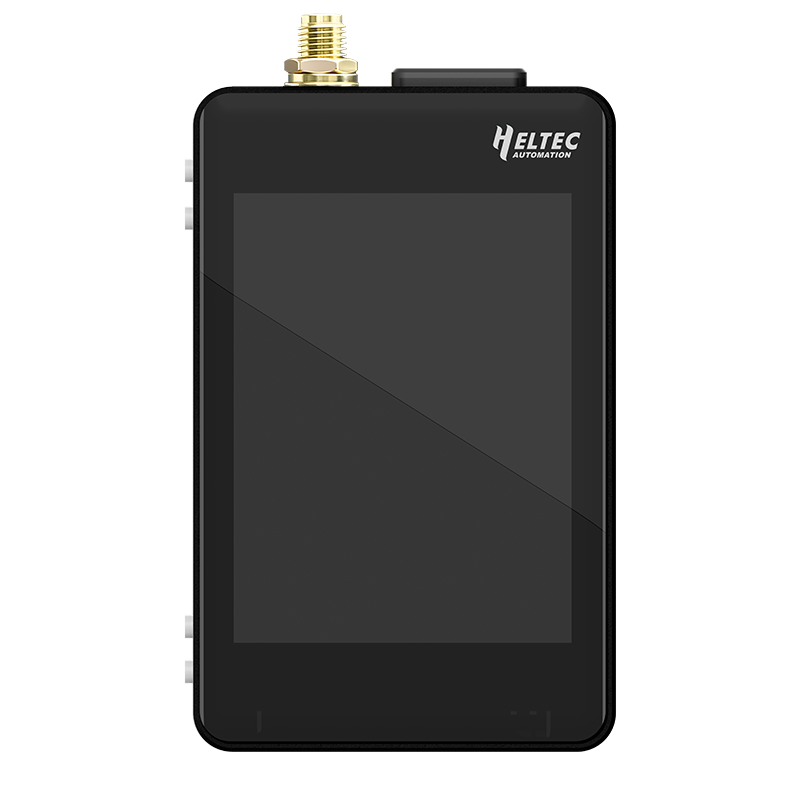

• Built-in 320×240 Touchscreen for easy status viewing and interaction without a phone or computer.
• Optional Quectel L76K GNSS module support (GNSS antenna included when selected) for precise location tracking.
• Built-in triaxial accelerometer (DA217) for motion detection and advanced use cases.
• Solar input support and B2B female expansion socket for easy integration of sensors or additional modules.
• High-power LoRa performance (up to 28dBm) with SMA female antenna connector for excellent range.

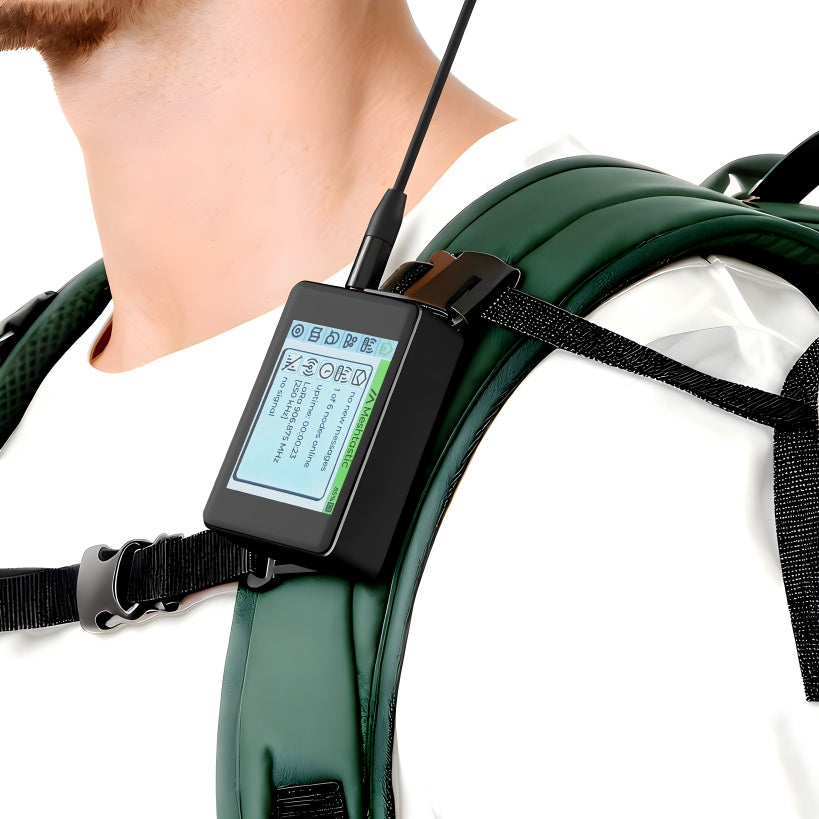

• Compact, lightweight, and rugged design — perfect for handheld, field deployment, or portable Meshtastic nodes.

SPECIFICATIONS

WHAT'S INCLUDED

• 1 × WiFi LoRa 32 V4 board (pre-installed in housing)
• 1 × Expansion Housing with Tempered Glass Touchscreen front

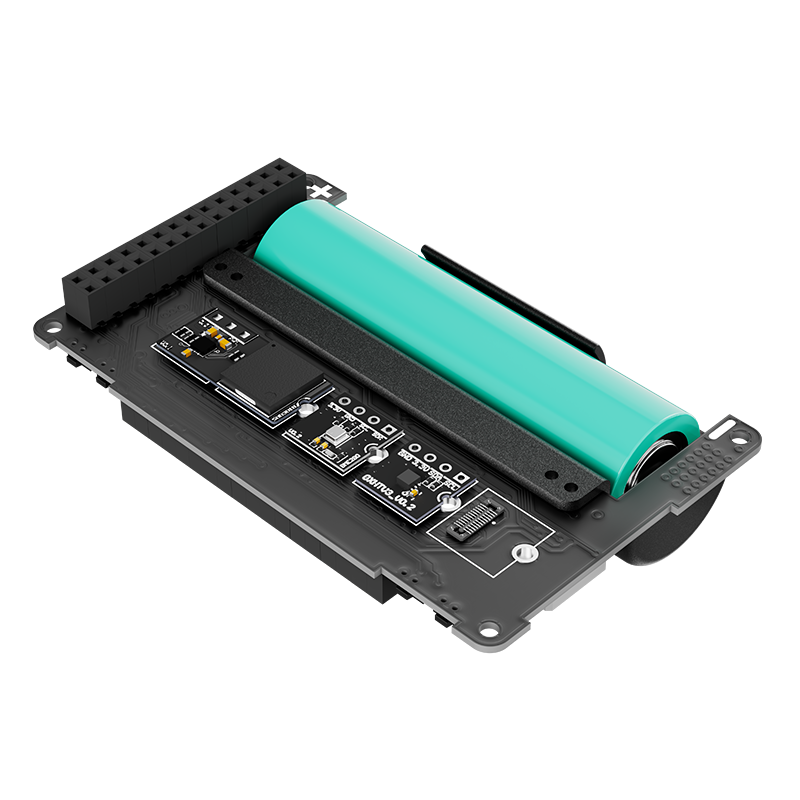

• 1 × Expansion carrier board
• 1 × LoRa Antenna (SMA)
• GNSS Antenna

NOTES

• Battery is not included in this version (you can add a 2800mAh 18650 battery separately).
• Not waterproof — suitable for indoor or protected outdoor use.
• V4 housing is not compatible with older V3 boards.
• Excellent choice for building portable Meshtastic nodes or custom LoRa projects.
