Radxa UFS 3.1 Module 128GB

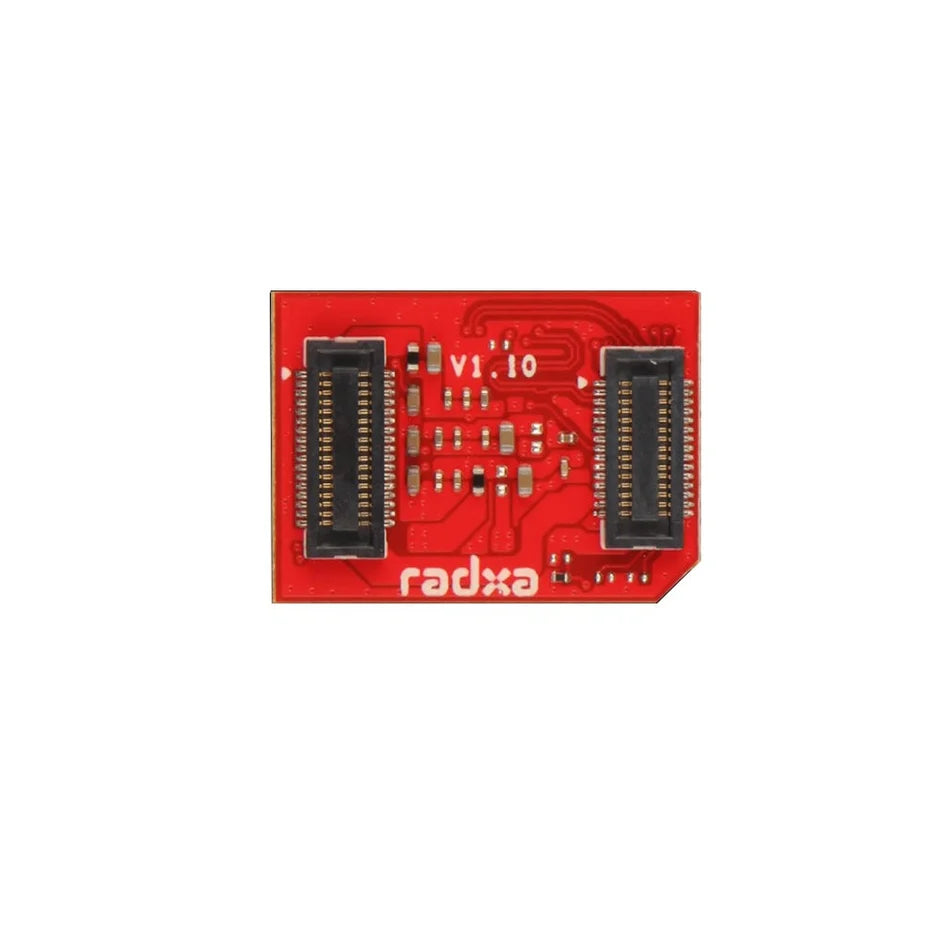

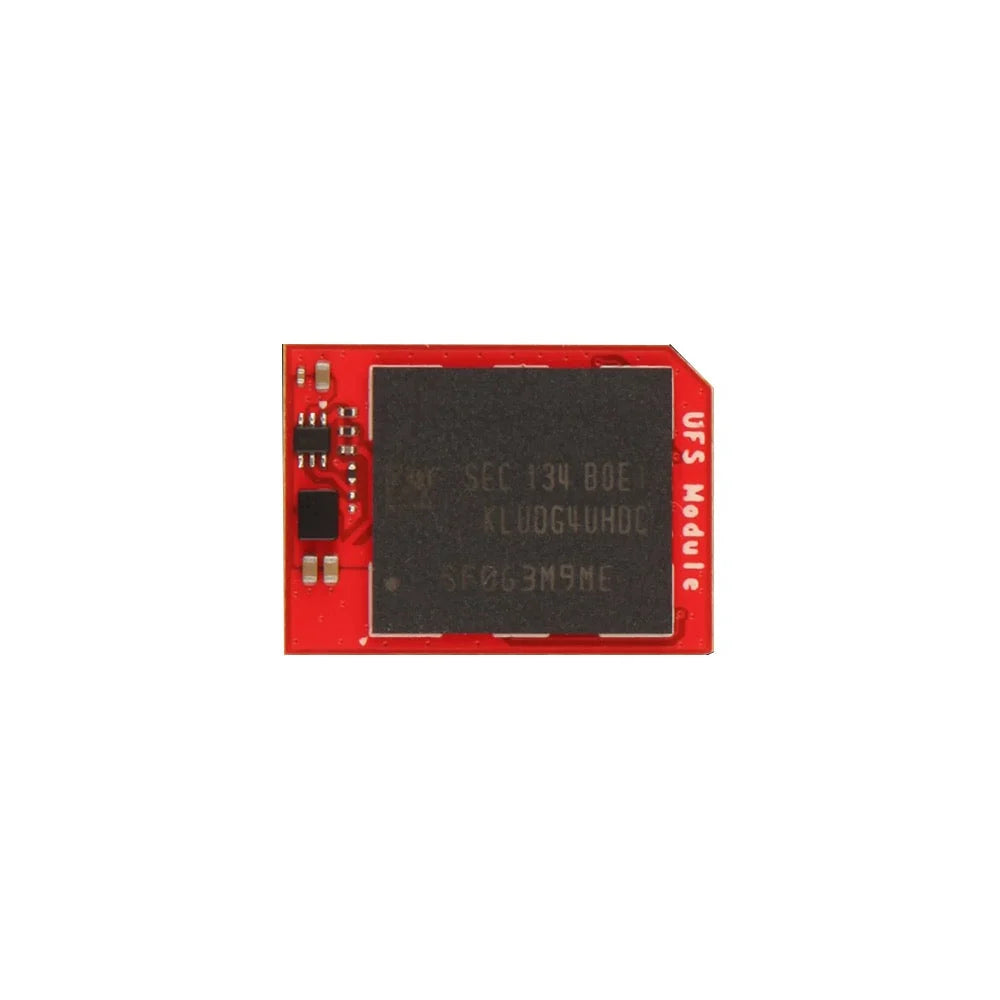

The Radxa UFS 3.1 Module (128GB) is a plug-on boot and storage module for Radxa boards with a UFS / eMMC module connector. UFS 3.1 is much faster than microSD and typical eMMC for OS boot and everyday I/O. Capacity is 128GB.
KEY FEATURES
- 128GB UFS 3.1 plug-on module
- Faster boot and storage than microSD or typical eMMC
- Solder-free dual B2B connector
- Can be used as OS drive or extra storage
- Works with compatible Radxa or other boards that have a UFS module socket
SPECIFICATIONS
| Category | Details |
|---|---|
| Model / SKU | RA022-B10J0U2 |
| Interface | UFS 3.1 (JEDEC JESD220E) 2-lane, HS-Gear4 |
| Capacity | 128GB |
| Peak performance | Up to about 2100 MB/s read and 1800 MB/s write with WriteBooster Real speed depends on the host board |
| Typical host speed | On ROCK 4D (RK3576), about 1000 MB/s read and 250 MB/s write in typical tests |
| Connector | Dual B2B (30-pin signal + 34-pin mount) |
| Use | OS boot or data storage |
| Listed compatible boards | Radxa Cubie A7A Radxa ROCK 4D Radxa CM4 IO Board Other boards with the matching UFS / eMMC module socket |
What's Included:
- 1 × Radxa UFS 3.1 Module 128GB
NOTES
- This is the module only. A USB UFS/eMMC reader is sold separately if you want to flash it from a PC
- Use only on boards with a matching Radxa UFS / eMMC module connector. It is not an SD card or a standard NVMe SSD
- Do not force-fit third-party or untested modules on a different connector
