I2C 20×4 LCD Module
I2C 20×4 LCD Module
Thank you for supporting a US-based small business!
In stock
Couldn't load pickup availability
🎄 Sending this as a gift?
Add gift wrapping to this order for $6.95. Pricing is left out of the package.
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼

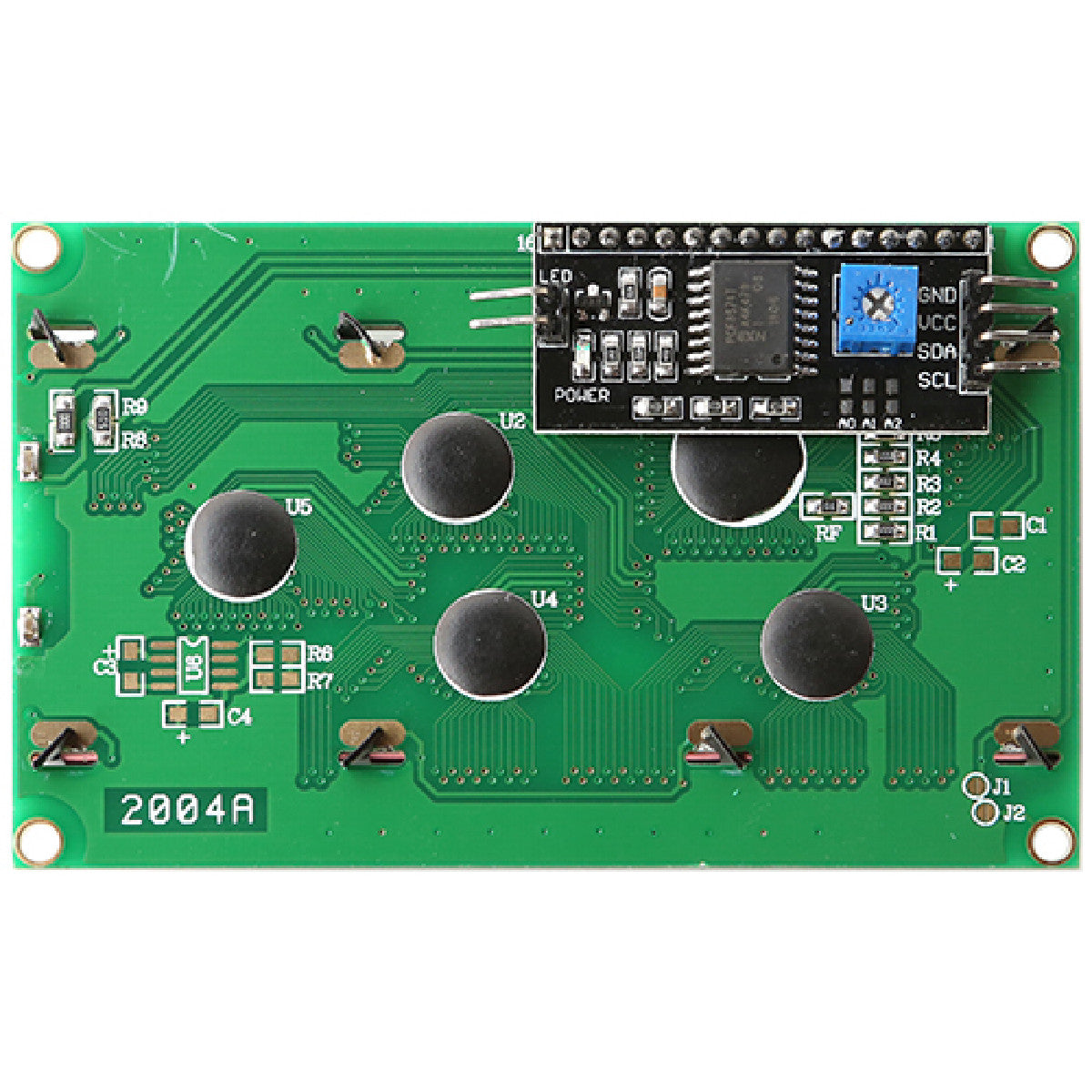

This LCD displays 20 characters wide, 4 rows in white texts on blue background. It has a back-light, a contrast adjust potentiometer, and a simple I2C communication interface. You can connect it to ODROID-H2 with four jumper wires directly and you will like to monitor important real-time system information from Linux OS.
SPECIFICATIONS
- I2C Address: 0x3F or 0x27
- Number of Characters: 20 characters x 4 Lines
- Blue LED backlight with white font color
- Adjustable contrast
- Supply voltage: 3.3V
- Interface: I2C 400Khz
- Dot size: 0.55 x 0.55 mm
- Dot pitch: 0.60 x 0.60 mm
- Character size: 2.96 x 4.75 mm
- Character pitch: 3.55 x 5.35 mm
-
Size: 98x60x22mm
