JustBoom Amp and DAC Zero pHAT for Raspberry Pi Zero

JustBoom Amp and DAC Zero pHAT for Raspberry Pi Zero

Sold out
$25.95 - $25.95
$25.95
$25.95 - $25.95
$25.95
Availability:
Out of stock!
Notify Me When Available

Reach out to us for more information

Harness the clarity of your high-definition music files with the JustBoom Pi Zero amplifier board. Audio the way it was meant to be heard!

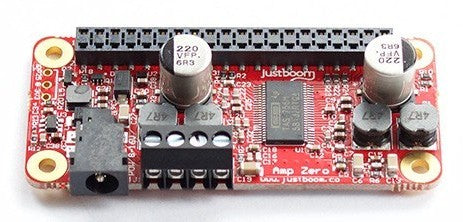

The JustBoom Pi Zero Amp is a high quality audio amplifier designed specifically for the Raspberry Pi Zero. It provides up to 192kHz/32bit digital to analogue conversion and gives up to a 2x40W Class-D amplified output. We’ve also included an optional IR receiver to allow remote control operation of your Raspberry Pi. Simply stack the plug-and-play Pi Zero Amp onto your Pi Zero and you can be streaming flawless high quality audio in minutes over the cloud or local network.

KEY FEATURES

  • Full high quality audio - 384kHz / 32bit
  • Advanced ESD protection
  • Plug and play compatibility for ease of use
  • Hardware volume control from your Raspberry Pi Zero
  • No soldering required
  • Powered by the Raspberry Pi GPIO header
  • Compatible with Raspberry Pi Zero and the new Pi Zero Wireless
  • Mounting hardware included
  • Optional IR receiver included in package
  • Full driver support in Raspbian / NOOBS

SPECIFICATIONS
  • TAS5756 Digital Audio AMP – Class D
  • Texas Instruments TPA6133A2 headphone amplifier – 138mW
  • Maximum output is 30W (RMS) 55W (Peak)
  • Fully integrated hardware volume mixing via “alsamixer” or any ALSA compatible application
  • Optional Vishay TSOP4838 IR receiver (solder yourself if required)
  • 112db SNR and -93db THD for best-in-class audio
  • Advanced ESD protection on both headphone and RCA outputs

USAGE IDEAS
  • Pi Zero Gameboy
  • Interactive art projects with audio requirement
  • Arcade table projects with high quality, immersive audio
  • Streaming (either from cloud or network storage) high-definition audio player
  • Internet radio player with high quality stereo audio
  • Refit old radios and boomboxes with high quality streaming audio
  • And many many more....

LINKS

Warranty is valid for two weeks, starting upon date of receipt.

SKU E0287

Customer Reviews

Based on 3 reviews
67%
(2)
0%
(0)
0%
(0)
0%
(0)
33%
(1)
D
Dave H
Justboom Amp Zero

I've been using this board for over 3 months now in my bedroom system and am very happy with how well it works. I'm using this with a Pi Zero W and Picore Player, driving a pair of ProAc Tablette Reference 8 speakers and it sounds very good. I highly recommend this board. If you're on the fence, just buy it. I'm sure you'll be pleased as well.

M
Mitch C
Awesome sound

Been using this for about a week now and it sounds awesome. Setup was straightforward. Who knew good things came in small packages? :)

g
gary k
and then... just boom! fried my pi

If you review this product on the justboom website, you'll see 6 reviews, all are five stars. Twice they blocked my one star review. Think about that when you order this product.
The only use I can find for this is if you need to keep pipes from freezing. It will heat to very hot temperatures. I got two months of use before it eventually shorted. The just boom support team was anything but supportive, and ignored my requests for assistance - continuing to re-open the ticket before letting it expire again and again.
Ameridroid was not much better. A one and done purchase from this operation.
Let's see if this review gets posted or will i be amp zero for three?

Let me start by expressing my condolences for your experience.

In the Maker community, it is expected that the end user may tinker with any and all components they purchase from us. However, certain types of tinkering can lead to damaging a single product or causing cascading damage through other connected products/components. This type of tinkering cannot be covered under warranty for obvious reasons.

This is a rather abnormal case. Here are some of the factors we have to consider before approving a warranty claim:

1. You ordered a similar product on Mar 17, 2018, decided it wasn't the correct part for your application, and we sent you this product at your request on Mar 26, 2018. We even covered the return shipping expense. After that, we only heard from you the first time on Nov 10, 2018. That is 7 months later, which is well beyond the stated warranty period on our 'Payments & Returns' page.

2. The product has been heavily damaged. In our inspection, it looks like most of this damage was caused by attempted modifications. The 40-pin header housing was removed, 6 of the header pins were desoldered, C37 (surface-mount capacitor) was missing, the barrel jack had been removed, L5 had been damaged, J1 had been heavily damaged (visual inspection looks like it was caused by a soldering iron), and both of the large filter capacitors had been removed. A number of those mods could have caused the problems you experienced.

Unfortunately, we cannot process a warranty claim that is accompanied by all these contributing factors. We have sold dozens of these units and have not had a single claim to support a potentially defective product design.
