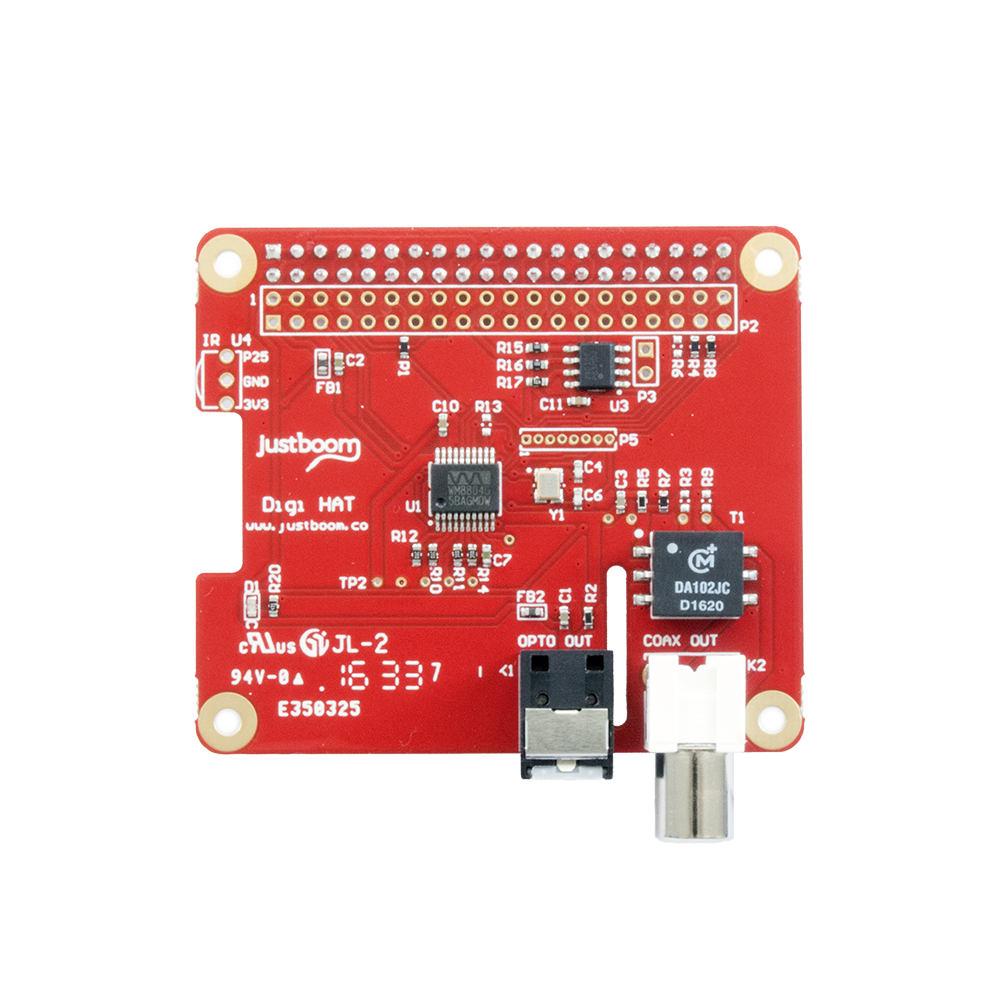

JustBoom Digi HAT for Raspberry Pi
The JustBoom Digi HAT includes a 192kHz/24bit digital audio chip with low jitter, bit perfect digital output (S/PDIF) over optical or coaxial connectors for an uncompromised high-quality audio experience. The JustBoom Digi HAT includes an output transformer for full galvanic isolation between your Raspberry Pi and your DAC on the coaxial output.
The Raspberry Pi Digi HAT uses the I2S interface for its audio input which reduces CPU load on the Raspberry Pi compared to USB solutions. It is also powered directly from the GPIO header so no extra cables or power supplies are required to connect to the Raspberry Pi. All of the Raspberry Pi GPIO pins are still accessible on the Digi HAT for easy customization of your project - add additional sensors, buttons, LEDs, rotary encoders or anything your heart desires.
- Dedicated S/PDIF output interface chip supports up to 192kHz / 24bit resolution
- Digital audio output over either optical (TOSLINK) or coaxial (RCA electrical) connectors
- Low jitter, bit perfect digital output
- Output transformer for galvanic isolation
- Plug and play compatibility for ease of use
- Software volume control from your Raspberry Pi
- No soldering required
- Powered by the Raspberry Pi GPIO header
- Compatible with Raspberry Pi A+,B+, 2B, 3B and Zero
- Mounting hardware included
- Optional IR receiver included in package
- All Raspberry Pi GPIO pins still accessible via 40pin unpopulated extension header
- The JustBoom Raspberry Pi Digi is fully HAT compliant
- Full driver support in Raspbian / NOOBS
- Compatible with OSMC / RuneAudio / Volumio / Moode / PiCorePlayer / PiMusicBox / OpenELEC and others
- WM8804GEDS S/PDIF Transceiver with 24bit/192khz and has an integrated low jitter PLL (50ps RMS)
- DA101JC high bandwidth digital output transformer for galvanic isolation on electrical (coaxial/RCA) output
- Integrated EEPROM for automatic Raspberry Pi devicetree driver configuration and fully HAT compatible
- Digital signal output over S/PDIF with either optical (TOSLINK) or coaxial (RCA) connectors
- We recommend that if you are using the coaxial/RCA output that you connect the cable shield to the ground on the DAC / amplifier you are using and make sure that the DAC / Amplifier is using a power supply with the ground pin connected. This will help to reduce noise.
- Bit perfect digital audio transmission
- Optional Vishay TSOP4838 IR receiver included in package (solder yourself if required)
- While the hardware is able to output DTS/Dolby Digital, the Raspberry Pi software is not currently able to support this. Let us know if you want to implement this and we will do our best to help
- Circumstances where you need to have your streaming audio player (Raspberry Pi in this case) located separately from your amplifier or DAC. This method is usually superior to analog since the original digital signal is maintained until the amplification step (theoretically leading to less degradation of the sound).
- Streaming (either from cloud or network storage) high-definition audio player
- Multi-room audio player
- Surround sound for media centre / set-top box applications
- And many many more....
- Setup Guide - https://www.justboom.co/start/set-up-justboom-digi-hat-and-case/
- JustBoom Player Software - https://www.justboom.co/software/justboom-player/
- Product Guide - https://www.pi-supply.com/make/justboom-product-guide/
