JustBoom Digi Zero pHAT for Raspberry Pi Zero

Out of Stock, can be pre-ordered

Out of stock
$27.95

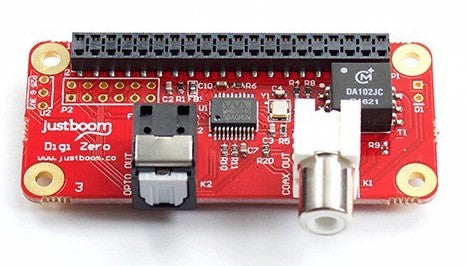

The JustBoom Pi Zero Digi pHAT is a high-resolution digital audio output add-on board for the Raspberry Pi Zero. The HAT produces a high-quality audio data stream that will not be negatively affected in any way.

We’ve designed the JustBoom Digi pHAT to be simple to install and use. With no soldering required and all the mounting hardware already provided you can be up and running in moments. We also include an optional IR receiver to allow remote control operation of your Raspberry Pi Zero.  It is also powered directly from the GPIO header so no extra cables or power supplies are required to connect to the Raspberry Pi Zero.

KEY FEATURES
  • Full high-quality audio – 384kHz / 32bit
  • Includes both a DAC and headphone amplifier
  • Line-level RCA and headphone amplifier 3.5mm jack outputs
  • Plug and play compatibility for ease of use
  • No soldering required
  • Powered by the Raspberry Pi GPIO header
  • Compatible with Raspberry Pi Zero and the new Pi Zero Wireless
  • Mounting hardware included
  • Optional IR receiver included in package
  • Full driver support in Raspbian / NOOBS

SPECIFICATIONS
  • Dedicated S/PDIF output interface chip supports up to 384kHz / 32bit resolution
  • Cirrus Logic WM8804GEDS S/PDIF Transceiver
  • Murata Power Solutions DA101JC Audio Digital Transformer
  • Fully integrated hardware volume mixing via "alsamixer" or any ALSA compatible application
  • Optional Vishay TSOP4838 IR receiver (solder yourself if required)
  • 112db SNR and -93db THD for best-in-class audio
  • Advanced ESD protection on both headphone and RCA outputs

USAGE IDEAS
  • Streaming (either from cloud or network storage) high-definition audio player
  • Multi-room audio player

LINKS

Warranty is valid for two weeks, starting upon date of receipt.
