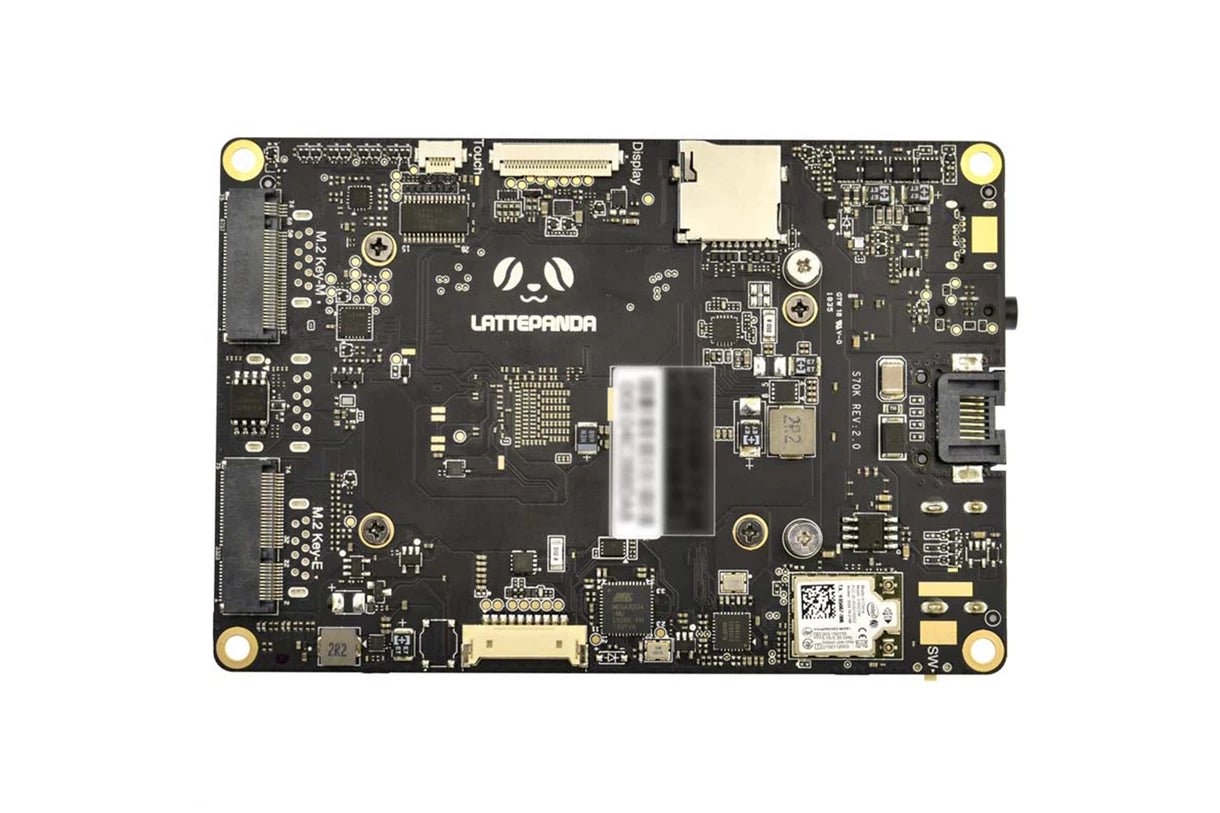

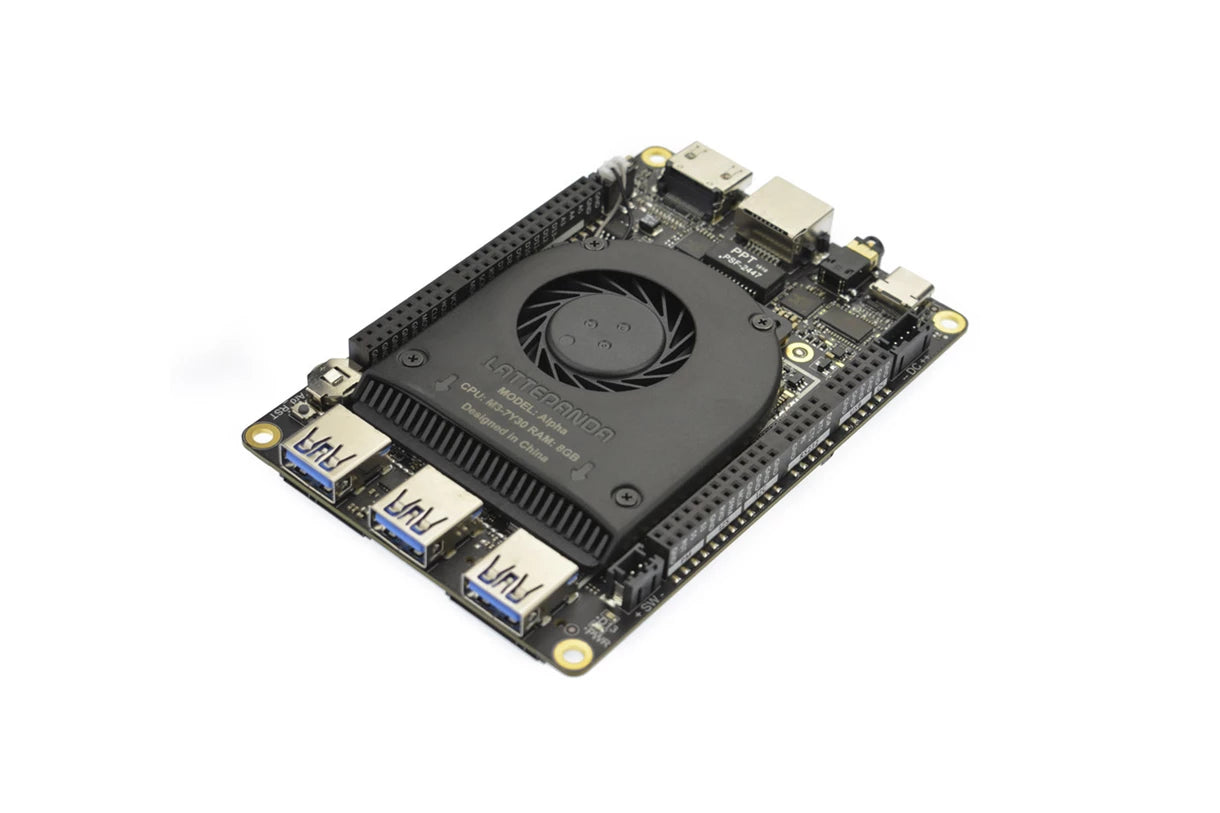

LattePanda Alpha 800s (8GB RAM) — Pocket-Sized x86 Single Board Computer

The LattePanda Alpha 800s is a compact, powerful x86-based single board computer that combines the performance of a mini PC with the expandability and maker-friendly features of an Arduino. Powered by an Intel Core m3-8100Y processor and 8GB of LPDDR3 RAM, it is ideal for Windows and Linux developers, IoT projects, edge computing, robotics, industrial automation, and DIY maker applications.

SPECIFICATIONS

Processor:

• Intel Core m3-8100Y (Dual-Core, up to 3.4 GHz Turbo Boost)
• 4 threads
• Intel UHD Graphics 615 (supports 4K video decode/encode)

Memory:

• 8GB LPDDR3 RAM (soldered, non-upgradable)

Storage:

• No onboard eMMC storage
• 1 × M.2 M-Key slot (PCIe x4) — supports NVMe SSD or SATA SSD (2280 size)
• 1 × M.2 E-Key slot — supports WiFi + Bluetooth modules

Wireless & Networking:

• WiFi 802.11ac (dual-band) + Bluetooth 4.2 (onboard)
• 1 × Gigabit Ethernet (RJ45)
• Optional M.2 WiFi 6 modules supported

Display & Graphics:

• 1 × HDMI 1.4 (up to 4K@30Hz)
• 1 × eDP 1.3 port (supports touch panels up to 2560×1600@60Hz)
• Intel UHD Graphics 615 with hardware video acceleration

USB & I/O:

• 3 × USB 3.0 Type-A ports
• 1 × USB Type-C port (supports Power Delivery, DisplayPort, and USB 3.0 data)
• 2 × 50-pin GPIO headers (includes full Arduino Leonardo co-processor — ATmega32U4)

Expansion:

• Full Arduino Leonardo compatibility via onboard co-processor
• M.2 expansion slots for storage and wireless
• eDP touch display support

Power & Dimensions:

• Power input: USB Type-C PD (9V/2A or 12V/2A recommended), 12V DC barrel jack, or 7.4V battery
• Typical power consumption: ~8W

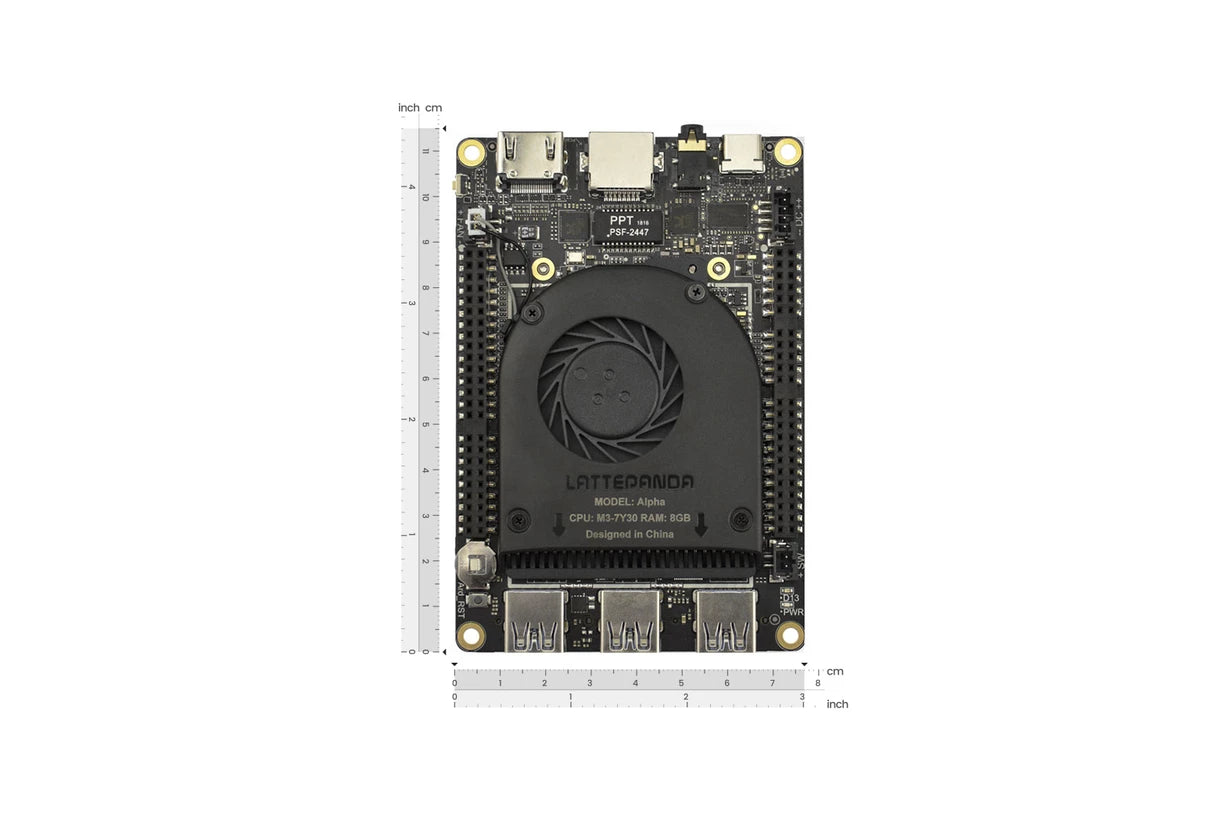

• Dimensions: 115 × 78 × 14 mm
• Includes active cooling fan

Operating Systems:

• Windows 10 / 11 Pro
• Ubuntu Linux
• Android
• Full x86 compatibility for most desktop Linux distributions

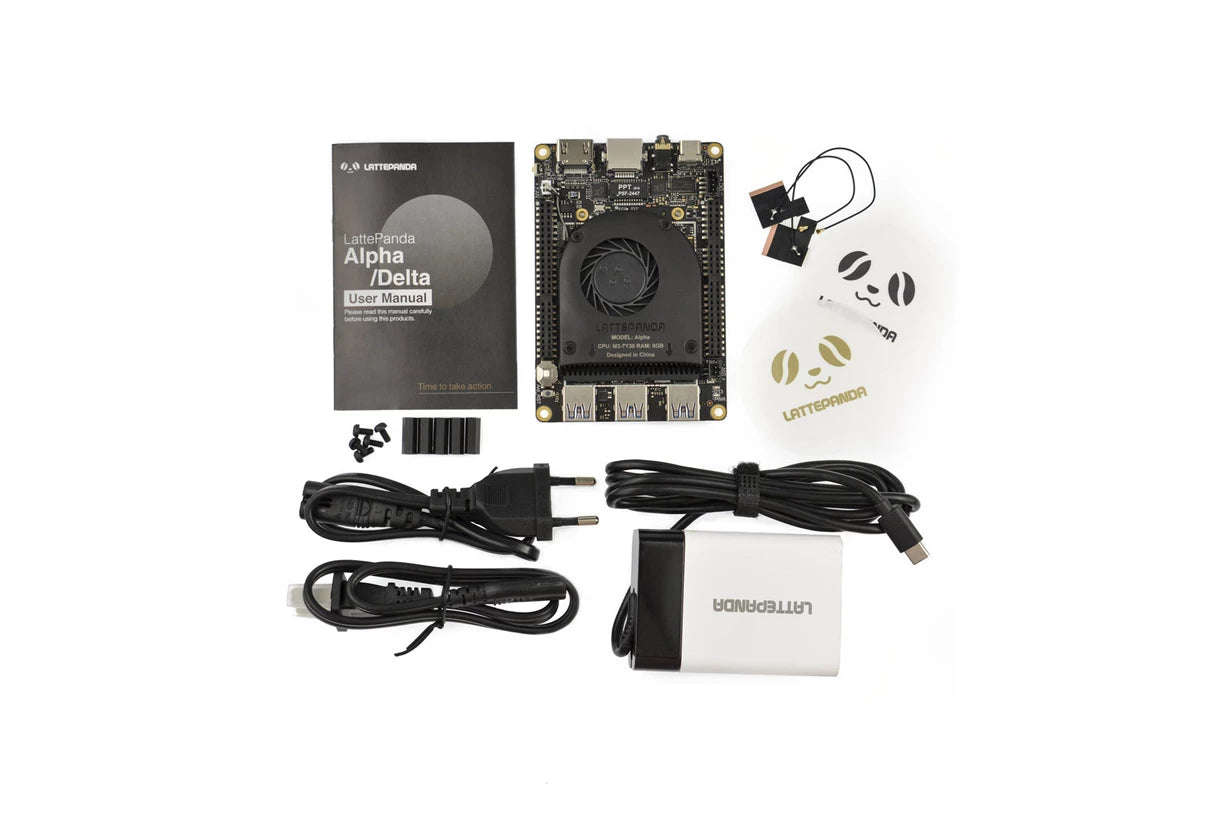

What is included:

• LattePanda Alpha 800s  x1
• Active cooling fan (Assembled) x1
• 45w PD Power adapter (with EU & US standard power cord)  x1
• Dual-band antenna x2
• RTC Battery (Assembled）x 1
• User Manual x 1

NOTES

• Arduino Leonardo co-processor enables direct Arduino sketch upload and GPIO control alongside x86 OS
• Ideal for makers who want Windows/Linux + Arduino on a single board
• Great for edge AI, robotics controllers, industrial HMI, and IoT gateways
• Keyboard, mouse, and HDMI monitor required for initial setup
• M.2 SSD and WiFi modules sold separately
