LED Power Button
LED Power Button
Thank you for supporting a US-based small business!
In stock
Couldn't load pickup availability
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping.
Description ▼

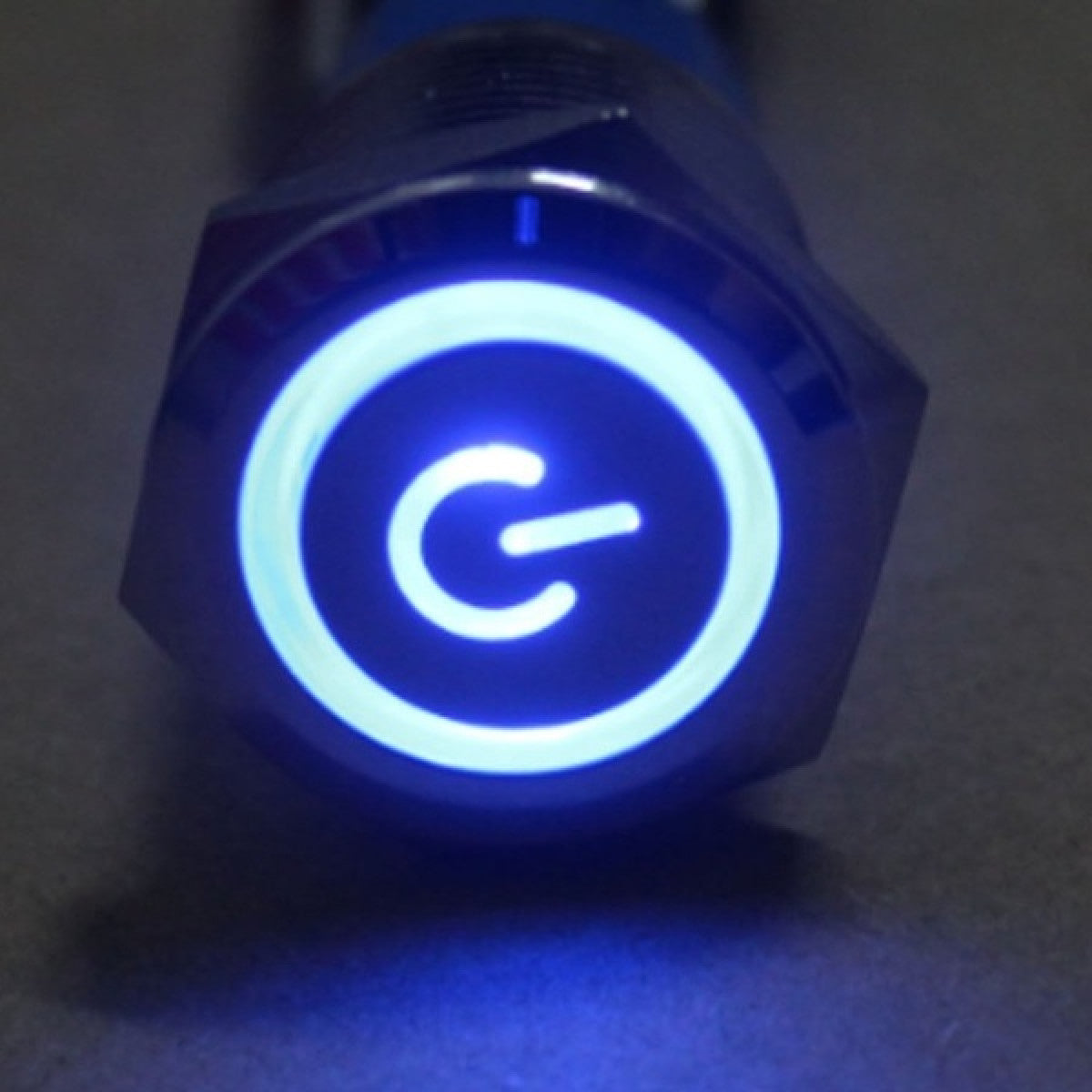

Blue illuminated Power Button for the ODROID-H2 with pre-assembled jumper wires. There is a small power switch on the ODROID-H2 board. But it is not easy to access the switch when you assemble(place?) the board in to a case. This beautifully illuminated power button is a good solution what you need! This button can be mounted on the official acrylic case Type-1, Type-2, Type-3 and Type-4.
Red wire: LED positive (Anode) : pin-4 or pin-14 on 24 pin header of ODROID-H3/H4 (Warning: pin-14 will always make the LED turns on even in the power-off state)
Black wire: LED negative (Cathode) : GND(pin-1) on 24 pin header of ODROID-H3/H4
Green wire : Switch-A : #PWR_BTN(pin-17) in 24 pin header of ODROID-H3/H4
Blue wire : Switch-B: GND(pin-19) on 24 pin header of ODROID-H3/H4
Warranty is valid for two weeks, starting upon date of receipt.
