Lilygo T-Echo Lite Kit

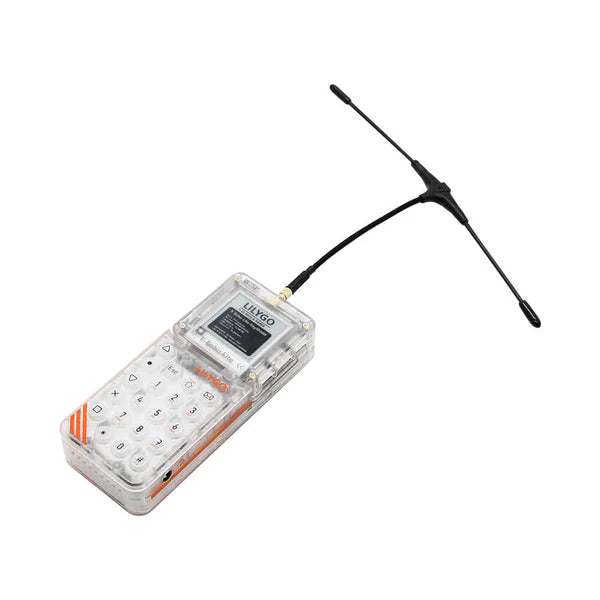

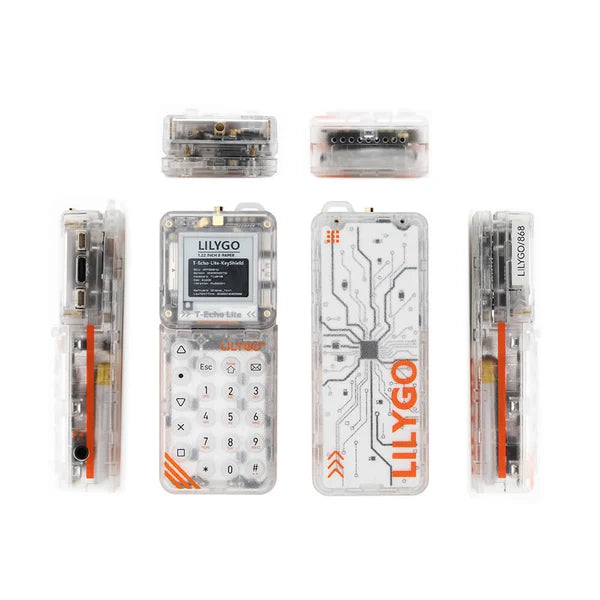

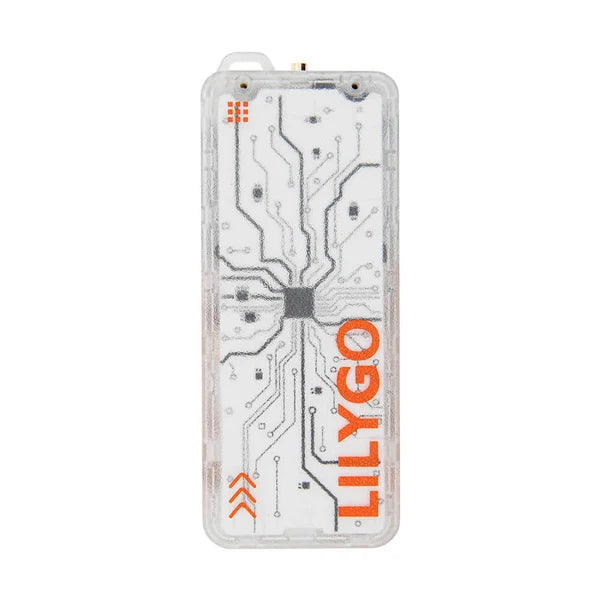

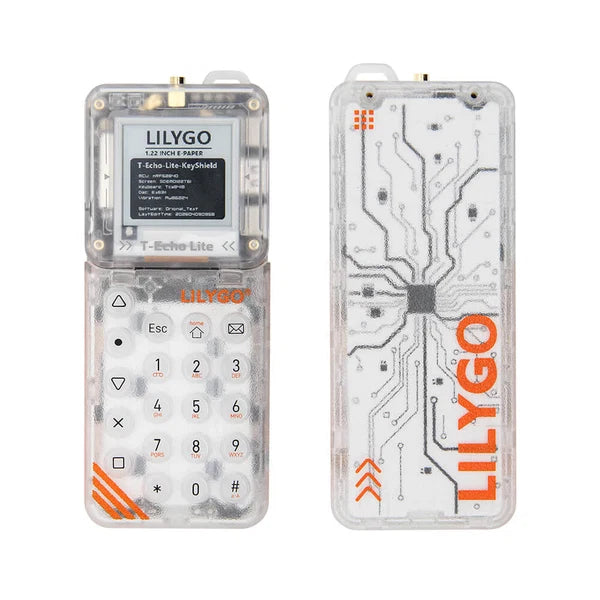

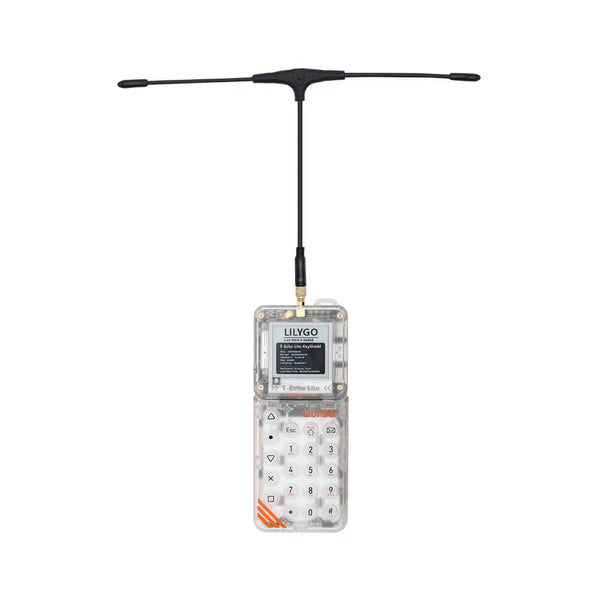

LILYGO T-Echo Lite

The LILYGO T-Echo Lite is a compact, ultra-low-power LoRa development board based on the Nordic nRF52840. It features a 1.22-inch e-Paper display, SX1262 LoRa transceiver, 9-axis IMU, and excellent power efficiency. Ideal for portable Meshtastic nodes, low-power IoT projects, and off-grid communication where size and battery life are critical.

KEY FEATURES

• Nordic nRF52840 MCU with Bluetooth 5.0
• SX1262 LoRa transceiver for long-range mesh networking
• 1.22-inch E-Paper Display (176 × 192) — sunlight-readable and extremely low power
• ICM20948 9-Axis IMU
• Ultra-Low Power: Deep sleep as low as 2–10 µA
• Solar Charging Support
• Compact Form Factor
• Meshtastic Compatible

SPECIFICATIONS

Processor:

• MCU: Nordic nRF52840 (Cortex-M4F @ 64 MHz)
• Flash: 1 MB (internal) + 32 MB external SPI Flash
• RAM: 256 KB

Wireless:

• LoRa: Semtech SX1262
• Bluetooth 5.0
• Supports Thread / Zigbee / Bluetooth Mesh

Display:

• 1.22-inch SPI E-Paper
• Resolution: 176 × 192
• Sunlight-readable, ultra-low power

Sensors:

• ICM20948 9-axis IMU

Power:

• USB-C charging
• Solar panel input support (4.5–6V)
• Li-ion battery connector
• Deep sleep current: 2–10 µA

Physical:

• Compact design

Software Support:

• Meshtastic
• Arduino IDE / PlatformIO / VS Code
• nRF SDK

What's Included:

• 1 × LILYGO T-Echo Lite board
• 1 × Antenna
• 1 × Lanyard

NOTES

• This is the compact “Lite” version of the T-Echo series — significantly smaller and more power-efficient than the standard T-Echo / T-Echo Plus
• Does not include the KeyShield / keyboard expansion
• Excellent for long-runtime Meshtastic nodes and low-power applications
• Deep sleep performance makes it one of the most power-efficient LILYGO LoRa boards available
