MangoPi MQ-Quad Plus Heatsink

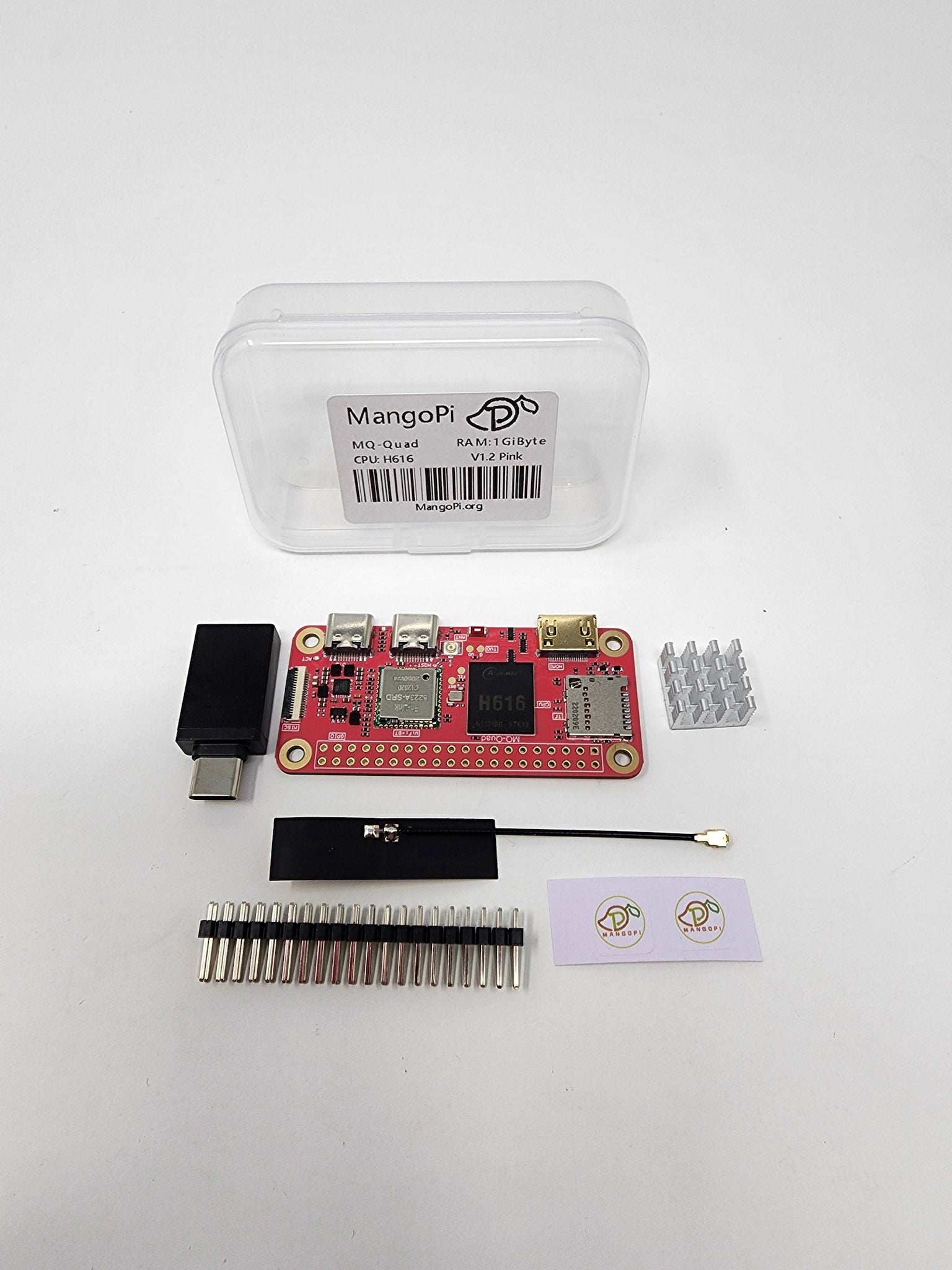

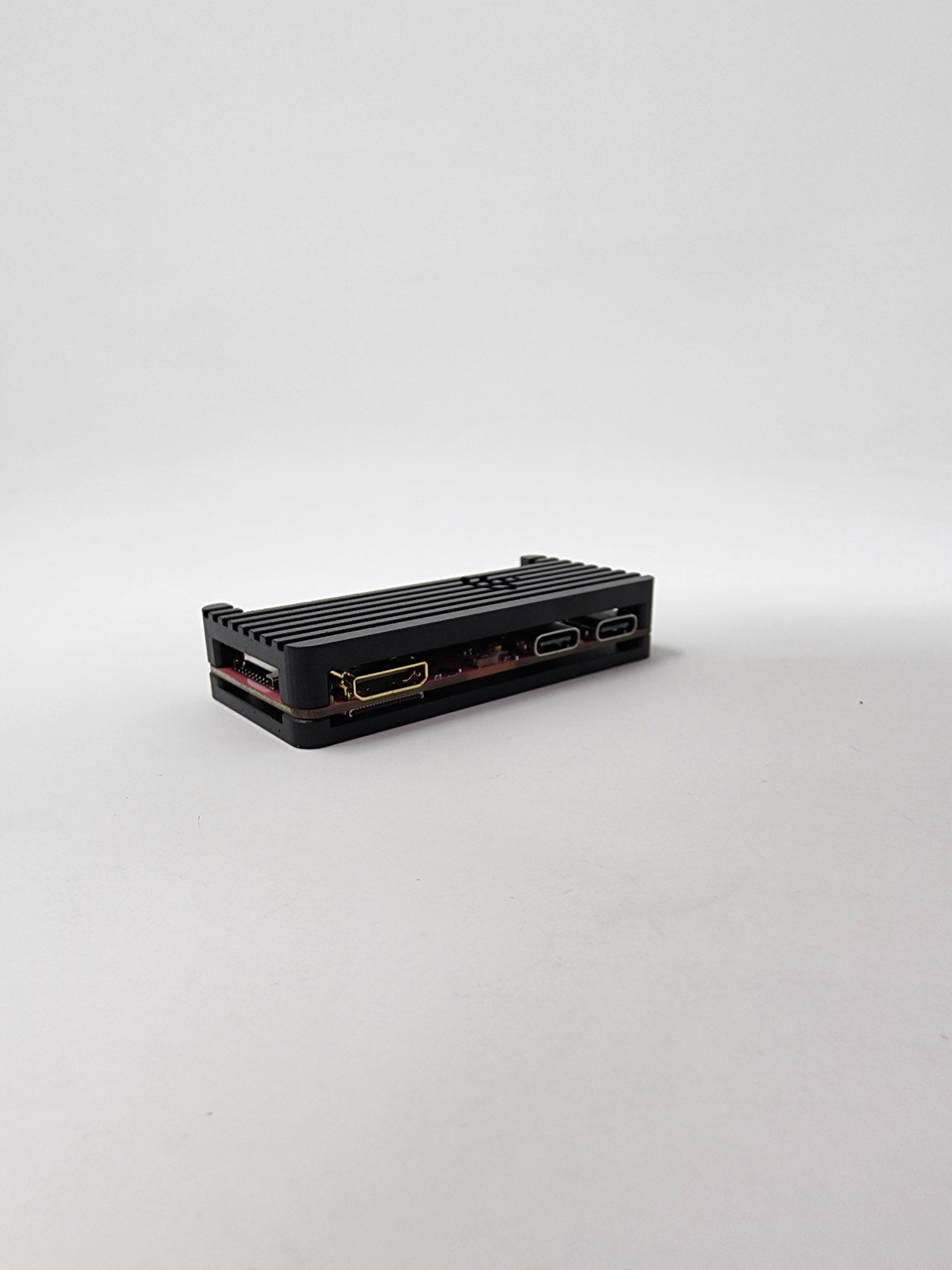

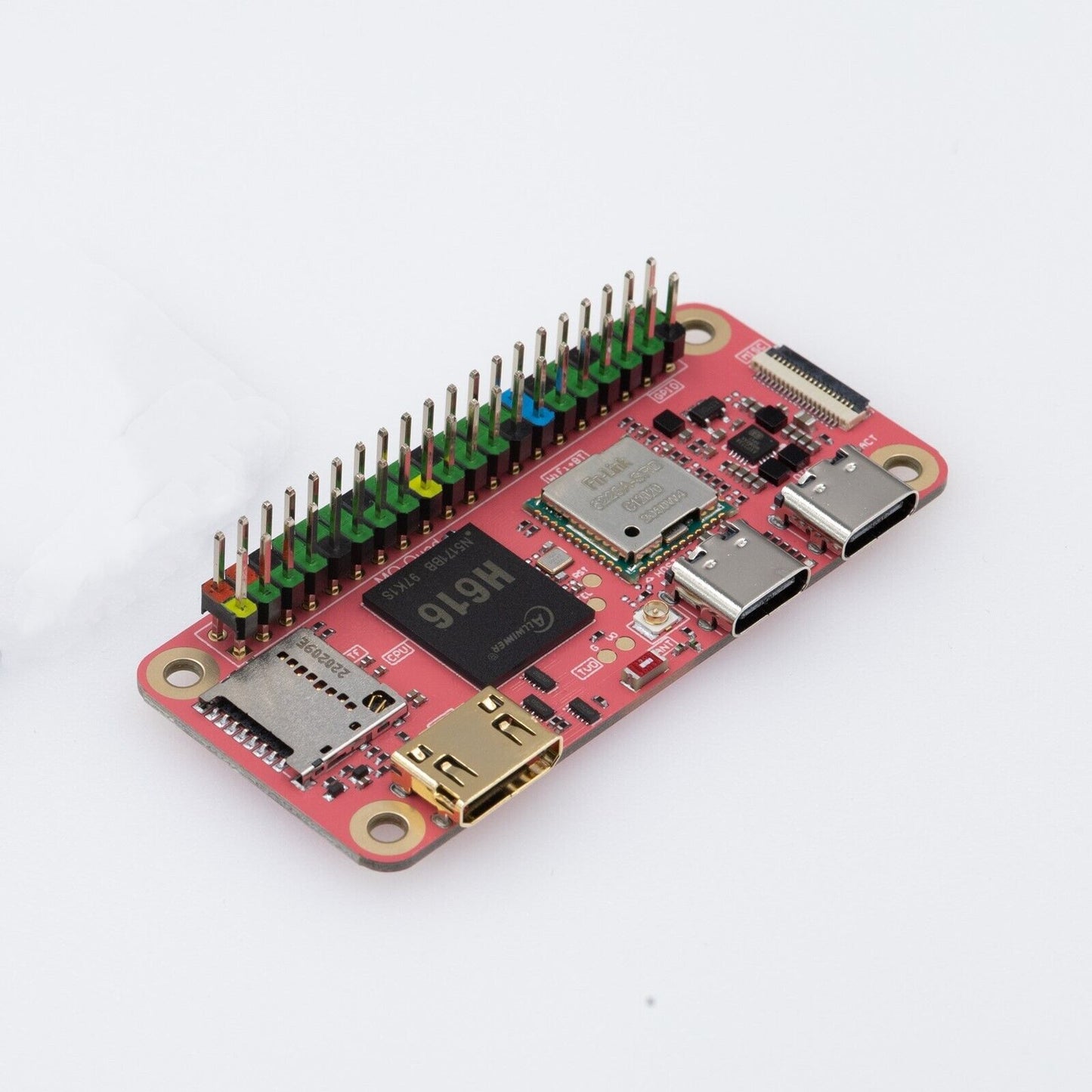

MangoPi MQ-QUAD (MPi-MQ1QH6) is an Allwinner H616 quad-core Cortex-A53 SBC that offers an alternative to Raspberry Pi Zero W with the same form factor, and most of the same features including WiFi/BT and DSI. It includes a full body Heatsink/Case to protect and keep the board cool.

SPECIFICATIONS

• SoC – Allwinner H616 quad-core Cortex-A53 @ 1.5GHz with Mali-G31 MP2 GPU with OpenGL 3.2, Vulkan 1.1, OpenCL 2.0 API support

• System Memory – 1GB DDR3L

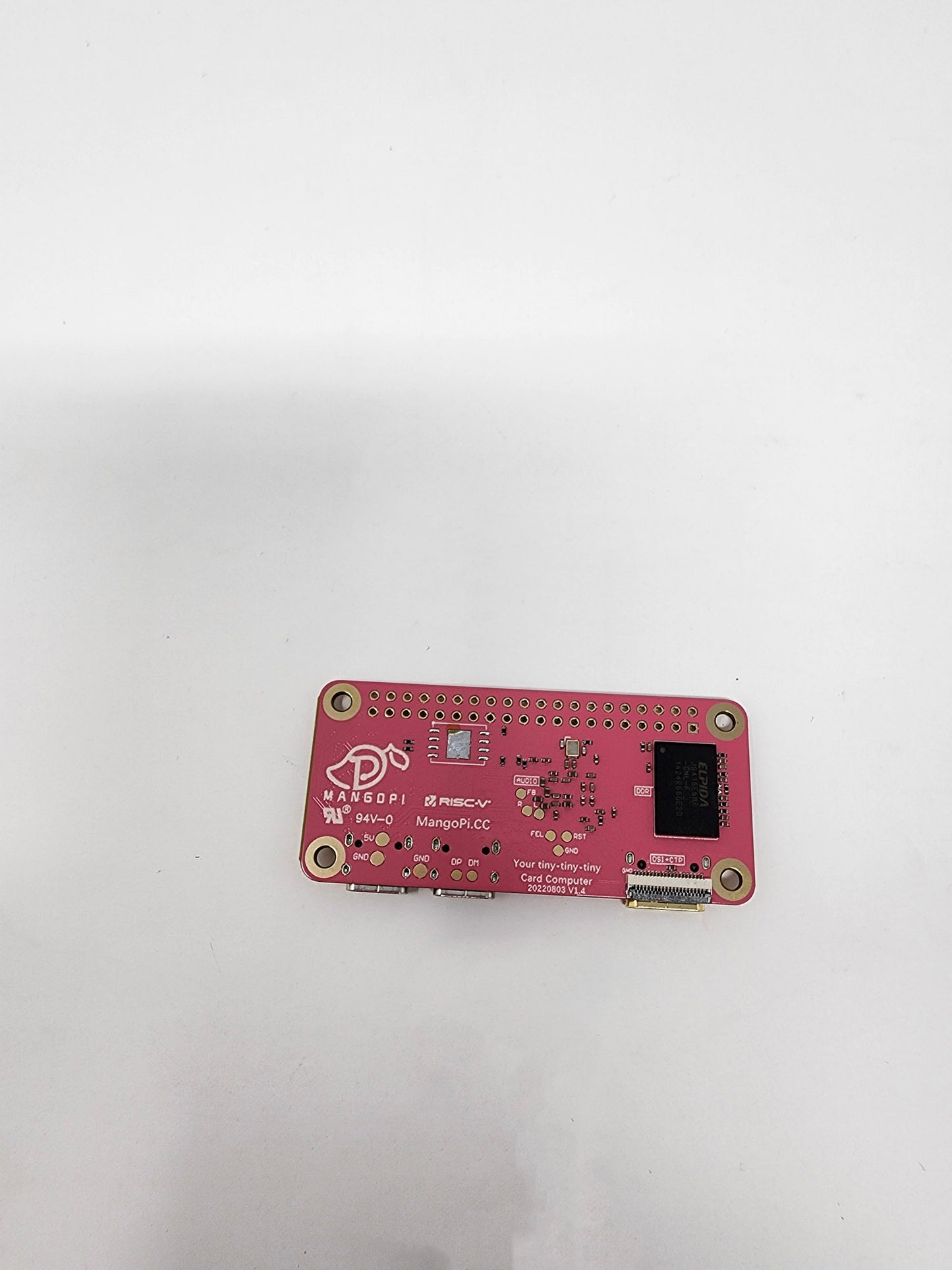

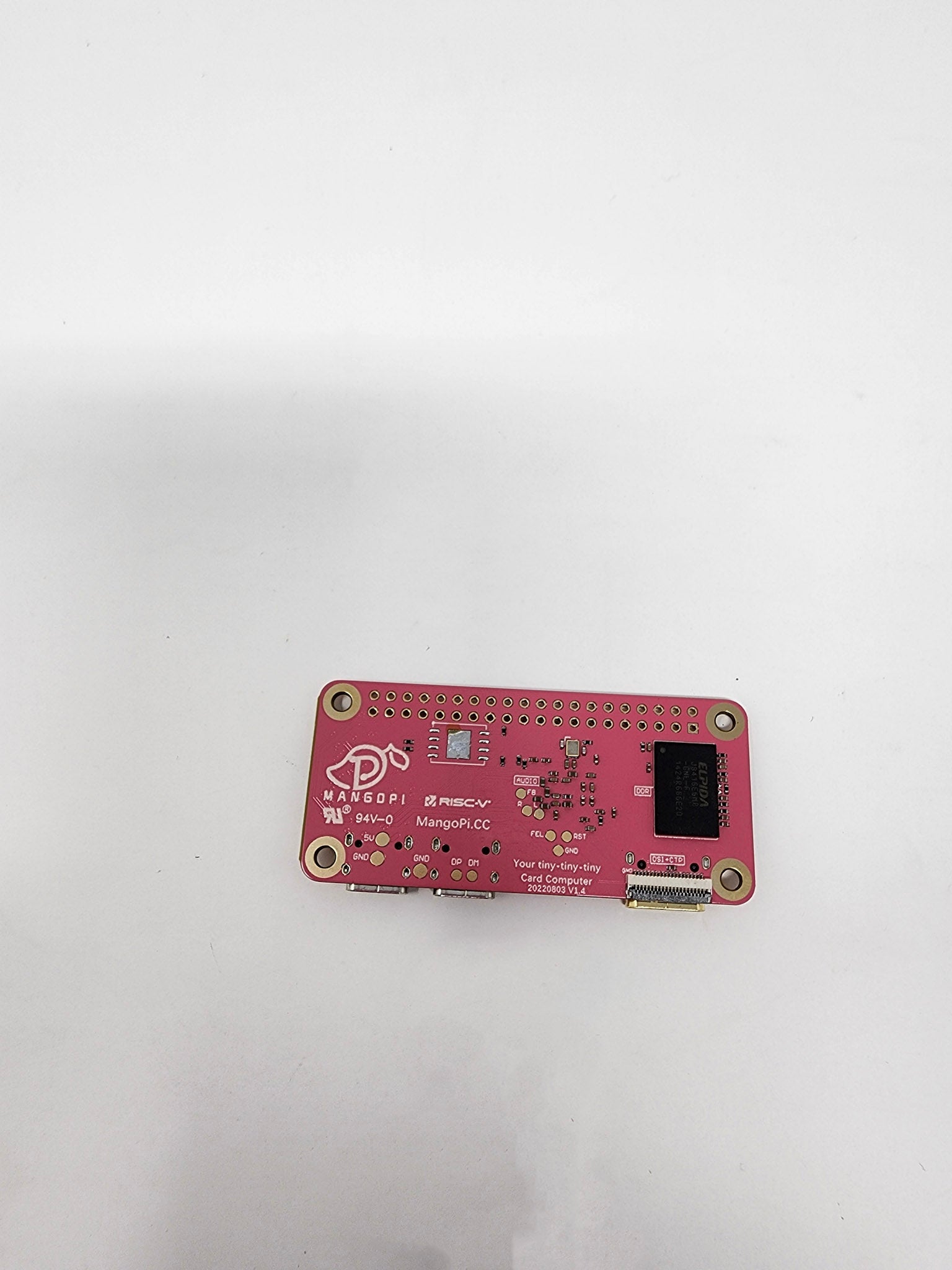

• Storage – MicroSD card slot, a footprint for SPI flash (on the bottom of the board)

• Video Output – Mini HDMI 2.0 port up to 4Kp60

• Connectivity – 802.11 b/g/n WiFi 4 and Bluetooth 4.2 via RTL8723DS; ceramic and u.FL antennas included

• USB – 2x USB Type-C ports (one OTG, one host)

• Expansion

  • 40-pin Raspberry Pi compatible, color-coded GPIO header

  • 18-pin MISC FPC connector with USB, Ethernet, GPIOs

• Power Supply

  • 5V via USB-C port

  • 5V via GPIO header and pogo pins

  • AXP313A PMIC

• Dimensions – 65x30mm

OPERATING SYSTEMS

• Debian (user:root, password: orangepi):
• XFCE
• Minimal
• Android10 TV


LINKS

• For more information visit MangoPi MQ-Quad page here.
